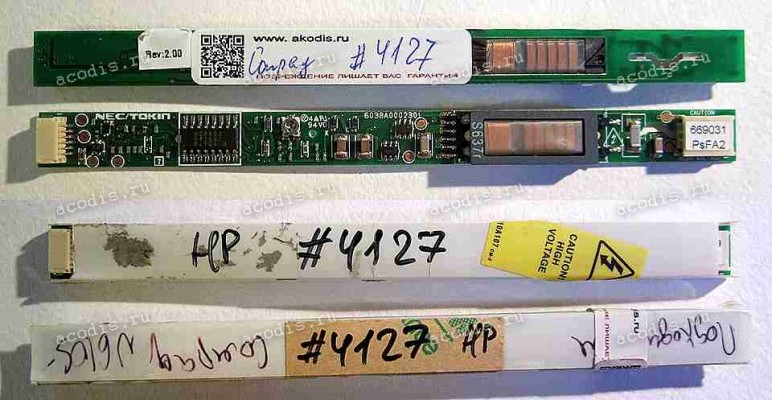

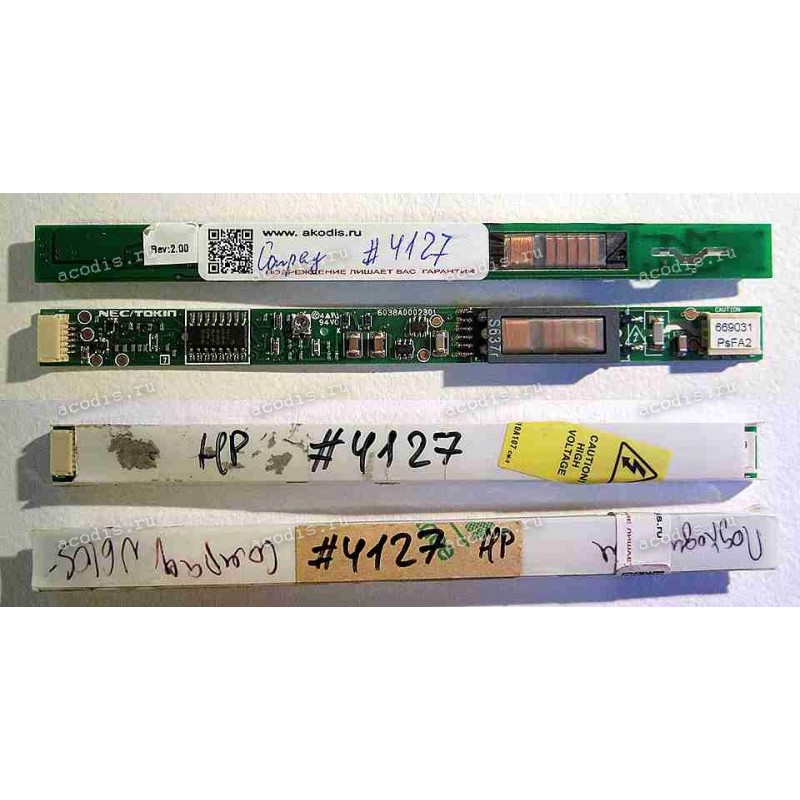

Inverter board HP/Compaq Compaq 2210b, nc4000, nc5000, nc6000, nc6120, nc6140, nc6310, nc6320, nc8000, nw8000, nx5000, nx6110, nx6120, nx6130, nx6320, nx6325, nx6330, nx8000, Evo n600c, n610c, n610v, n620c, Pavilion dv3000, Presario B1200, V1000 б/у
-
Артикул:00000004127
- 99999
- Состояние:С разбора
1 = BR (Bright, Dimming, DIM, BRIGH-ADJ, PWM)
2 = EN (ENA, EN_ON, Enable, Sleep, LIGHT-ON)
3 = GND ("-", Ground, VSS)
4 = GND ("-", Ground, VSS)
5 = VIN ("+", +19,5V, Vin, VIM, VBAT, VBATT, VCC, VDD)
6 = VIN ("+", +19,5V, Vin, VIM, VBAT, VBATT, VCC, VDD)
Аналоги
NEC/TOKIN D7301-B001-Z1-D
NEC/TOKIN D7311-B001-S1-0
TDK TBD281NR-1
XAD378NR
YEC YNV-09
YEC YNV-15
6038A0002301
6038B0011901
7311S1
invr-063
Chip QZ965C
Модели подходящих товаров
BenQ Joybook 5100
BenQ Joybook 5100G
BenQ Joybook 7100
HP/Compaq Compaq 2210b
HP/Compaq Compaq nc4000
HP/Compaq Compaq nc5000
HP/Compaq Compaq nc6000
HP/Compaq Compaq nc6120
HP/Compaq Compaq nc6140
HP/Compaq Compaq nc6310
HP/Compaq Compaq nc6320
HP/Compaq Compaq nc8000
HP/Compaq Compaq nw8000
HP/Compaq Compaq nx5000
HP/Compaq Compaq nx6110
HP/Compaq Compaq nx6120
HP/Compaq Compaq nx6130
HP/Compaq Compaq nx6320
HP/Compaq Compaq nx6325
HP/Compaq Compaq nx6330
HP/Compaq Compaq nx8000
HP/Compaq Compaq Evo n600c
HP/Compaq Compaq Evo n610c
HP/Compaq Compaq Evo n610v
HP/Compaq Compaq Evo n620c
HP/Compaq Pavilion dv3000
HP/Compaq Presario B1200
HP/Compaq Presario V1000
1 = BR (Bright, Dimming, DIM, BRIGH-ADJ, PWM)
2 = EN (ENA, EN_ON, Enable, Sleep, LIGHT-ON)
3 = GND ("-", Ground, VSS)
4 = GND ("-", Ground, VSS)
5 = VIN ("+", +19,5V, Vin, VIM, VBAT, VBATT, VCC, VDD)
6 = VIN ("+", +19,5V, Vin, VIM, VBAT, VBATT, VCC, VDD)
