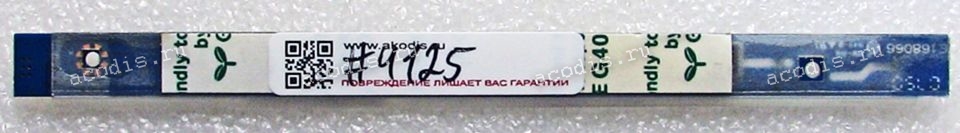

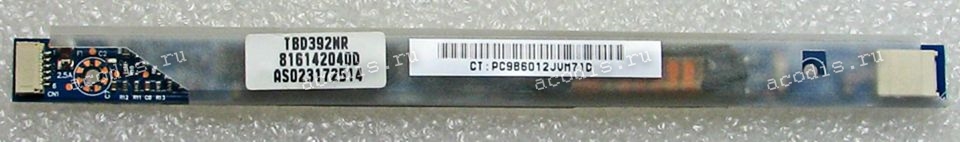

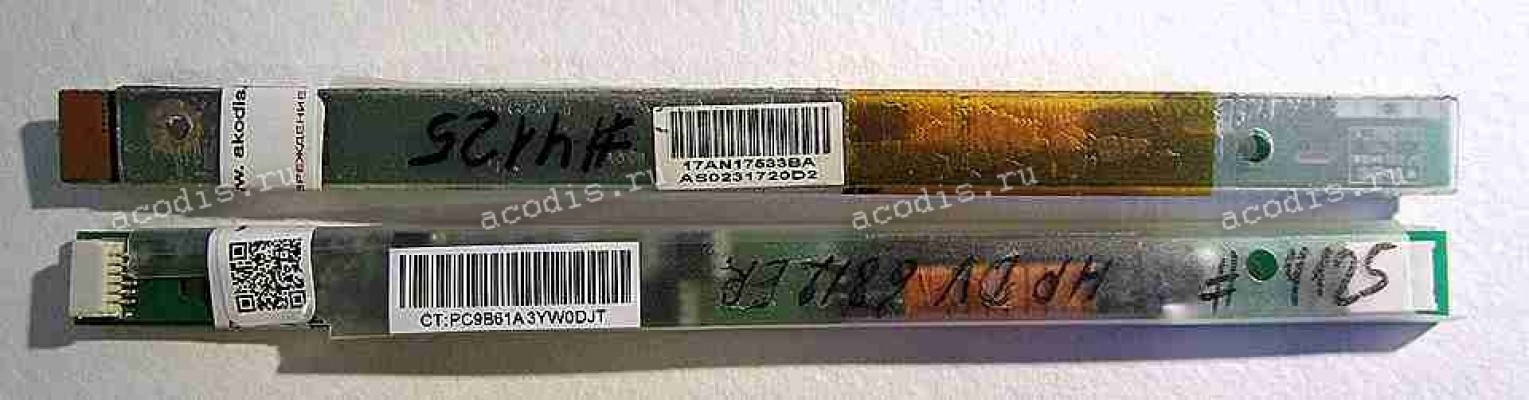

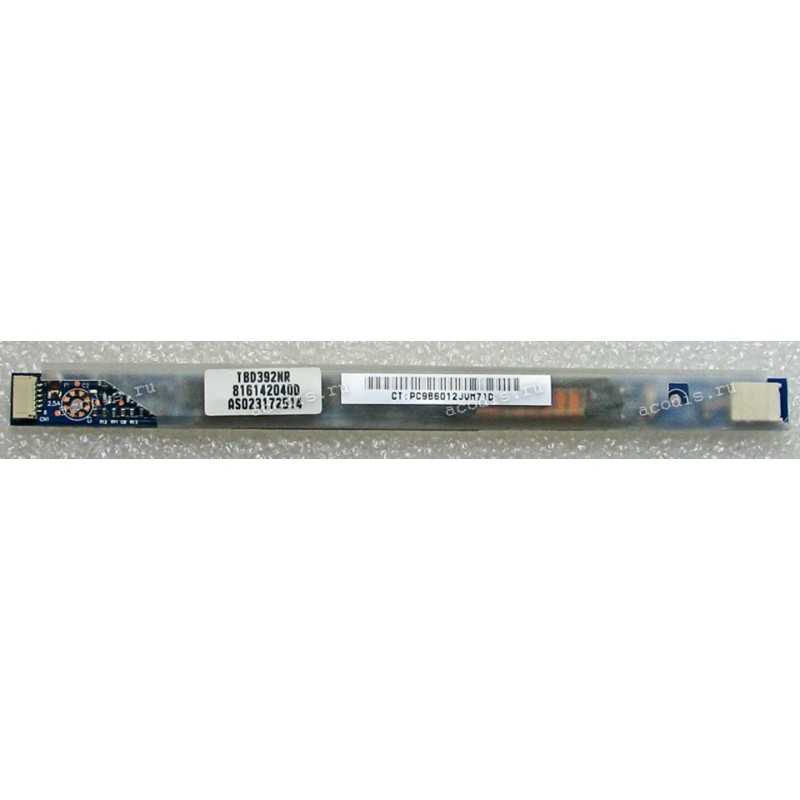

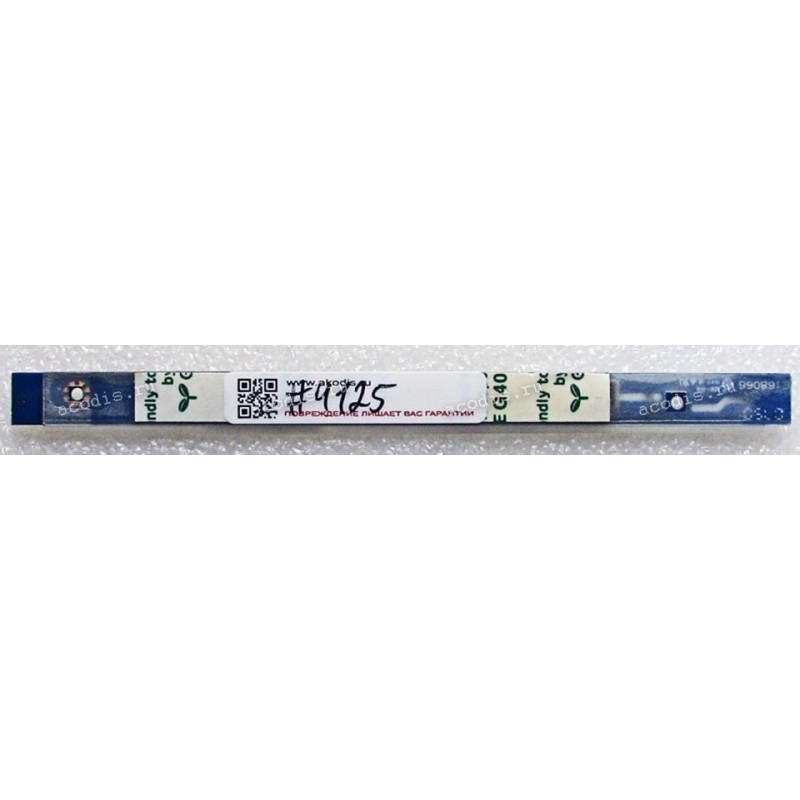

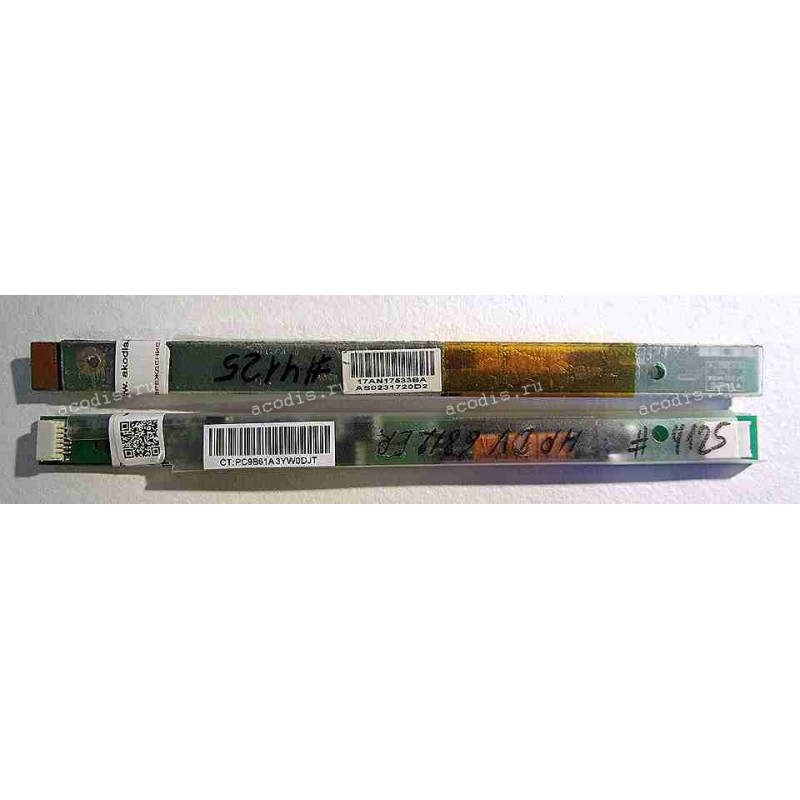

Inverter board HP/Compaq Pavilion dv6000, dv6500, dv6700, dv6800, dv6812er, dv9000, dv9500, Presario F500, F700, V6000, V6100, V6200, V6300, V6400 с разбора

Аналоги

2995300701

17AN17533BA

285316784AA

431391-001

716300307B

Ambit T18I083.00 LF

AS023152514

AS0231720D2

AS023172182

AS0231721C1

AS023172336

AS023172514

AS023172531

AS023216101

Delta DAC-08N010

Sumida PWB-IV10150T/J1-E-LF

TDK TBD420NR

Chip QZ9910AGN

Chip QZ9910GN

PC9B6004M

PC9B6012

PC9B61A3ZVWE5C

Модели подходящих товаров

HP/Compaq Pavilion dv6000

HP/Compaq Pavilion dv6500

HP/Compaq Pavilion dv6700

HP/Compaq Pavilion dv6800

HP/Compaq Pavilion dv6812er

HP/Compaq Pavilion dv9000

HP/Compaq Pavilion dv9500

HP/Compaq Presario F500

HP/Compaq Presario F700

HP/Compaq Presario V6000

HP/Compaq Presario V6100

HP/Compaq Presario V6200

HP/Compaq Presario V6300

HP/Compaq Presario V6400

1 = VIN ("+", +19,5V, Vin, VIM, VBAT, VBATT, VCC, VDD)

2 = NC (Not connected)

3 = EN (ENA, EN_ON, Enable, Sleep, LIGHT-ON)

4 = BR (Bright, Dimming, DIM, BRIGH-ADJ, BRADJ, PWM)

5 = GND ("-", Ground, VSS)

6 = NC (Not connected)
