АКБ Lenovo IdeaPad G460, G560, G565, G570, G575, G770, Z460, Z465, Z560, Z565, V360, V370, V470, B470, B470A, B470G, G460A, G460E, G460G, G465, G465A, G470, G470A, G470AH, G470G, G475, G475A, G475E, G475G, G475L, G560A, G560E, G560G, G560L, G565A, G565G,
- Производитель:
-
Артикул:00000024158
- 99999

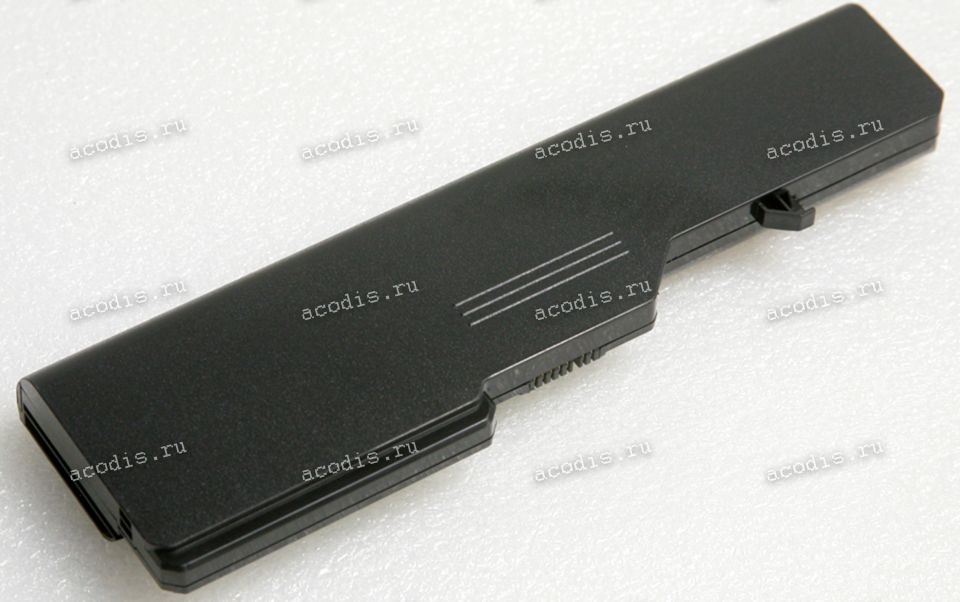

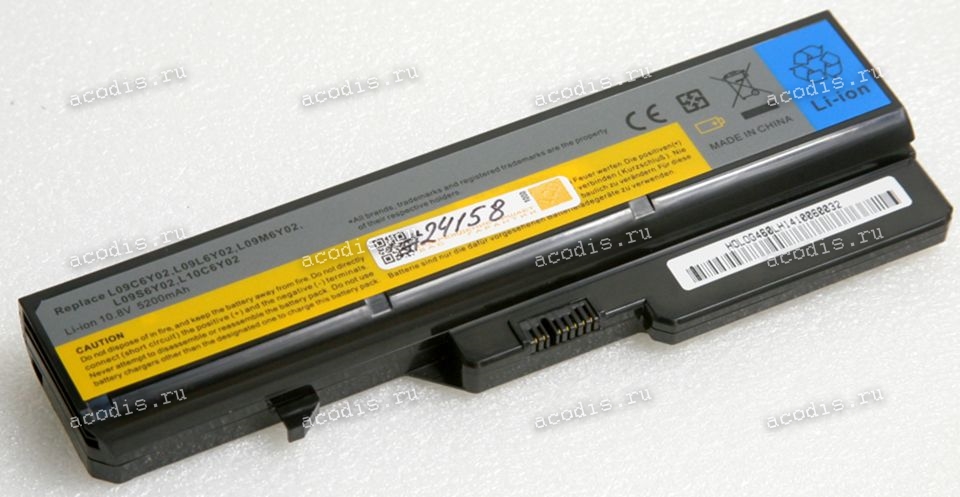

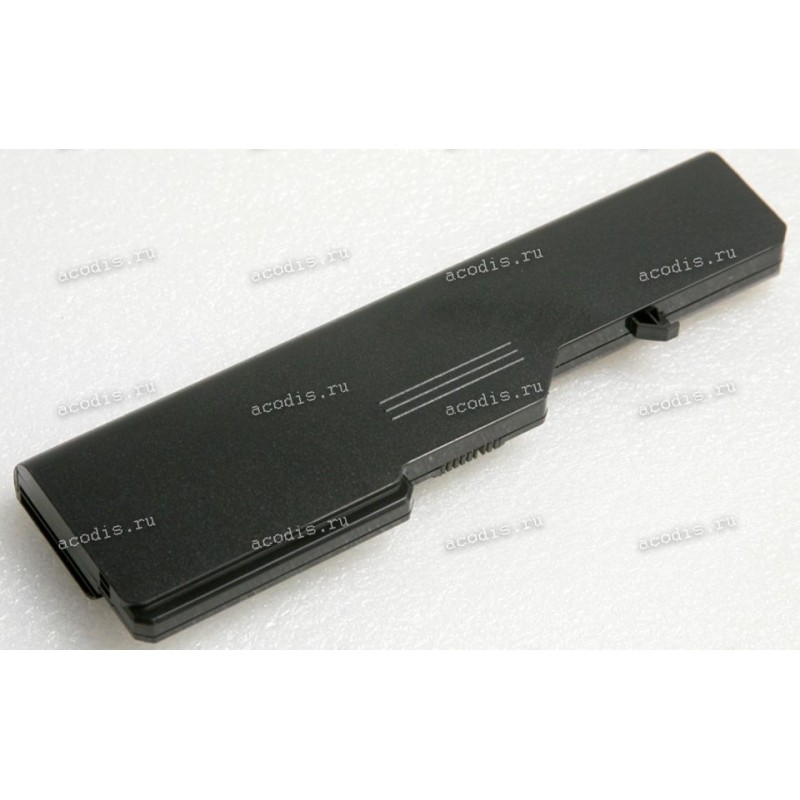

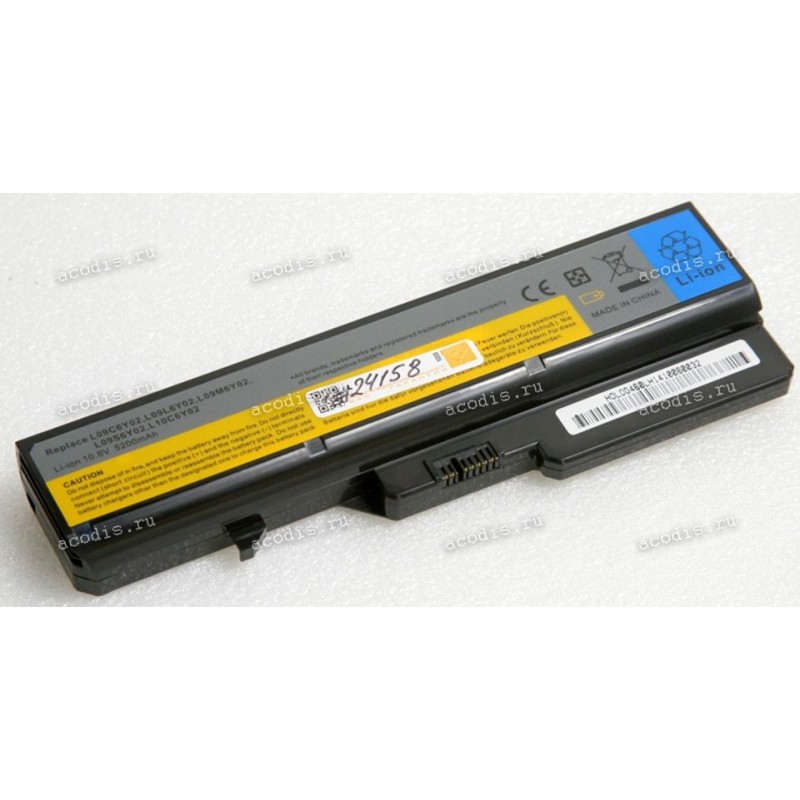

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo IdeaPad G460, G560, G565, G570, G575, G770, Z460, Z465, Z560, Z565, V360, V370, V470, B470, B470A, B470G, G460A, G460E, G460G, G465, G465A, G470, G470A, G470AH, G470G, G475, G475A, G475E, G475G, G475L, G560A, G560E, G560G, G560L, G565A, G565G, G565L, V360A, V360G, V370A, V370G, V370P, V470A, V470G, V470P, Z370, Z370A, Z370G, Z460A, Z460G, Z460M, Z465A, Z465G, Z470, Z470A, Z470AH, Z470G, B570, B570A, B570E, B570EA, B570G, B575, B575A, B575E, B575EG, B575G, G575A, G575AL, G575G, G570A, G570AH, G570G, G570GL, G710, G770A, G770G, G770GL, V570, V570A, V570C, V570CA, V570G, V570GL, Z560A, Z565A, Z570, Z575, Z570A, Z575A, G780, G780A, G780G 5200mAh (L09C6Y02, L09L6Y02, L09M6Y02, L09N6Y02, LO9L6Y02, LO9S6Y02, L10C6Y02, L10M6F21, L10P6F21) replace
Аналоги
Модели подходящих товаров
NEW
Распиновка = pinout
RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)
1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
X (3) = ключ, пластиковый пин, перегородка
3 (4) = SMBC, SLC (CLOCK pin) coffee/broun
4 (5) = SMBD, SDA (DATA pin) orange
5 (6) = BATT_TEMP, NTC, Termistor
6 (7) = GND ("-", Ground, VSS) black
7 (8) = GND ("-", Ground, VSS) black
