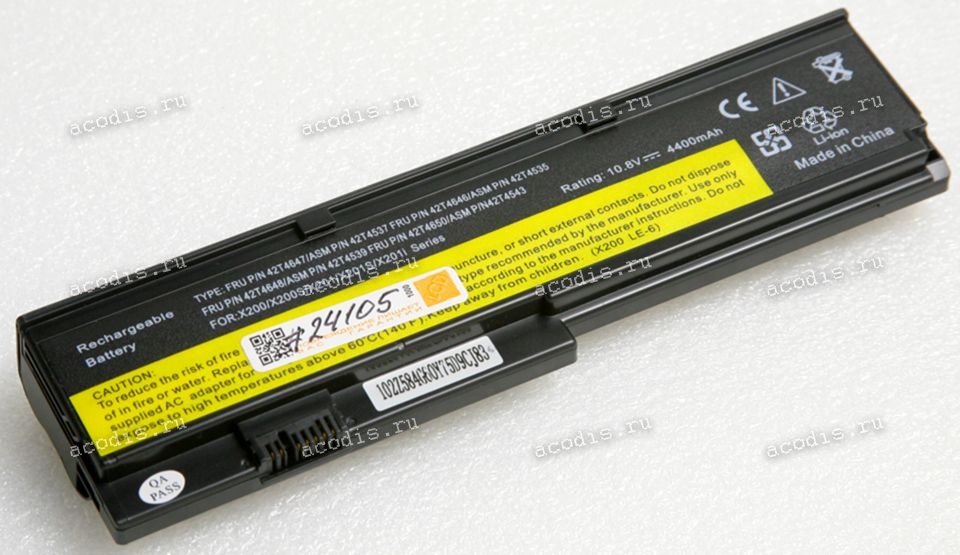

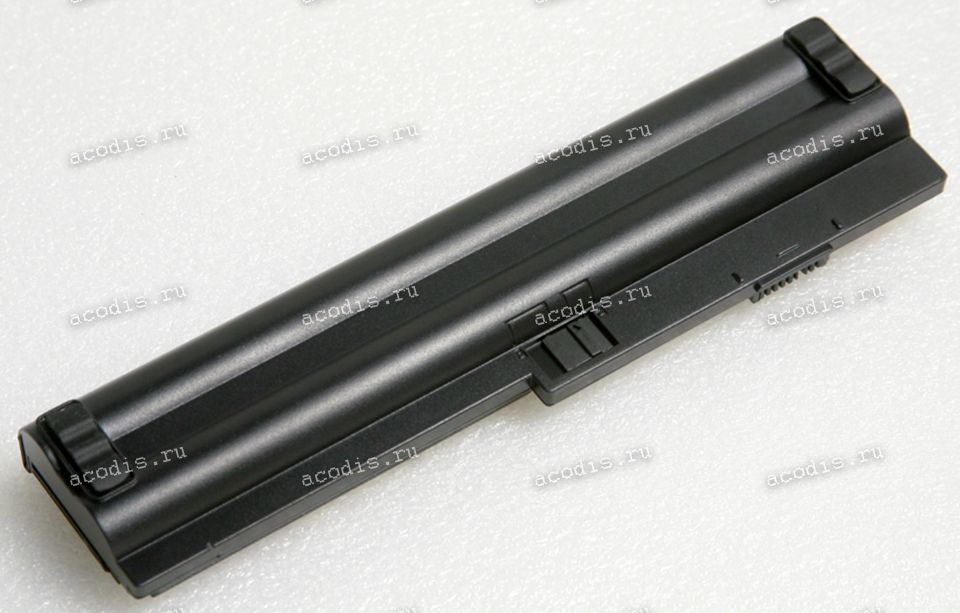

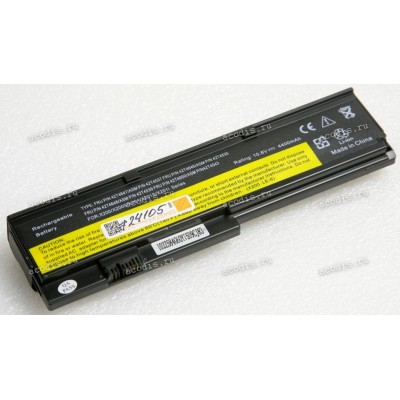

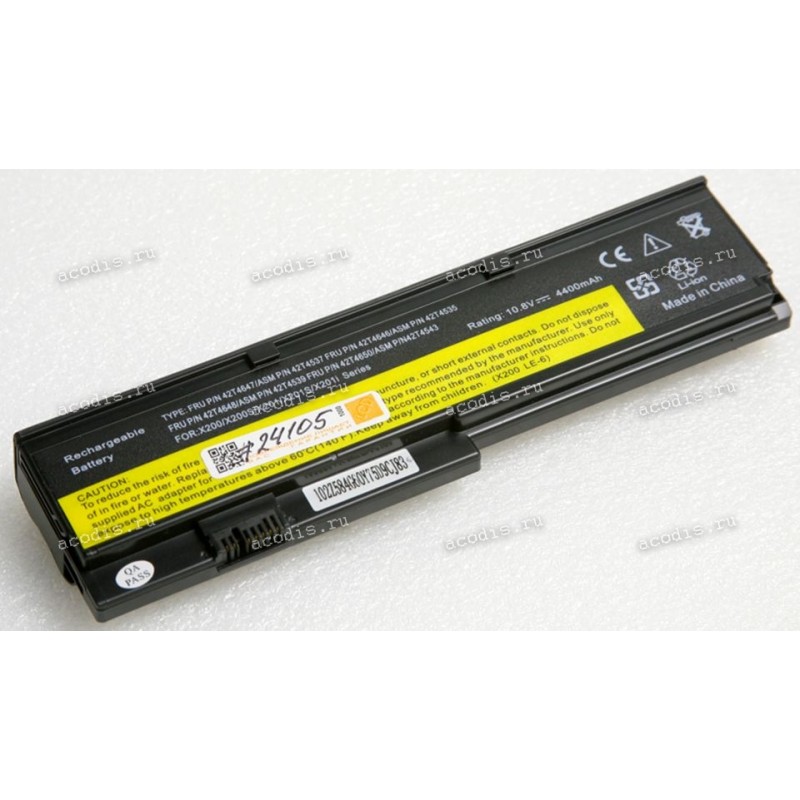

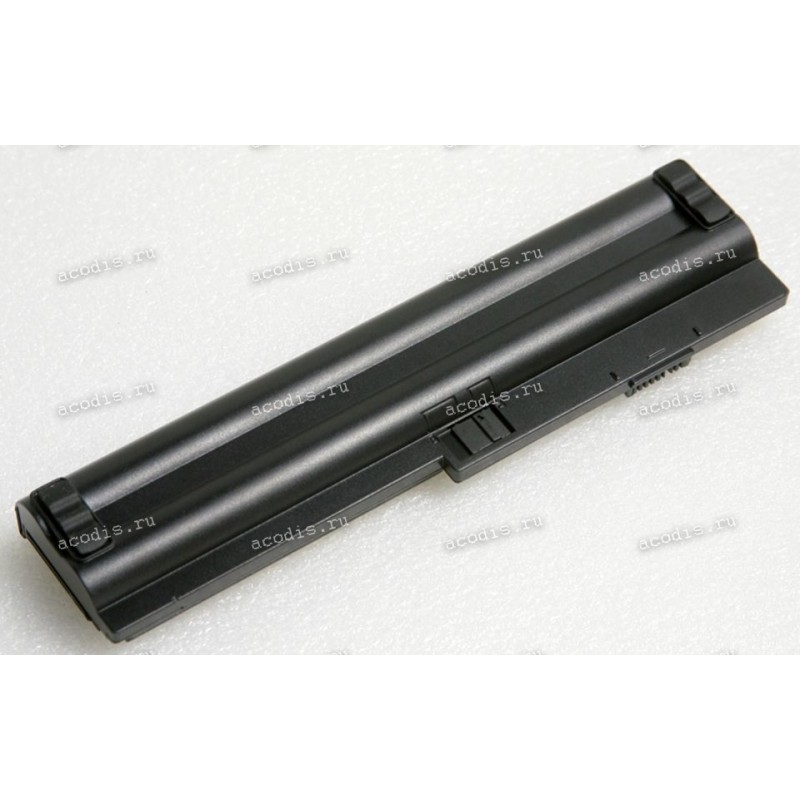

АКБ Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original
АКБ Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original

АКБ Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original

Артикул:
00000024105
Базовая цена
По запросу
-
+
В корзину!
Цена от 5 штук:
0
Наличие нет

Характеристики АКБ Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original

NEW

Распиновка = pinout

RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (3) = ключ, пластиковый пин, перегородка

3 (4) = SMBC, SLC (CLOCK pin) coffee/broun

4 (5) = SMBD, SDA (DATA pin) orange

5 (6) = BATT_TEMP, Termistor

6 (7) = GND ("-", Ground, VSS) black

7 (8) = GND ("-", Ground, VSS) black

Описание: АКБ Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo/IBM ThinkPad X200, ThinkPad X201 4400mAh (42T4647, 42T4537, 42T4543, 42T4646, 42T4647, 42T4694, 42T4823, 42T4825, 42T4837, 42T4534, 42T4537, 42T4538, 42T4648, 42T4650, 42T4696, 42T4834, 42T4835) non-original
