АКБ Fujitsu-Siemens Amilo 1405, 1424, 1437, 151G, 3438, 7405, 7424, 7425, 7440, A1640, A7640 7200mAh (255-3S4400-G1L1, 255-3S4400-S1S1, 3s4400-G1P3-02, 23-UG5C10-0A, 255-3S6600-F1P1, 23-UG5C1F-0A, 23VGF1F-4A, 805N00017, 255XX1, 259XX1, 23-VGF1F-4A, 23-UG5
- Производитель:
-
Артикул:00000023978
- 99999

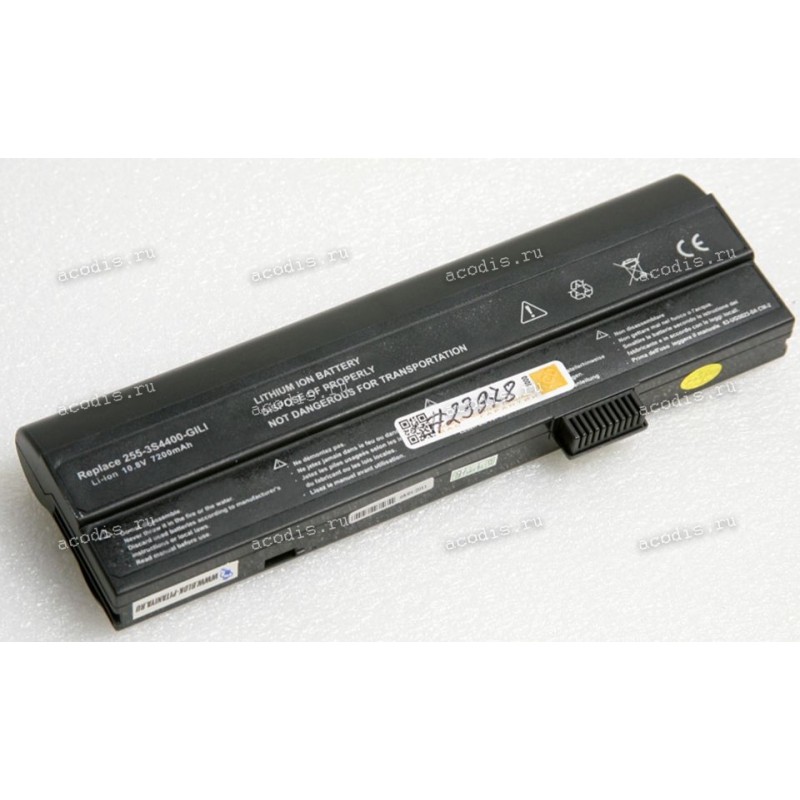

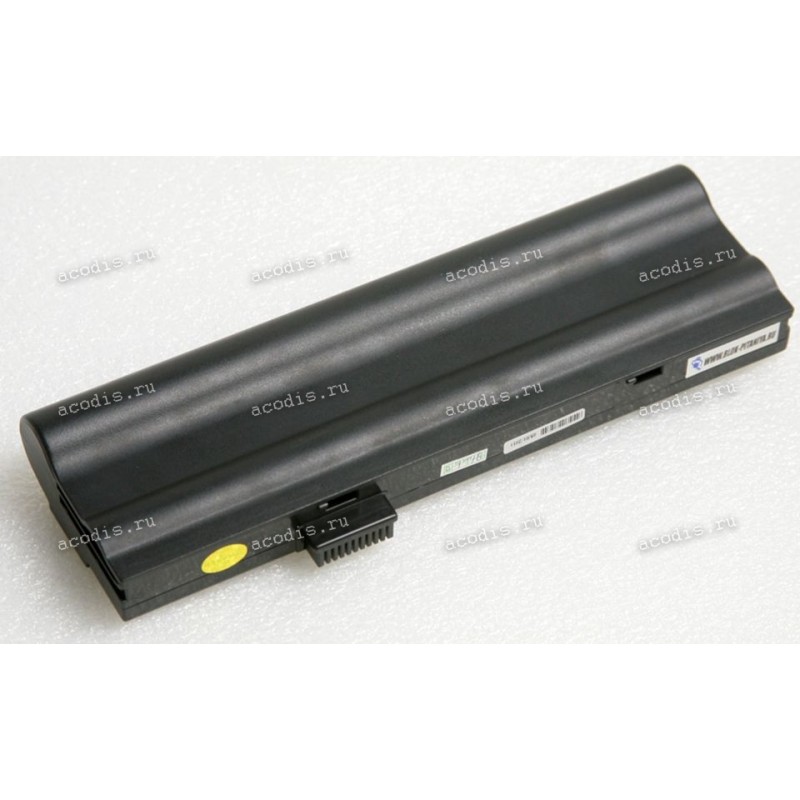

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Fujitsu-Siemens Amilo 1405, 1424, 1437, 151G, 3438, 7405, 7424, 7425, 7440, A1640, A7640 7200mAh (255-3S4400-G1L1, 255-3S4400-S1S1, 3s4400-G1P3-02, 23-UG5C10-0A, 255-3S6600-F1P1, 23-UG5C1F-0A, 23VGF1F-4A, 805N00017, 255XX1, 259XX1, 23-VGF1F-4A, 23-UG5C40-1A, 23-UG5C10-0A, 63-UG5023-6A, 63-UK6021-1A, 3S4400-S1P3-02, 3S6600-S1S1-02, 805N00033, 63-UG5023-0A, 63-UG5023-3A) replace
Аналоги
Модели подходящих товаров
NEW
Распиновка = pinout
RF-20-10 (RFNT3) = CON1 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)
1 = GND ("-", Ground, VSS) black
2 = BATT_TEMP, NTC, Termistor
3 =
4 =
5 =
6 = SMBD, SDA (DATA pin) orange
7 = SMBC, SLC (CLOCK pin) coffee/broun
8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
9 =
10=
