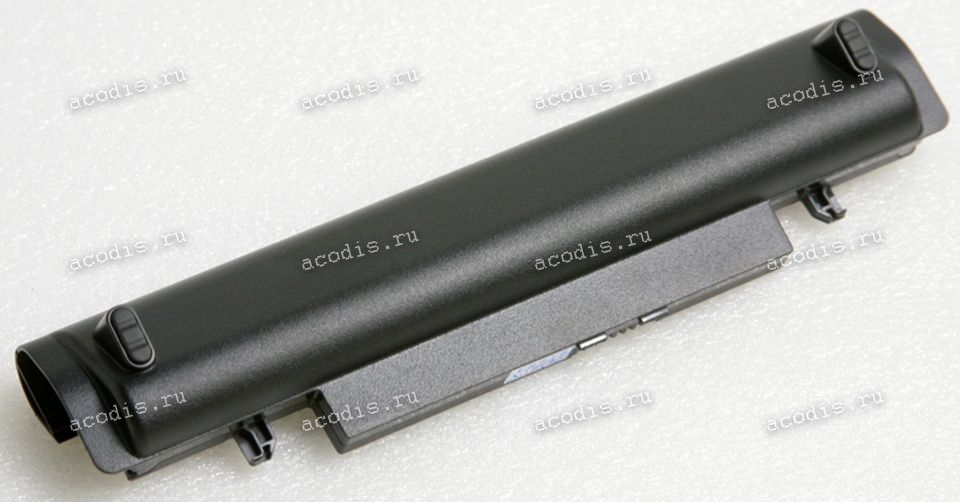

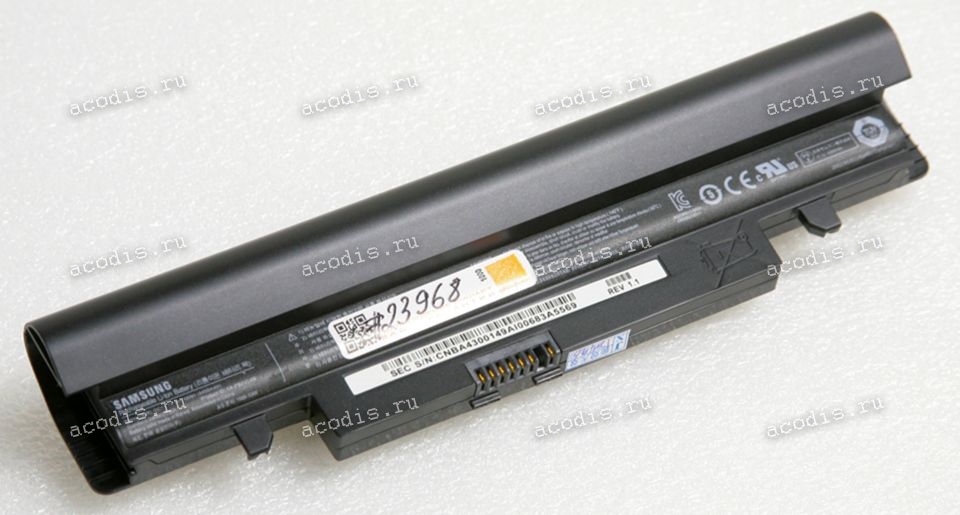

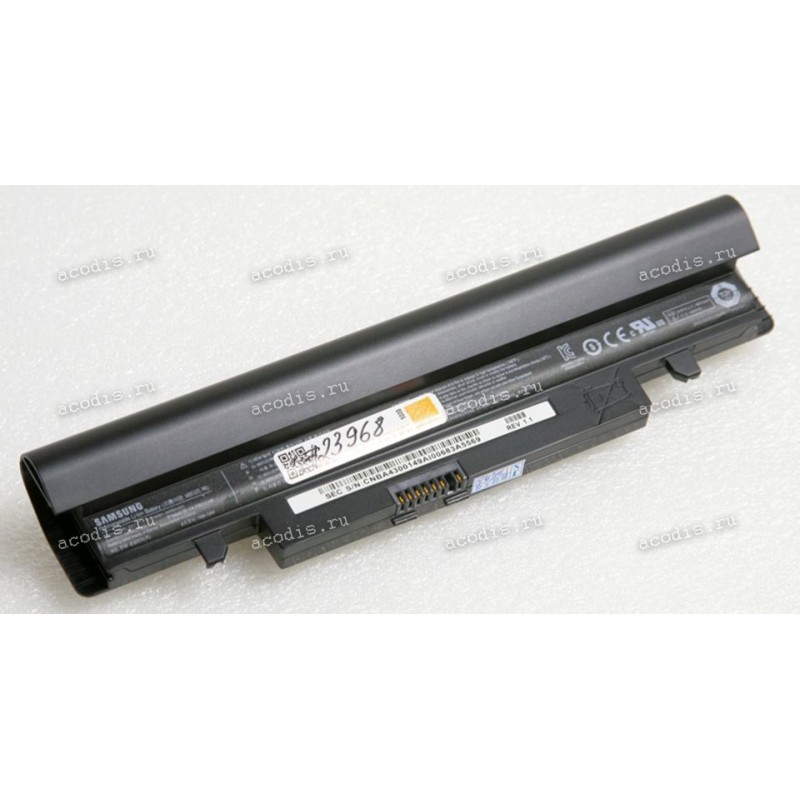

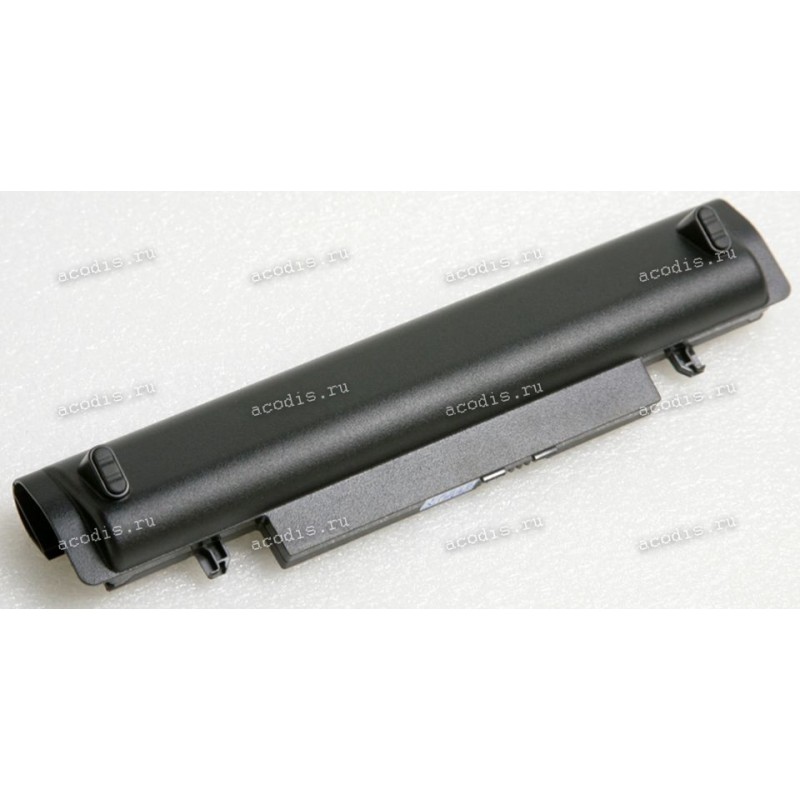

АКБ Samsung NP-N100, N102, N143, N145, N148, N150, N230, N250, N260, N350 48 Wh (AA-PB2VC3B, AA-PB2VC6B, AA-PB2VC6W, AA-PB2VC6B/E, AA-PL2VC6B, AA-PL2VC6W, AA-PBAN3EB)
Артикул:
00000023968
Базовая цена
| - |
|
+ |
Цена от 5 штук:
950
Наличие мало
Характеристики АКБ Samsung NP-N100, N102, N143, N145, N148, N150, N230, N250, N260, N350 48 Wh (AA-PB2VC3B, AA-PB2VC6B, AA-PB2VC6W, AA-PB2VC6B/E, AA-PL2VC6B, AA-PL2VC6W, AA-PBAN3EB)
NEW
Распиновка = pinout RF-25-8 (RFNT3) = CON31 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо) 1 (1) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red 2 (2) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red 3 (3) = SMBC, SLC (CLOCK pin) coffee/broun 4 (4) = SMBD, SDA (DATA pin) orange 5 (5) = BATT_TEMP, Termistor 6 (6) = GND ("-", Ground, VSS) black !!! (7) = ключ, пластиковый пин, перегородка 7 (8) = GND ("-", Ground, VSS) black |
Описание: АКБ Samsung NP-N100, N102, N143, N145, N148, N150, N230, N250, N260, N350 48 Wh (AA-PB2VC3B, AA-PB2VC6B, AA-PB2VC6W, AA-PB2VC6B/E, AA-PL2VC6B, AA-PL2VC6W, AA-PBAN3EB)
Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Samsung NP-N100, N102, N143, N145, N148, N150, N230, N250, N260, N350 48 Wh (AA-PB2VC3B, AA-PB2VC6B, AA-PB2VC6W, AA-PB2VC6B/E, AA-PL2VC6B, AA-PL2VC6W, AA-PBAN3EB)
