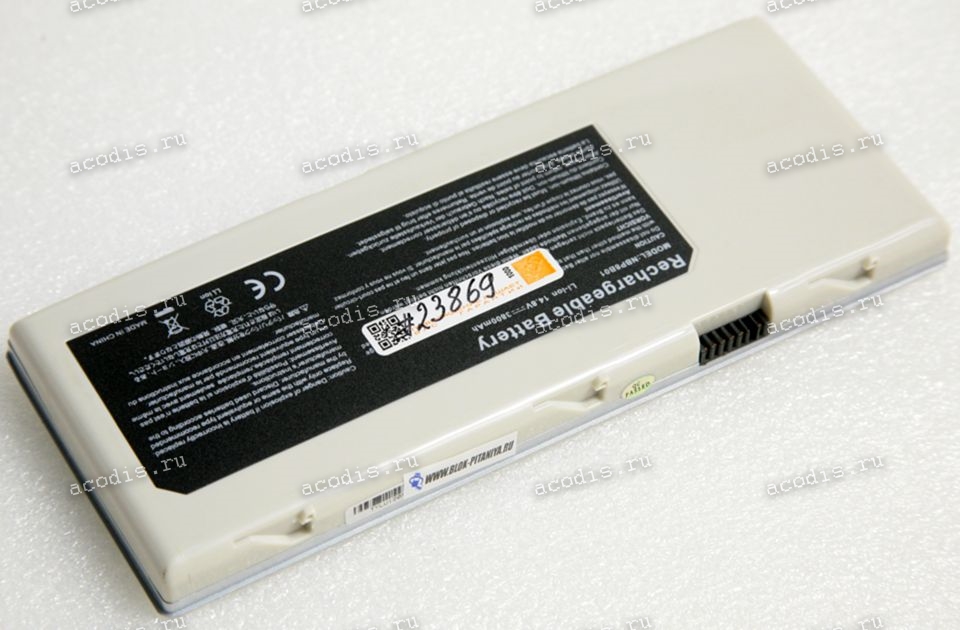

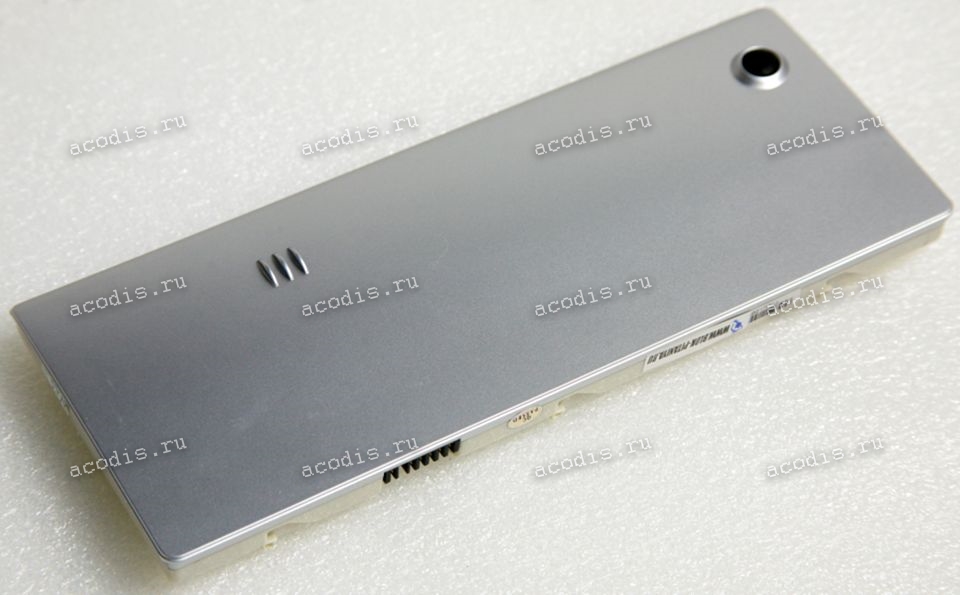

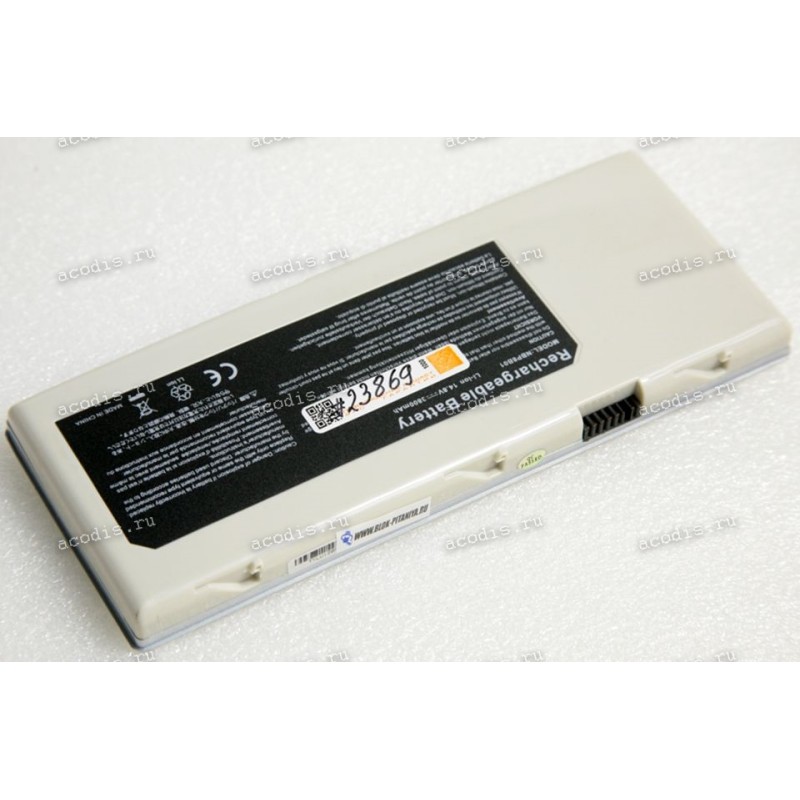

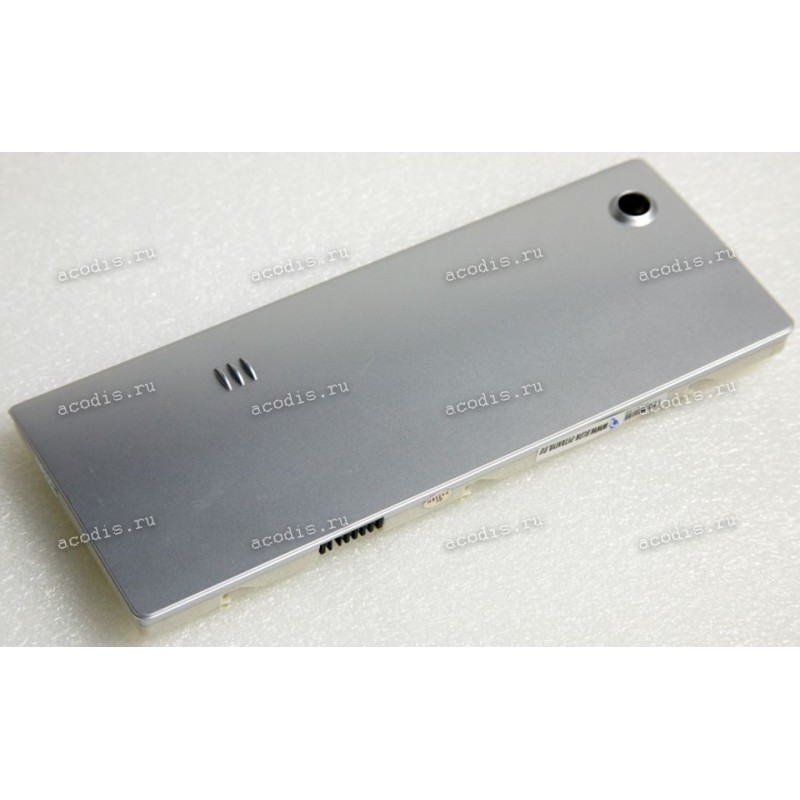

АКБ ECS NBP-8B01, EM-520C1, EM-520P4G, EM520P4G 3800mAh (NBP8B01) серебристый, non-original

NEW

Распиновка = pinout

RF-25- (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = SMBC, SLC (CLOCK pin) coffee/broun

3 = SMBD, SDA (DATA pin) orange

4 = BATT_TEMP, NTC, Termistor

5 = GND ("-", Ground, VSS) black

6 (7) = X (6) = ключ, пластиковый пин, перегородка

7 (8) = GND ("-", Ground, VSS) black

Аналоги

EM-520, EM-520C1, EM-520P4G, EM520P4G, LT-BA-GN551, NBP-8B01, PA-WH-099, EM-520P3G CS-ECA530NB EM-520C1 EM-520P1G EM-520P4G L103450-8EGB L103450-8EGS NBP-8B01 PA-BL-046

Модели подходящих товаров

M536SZX-536ZX-550ZX-5360ZX-5361-AZX-5362ZX-5501ZX-5531ZX-5532ZX-5570ZX-5572ZX-5580G550ECS A530HYPERDATA G551Green 552ECS A531HYPERDATA G550Green 551ECS A532HYPERDATA 5510Green 550ECS A535STAMP G550G552 ECS A535+SUPER TALENT G552G551ECS G550SUPER TALENT G551COMPUTEK DesigNote G550ECS G551SUPER TALENT G550ECS Green G550ECS G552SUPER TALENT DM-G552-BECS Green G551ECS Green 550SUPER TALENT DM-G551-BECS Green G552EXCEL SlimNote G550SUPER TALENT DM-G550-BECS Precision 2000SlimNote G550SlimNote G551VIDEOSEVEN (V7) MW Merkur Cent (G551)ECS i-Buddie A530GERICOM Overdose XL Per4mance G550VIKINGS ProNote G550-MECS i-Buddie A531GERICOM Overdose Radeon MC G551ECS i-Buddie A532GERICOM Overdose Radeon 9600YAKUMO EG551ECS i-Buddie A535GERICOM G553 EM-520C1, EM-520P4G для ноутбука ECS / Elitegroup i-Buddie A530, A531, A532, A535, Green G550, G551, G552, G553, G556, Precision 2000, iRU Stilo 1214, 1514, 1714, 1715, 3215, 6414, 6415, 6514, Navigator E510, E511, E513, M511, Partner E510, Voyager B510, B512, B514, E510, E511, D550
