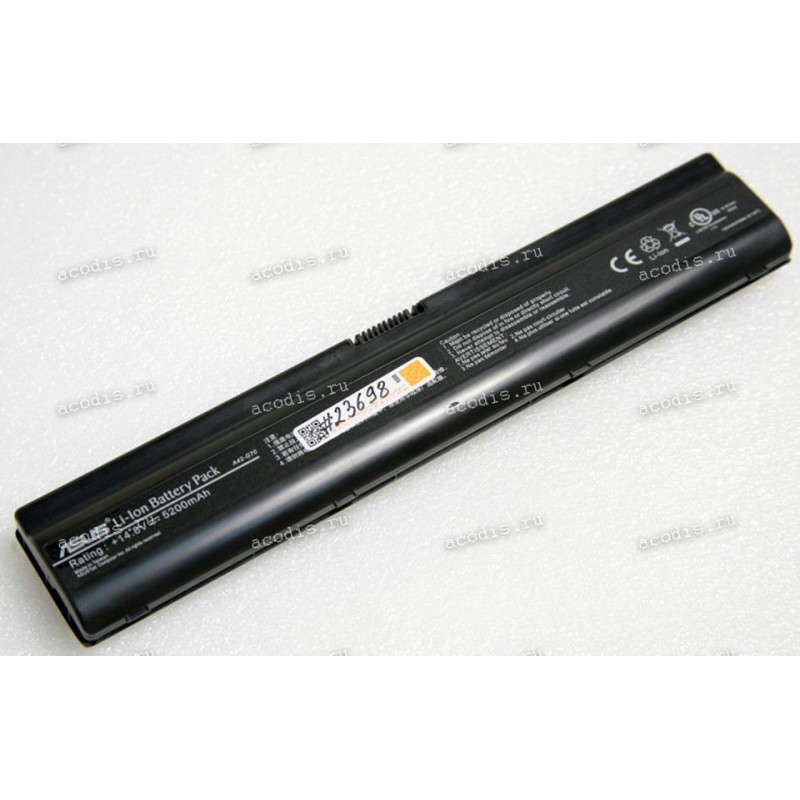

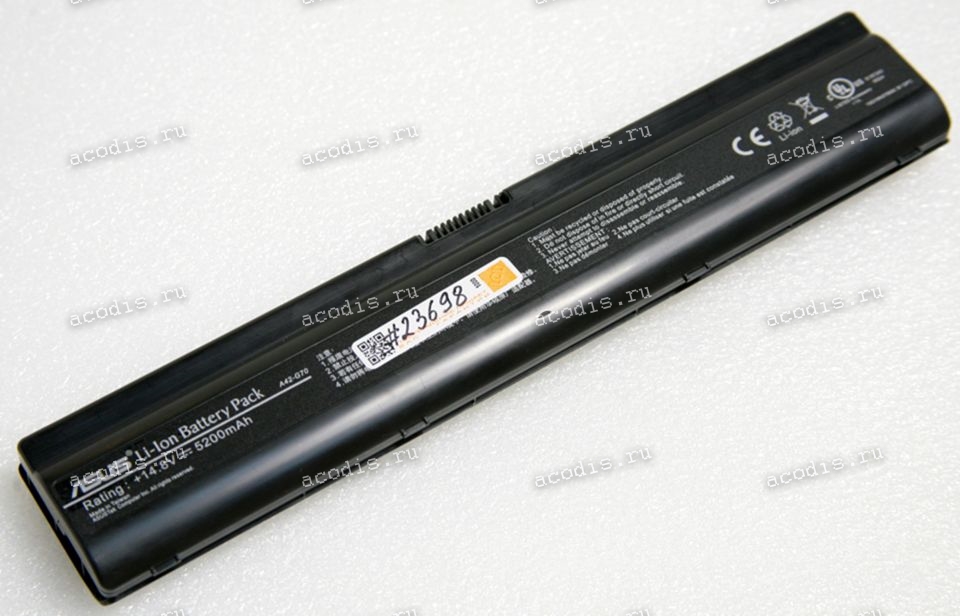

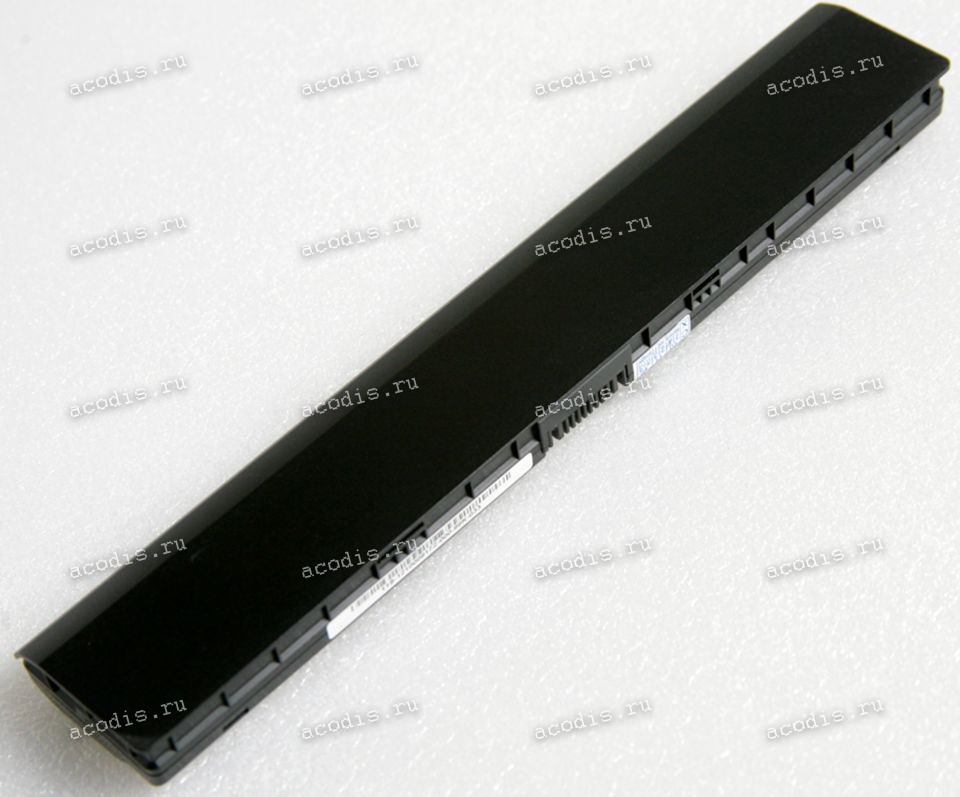

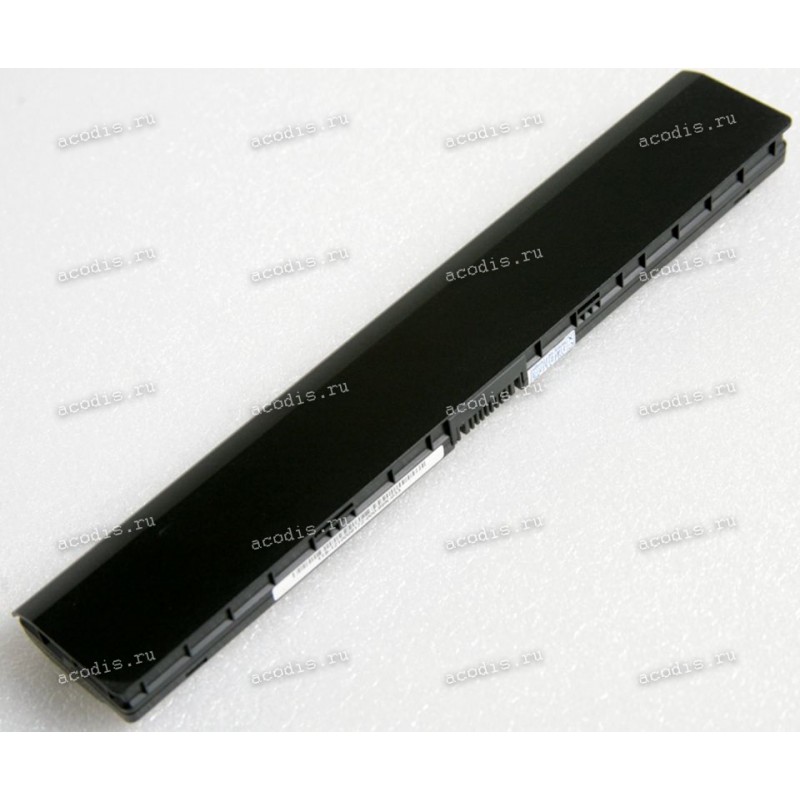

АКБ Asus G70 A42-G70 5200mAh

NEW

Распиновка = pinout

RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = GND ("-", Ground, VSS) black

2 = GND ("-", Ground, VSS) black

3 = BATT_TEMP, Termistor

4 = SMBD, SDA (DATA pin) orange

5 = SMBC, SLC (CLOCK pin) coffee/broun

6 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

7 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
