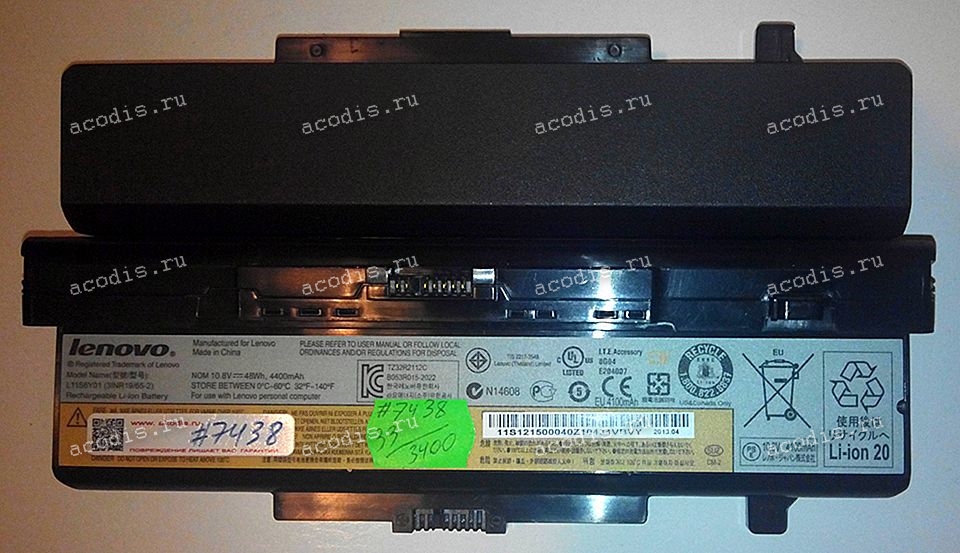

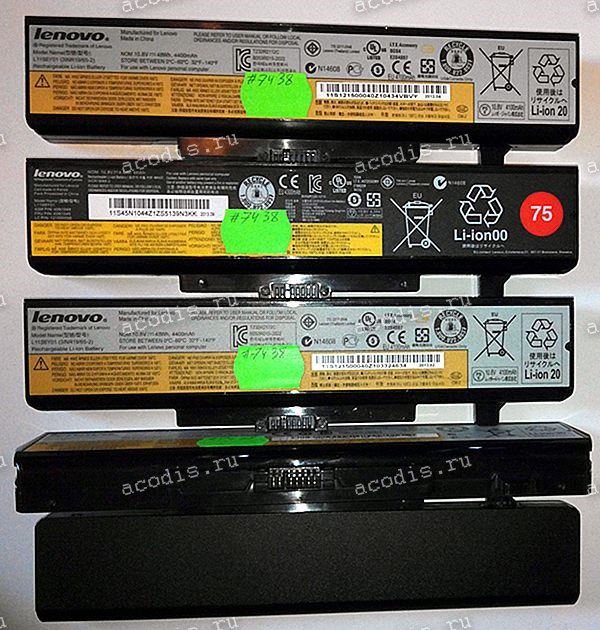

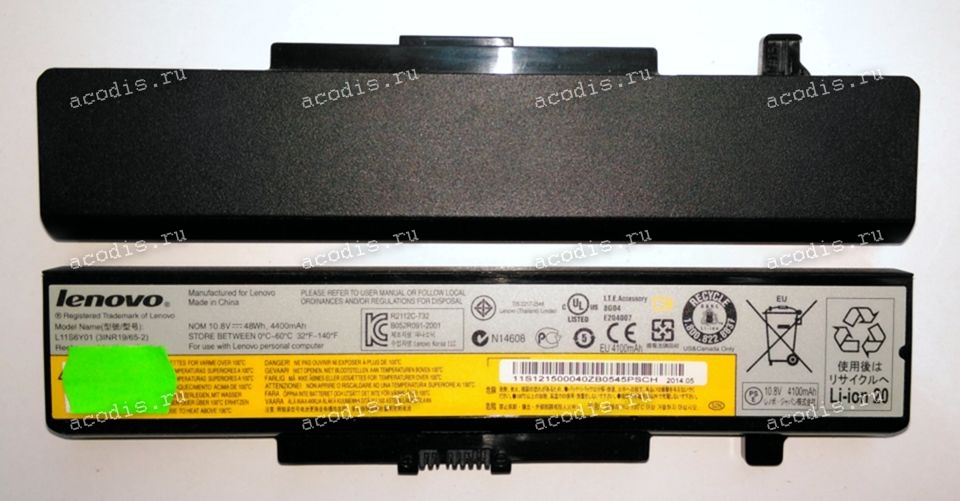

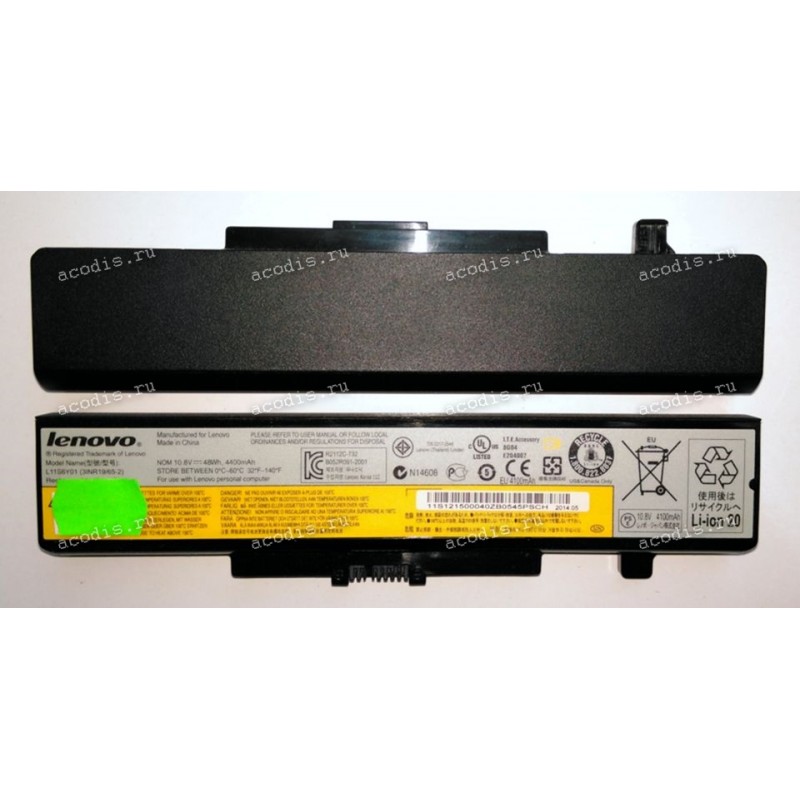

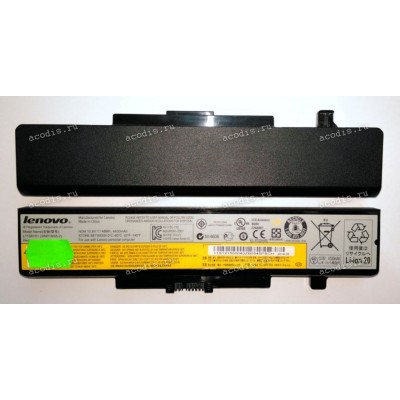

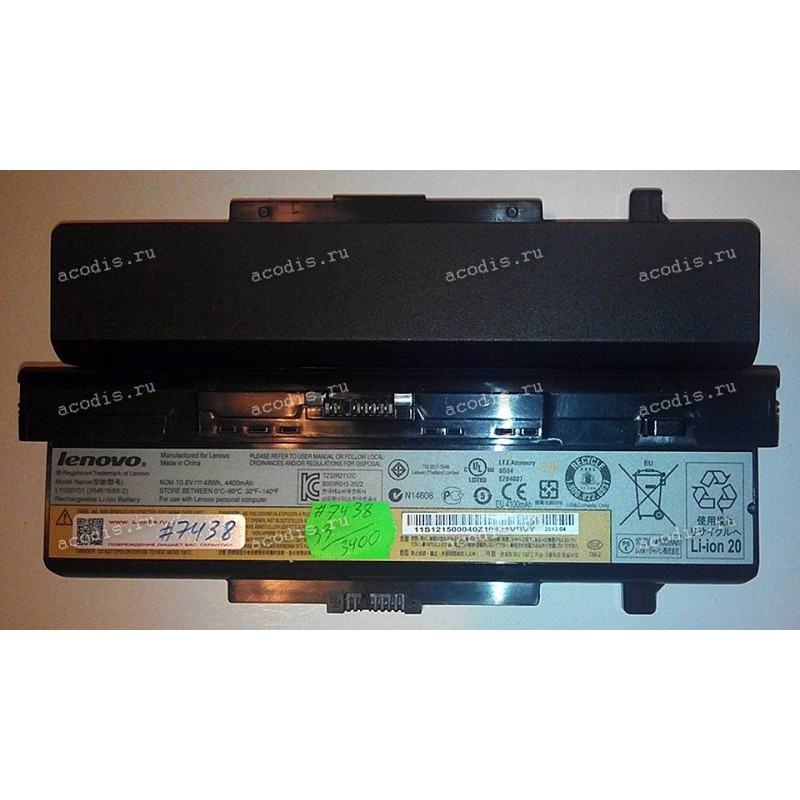

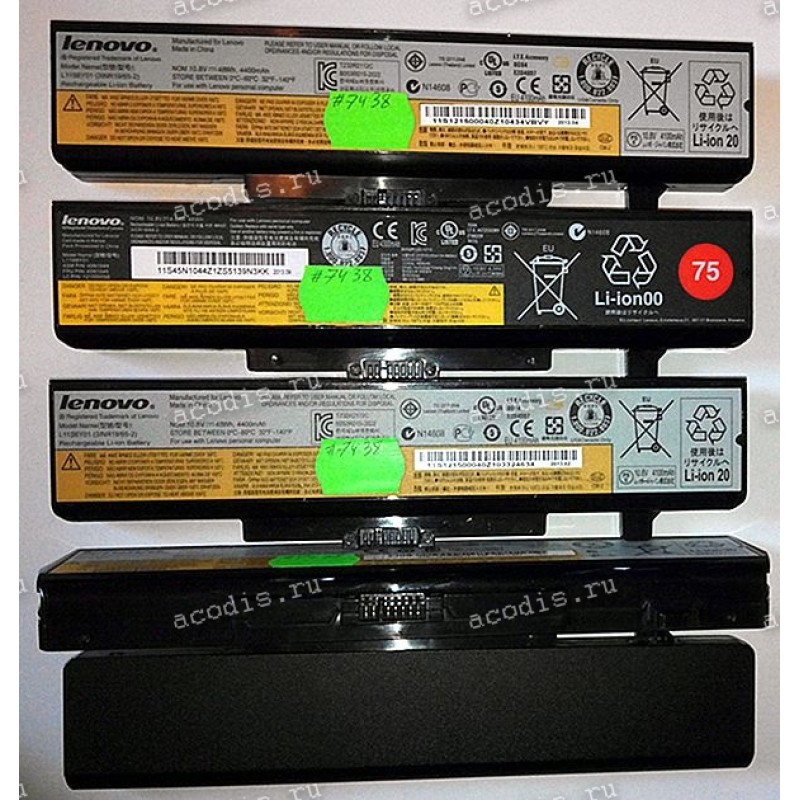

АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 %
АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 % АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 %

АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 %

Артикул:
00000013627
Базовая цена
650 р.
-
+
В корзину!
Цена от 5 штук:
600
Наличие ДА

Характеристики АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 %

Из разобранных аппаратов

Распиновка = pinout

RF-25-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (2) = ключ, пластиковый пин, перегородка

2 (3) =

3 (4) = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

4 (5) = BATT_TEMP, Termistor

5 (6) = SMBD, SDA (DATA pin) orange

6 (7) = SMBC, SLC (CLOCK pin) coffee/broun

7 (8) = GND ("-", Ground, VSS) black

Описание: АКБ Lenovo IdeaPad 75 B480, B485, B490, B495, B580, B585, B590, G480, G485, G500, G580, G585, V380, V385, V480, V485, V580, Y470, Y480, Y570, Y580, Z380, Z480, Z485, Z580, Z585, ThankPad Edge E430, E435, E49A, E530, E535 10,8-11,1V Б/У < 50 %

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo IdeaPad B480, B485, B490, B495, B580, B585, B590, G480, G480A, G480AM, G485, G500, G580, G580A, G585, K49, K49A, M480, M490, M495, M580, M595, N580, N581, N585, N586, P580, P585, V380, V385, V480, V480c, V480s, V480U, V485, V580, V580A, V580c, V580s, V585, Y470, Y470A, Y470D, Y470G, Y470M, Y470N, Y470P, Y471, Y471A, Y471D, Y471G, Y471M, Y471N, Y471P, Y480, Y480A, Y480A-ISE, Y480M, Y480M-IFI, Y480N, Y480P, Y570, Y570A, Y570D, Y570M, Y570N, Y570NT, Y570P, Y580, Y580A, Y580M, Y580N, Y580P, Z380, Z380A, Z480, Z485, Z580, Z585, ThankPad Edge E430, E430c, E435, E49A, E49AL, E49L, E530, E530c, E535 10,8-11,1V (L08S6DB, L09L6D16, L09N6D16, L09S6D16, L10L6Y01, L10N6Y01, L10P6F01, L10S6F01, L10S6Y01, L11L6F01, L11L6R01, L11L6Y01, L11M6Y01, L11N6R01, L11N6Y01, L11P6R01, L11S6F01, L11S6Y01) Б/У < 50 %
Lenovo IdeaPad B480 Lenovo IdeaPad B485 Lenovo IdeaPad B490 Lenovo IdeaPad B495 Lenovo IdeaPad B560 Lenovo IdeaPad B560A Lenovo IdeaPad B560G Lenovo IdeaPad B580 Lenovo IdeaPad B585 Lenovo IdeaPad B590 Lenovo IdeaPad G480 Lenovo IdeaPad G480A Lenovo IdeaPad G480AM Lenovo IdeaPad G485 Lenovo IdeaPad G500 Lenovo IdeaPad G580 Lenovo IdeaPad G580A Lenovo IdeaPad G585 Lenovo IdeaPad K49 Lenovo IdeaPad K49A Lenovo IdeaPad M480 Lenovo IdeaPad M490 Lenovo IdeaPad M495 Lenovo IdeaPad M580 Lenovo IdeaPad M595 Lenovo IdeaPad N580 Lenovo IdeaPad N581 Lenovo IdeaPad N585 Lenovo IdeaPad N586 Lenovo IdeaPad P580 Lenovo IdeaPad P585 Lenovo IdeaPad V380 Lenovo IdeaPad V385 Lenovo IdeaPad V480 Lenovo IdeaPad V480c Lenovo IdeaPad V480s Lenovo IdeaPad V480U Lenovo IdeaPad V485 Lenovo IdeaPad V560 Lenovo IdeaPad V560A Lenovo IdeaPad V580 Lenovo IdeaPad V580A Lenovo IdeaPad V580c Lenovo IdeaPad V580s Lenovo IdeaPad V585 Lenovo IdeaPad Y460 Lenovo IdeaPad Y460-063346U Lenovo IdeaPad Y460-063347U Lenovo IdeaPad Y460A Lenovo IdeaPad Y460A-IFI Lenovo IdeaPad Y460A-ITH Lenovo IdeaPad Y460AT Lenovo IdeaPad Y460AT-IFI Lenovo IdeaPad Y460AT-ITH Lenovo IdeaPad Y460C Lenovo IdeaPad Y460D Lenovo IdeaPad Y460G Lenovo IdeaPad Y460N Lenovo IdeaPad Y460P Lenovo IdeaPad Y470 Lenovo IdeaPad Y470A Lenovo IdeaPad Y470D Lenovo IdeaPad Y470G Lenovo IdeaPad Y470M Lenovo IdeaPad Y470N Lenovo IdeaPad Y470P Lenovo IdeaPad Y471 Lenovo IdeaPad Y471A Lenovo IdeaPad Y471D Lenovo IdeaPad Y471G Lenovo IdeaPad Y471M Lenovo IdeaPad Y471N Lenovo IdeaPad Y471P Lenovo IdeaPad Y480 Lenovo IdeaPad Y480A Lenovo IdeaPad Y480A-ISE Lenovo IdeaPad Y480M Lenovo IdeaPad Y480M-IFI Lenovo IdeaPad Y480N Lenovo IdeaPad Y480P Lenovo IdeaPad Y560 Lenovo IdeaPad Y560A Lenovo IdeaPad Y560A-IFH Lenovo IdeaPad Y560A-IFI Lenovo IdeaPad Y560AT Lenovo IdeaPad Y560AT-IFI Lenovo IdeaPad Y560AT-ISE Lenovo IdeaPad Y560C Lenovo IdeaPad Y560D Lenovo IdeaPad Y560DT Lenovo IdeaPad Y560N Lenovo IdeaPad Y560P Lenovo IdeaPad Y570 Lenovo IdeaPad Y570A Lenovo IdeaPad Y570D Lenovo IdeaPad Y570M Lenovo IdeaPad Y570N Lenovo IdeaPad Y570NT Lenovo IdeaPad Y570P Lenovo IdeaPad Y580 Lenovo IdeaPad Y580A Lenovo IdeaPad Y580M Lenovo IdeaPad Y580N Lenovo IdeaPad Y580P Lenovo IdeaPad Z380 Lenovo IdeaPad Z380A Lenovo IdeaPad Z480 Lenovo IdeaPad Z485 Lenovo IdeaPad Z580 Lenovo IdeaPad Z585 Lenovo ThinkPad Edge E430 Lenovo ThinkPad Edge E430c Lenovo ThinkPad Edge E435 Lenovo ThinkPad Edge E49A Lenovo ThinkPad Edge E49AL Lenovo ThinkPad Edge E49L Lenovo ThinkPad Edge E530 Lenovo ThinkPad Edge E530c Lenovo ThinkPad Edge E535
121500050 080-513-0880 11S121500040Z 11S121500041Z 11S121500042Z 11S121500043Z 11S121500049Z 11S45N1044Z 12-1500050 3ICR19/65-2 3ICR19/66-2 45N1042 45N1043 45N1044 45N1045 45N1048 45N1049 45N1055 57Y6440 57Y6567 57Y6625 57Y6626 ASM 45N1048 ASM_45N1048 B053R015-2022 B056R045-0009 B056R054-9009 B056R120-1010 FRU 45N1049 FRU_45N1049 L08S6DB L09L6D16 L09N6D16 L09S6D16 L10L6Y01 L10N6Y01 L10P6F01 L10S6F01 L10S6Y01 L11L6F01 L11L6R01 L11L6Y01 L11M6Y01 L11N6R01 L11N6Y01 L11P6R01 L11S6F01 L11S6Y01 LC32LG122Q LC32SD222Q LC32SO222Q TIS 2217-2548 TZ32R2112C ZU12017-13007
