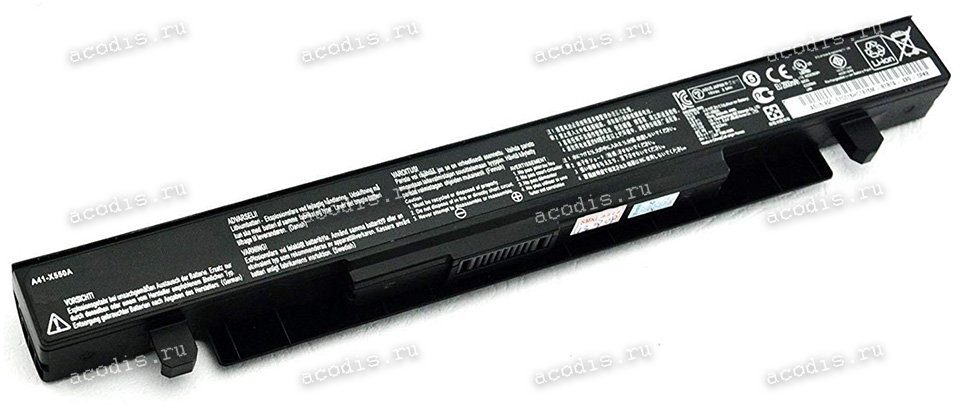

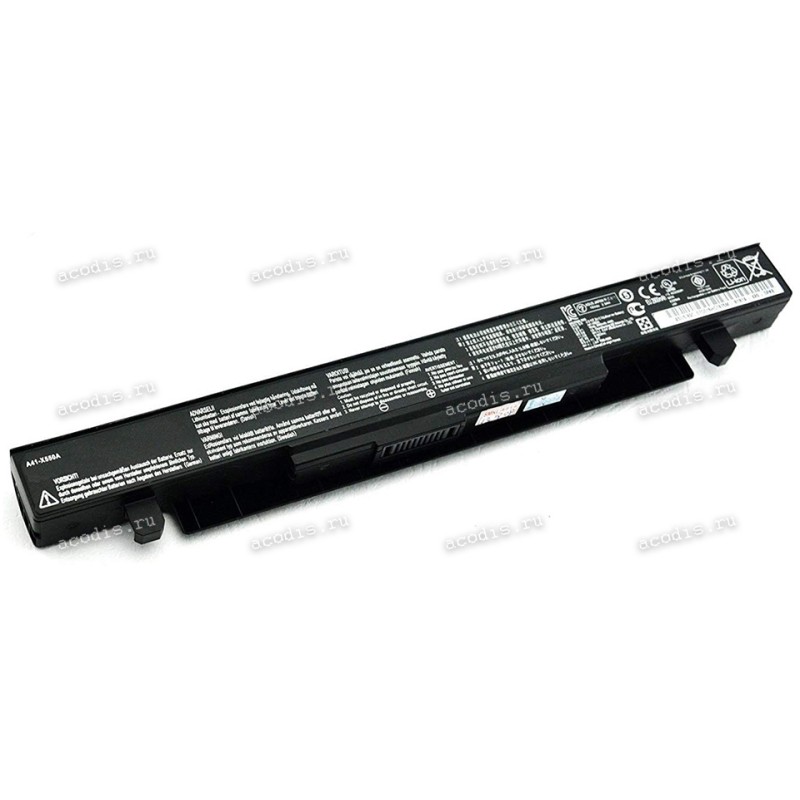

АКБ Asus X550 (14,4V 2500mAh 37Wh Prod. A41-X550A, 0B110-00230900) original new

NEW original

Распиновка = pinout

RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

3 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

4 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

5 = SMBC, SLC (CLOCK pin) coffee/broun

6 = SMBD, SDA (DATA pin) orange

7 = BATT_TEMP, NTC, Termistor

8 = GND ("-", Ground, VSS) black

9 = GND ("-", Ground, VSS) black

Аналоги

A41-X550A, 0B110-00230900

Модели подходящих товаров

Asus X550
