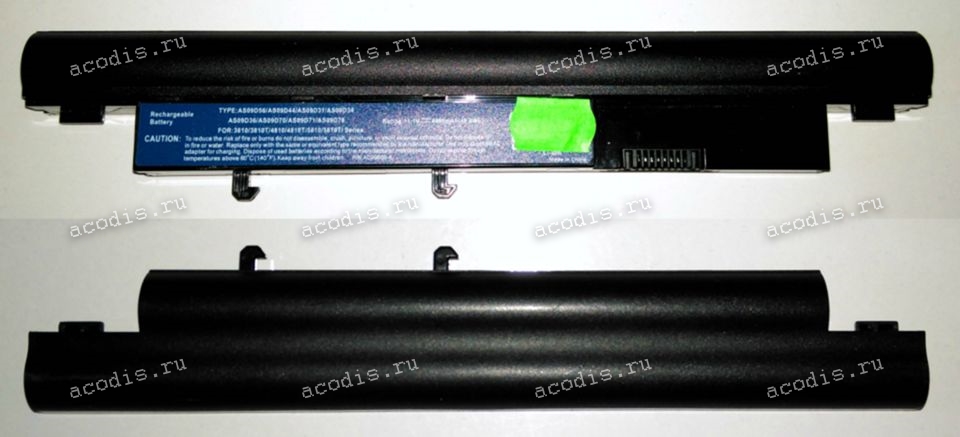

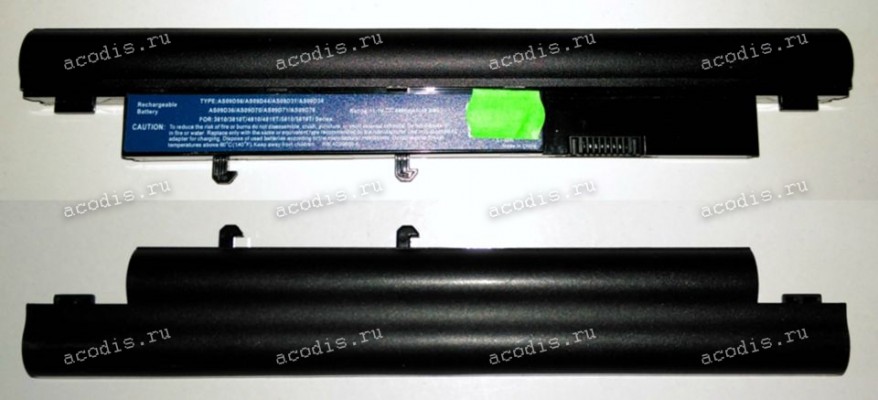

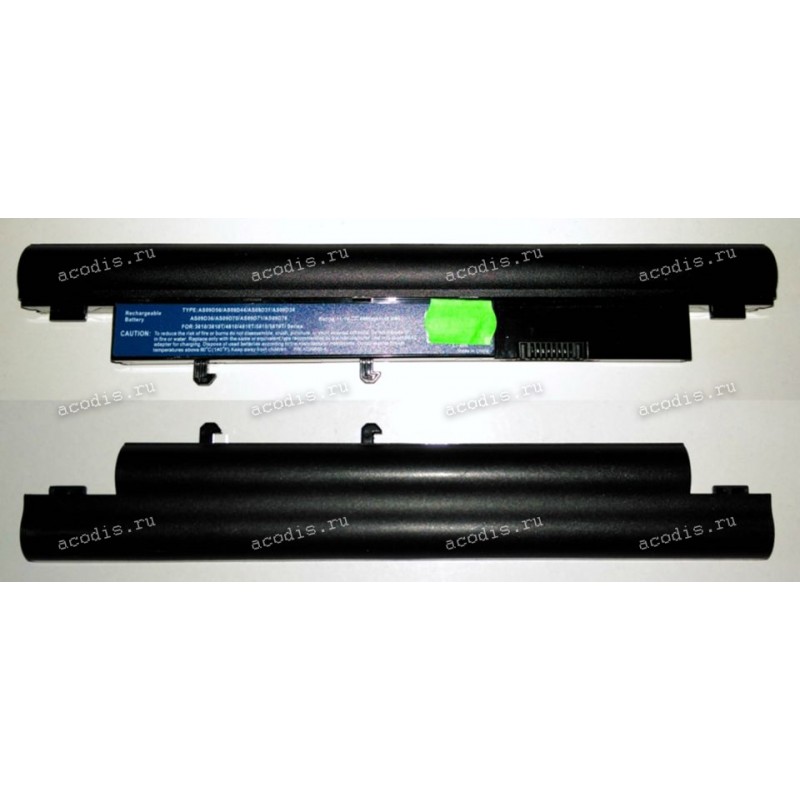

АКБ Acer Aspire TimeLine 3410, 3750, 3810, 4410, 4810, 5410, 5534, 5534, 5538, 5810, TravelMate 8331, 8371, 8431, 8471, 8531, 8571, eMachines E628, Gateway NS40, Packard Bell EasyNote BFS, BFM 11,1V original NEW

АКБ Acer Aspire TimeLine 3410, 3750, 3810, 4410, 4810, 5410, 5534, 5534, 5538, 5810, TravelMate 8331, 8371, 8431, 8471, 8531, 8571, eMachines E628, Gateway NS40, Packard Bell EasyNote BFS, BFM 11,1V original NEW

Артикул:
00000010889
Базовая цена
2 100 р.
-
+
В корзину!
Цена от 5 штук:
2000
Наличие мало

Характеристики АКБ Acer Aspire TimeLine 3410, 3750, 3810, 4410, 4810, 5410, 5534, 5534, 5538, 5810, TravelMate 8331, 8371, 8431, 8471, 8531, 8571, eMachines E628, Gateway NS40, Packard Bell EasyNote BFS, BFM 11,1V original NEW

original NEW

Распиновка = pinout

RF-20-8 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

3 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

4 = BATT_TEMP, Termistor

5 = SMBC, SLC (CLOCK pin) coffee/broun

6 = SMBD, SDA (DATA pin) orange

7 = GND ("-", Ground, VSS) black

8 = GND ("-", Ground, VSS) black

Описание: АКБ Acer Aspire TimeLine 3410, 3750, 3810, 4410, 4810, 5410, 5534, 5534, 5538, 5810, TravelMate 8331, 8371, 8431, 8471, 8531, 8571, eMachines E628, Gateway NS40, Packard Bell EasyNote BFS, BFM 11,1V original NEW

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Acer Aspire TimeLine 3410, 3750, 3750G, 3750Z, 3750ZG, 3810, 3810T, 3810T-351G25, 3810T-351G25N, 3810T-352G32na, 3810T-354G32n, 3810T-6376, 3810T-6415, 3810T-8737, 3810T-944G32n, 3810TG, 3810TG-944G32n, 3810TG-944G50n, 3810TGZ-414G32N, 3810T-H22, 3810T-H22F, 3810T-H22X, 3810T-P22, 3810T-P22F, 3810T-PH22X, 3810T-S22, 3810T-S22F, 3810T-XSH11, 3810T-XSH11DOM, 3810TZ, 3810TZ-413G32N, 3810TZ-414G25N, 3810TZ-414G32n, 3810TZ-4806, 3810TZ-4880, 3810TZG, 3810TZG-414G32n, 3810TZG-414G50n, 3811T, 3811TG, 3811TZ, 3811TZG, 4410, 4810, 4810-4439, 4810T, 4810T-352G32Mn, 4810T-353G25Mn, 4810T-8480, 4810TG, 4810TG-734G16Mn, 4810TG-944G16Mn, 4810TG-A23, 4810TG-O, 4810TG-R23, 4810TG-R23F, 4810T-O, 4810TZ, 4810TZ-4011, 4810TZ-413G25MN, 4810TZ-4508, 4810TZG, 4810TZG-, 4810TZG-414G32MN, 4810TZG-414G50Mn, 4810TZ-O, 5410, 5534, 5538G, 5810, 5810T, 5810T-354G32M, 5810T-354G32Mn, 5810T-8929, 5810T-8952, 5810T-944G32Mn, 5810T-D34, 5810T-D34F, 5810TG, 5810TG-354G32MN, 5810TG-734G50MN, 5810TG-944G50MN, 5810TG-D45, 5810TG-D45F, 5810TZ, 5810TZ-4112, 5810TZ-413G25MN, 5810TZ-4238, 5810TZ-4274, 5810TZ-4433, 5810TZ-4657, 5810TZ-4761, 5810TZ-4784, 5810TZG, 5810TZG-413G32MN, 5810TZG-414G50MN, 5810TZG-414G50N, Acer TravelMate 8331, 8331G, 8371, 8371-352G32n, 8371-353G25n, 8371-354G32n, 8371-6457, 8371-733G32n, 8371-733G32n_3G, 8371-8391, 8371-944G08n, 8371-944G16N_UMTS, 8371-944G32n, 8371-944G32N_UMTS, 8371-944G50n, 8371G, 8371G-732G50nc, 8371-P716, 8371-P716D, 8371-P716DF, 8371-P716F, 8431, 8471, 8471-353G25Mn, 8471-354G32N, 8471-6096, 8471-6457, 8471-733G25Mn, 8471-733G25N, 8471-733G32Mn, 8471-8422, 8471-8818, 8471-943G32Mn, 8471-944G16N, 8471-944G32Mn, 8471-944G32N, 8471-944G50Mn, 8471-944G50N_UMTS, 8471G, 8531, 8571-353G25Mn, 8571-354G32N, 8571-6033, 8571-6465, 8571-733G25Mn, 8571-733G25N, 8571-733G32Mn, 8571-8181, 8571-8537, 8571-943G25Mn, 8571-944G32Mn, 8571-944G32N, 8571-944G50N_UMTS, 8571G, 8571G-734G32Mn, TM8331, TM8331G, TM8371, TM8371-352G32n, TM8371-353G25n, TM8371-354G32n, TM8371-6457, TM8371-733G32n, TM8371-733G32n_3G, TM8371-8391, TM8371-944G08n, TM8371-944G16N_UMTS, TM8371-944G32n, TM8371-944G32N_UMTS, TM8371-944G50n, TM8371G, TM8371G-732G50nc, TM8371-P716, TM8371-P716D, TM8371-P716DF, TM8371-P716F, TM8431, TM8471, TM8471-353G25Mn, TM8471-354G32N, TM8471-6096, TM8471-6457, TM8471-733G25Mn, TM8471-733G25N, TM8471-733G32Mn, TM8471-8422, TM8471-8818, TM8471-943G32Mn, TM8471-944G16N, TM8471-944G32Mn, TM8471-944G32N, TM8471-944G50Mn, TM8471-944G50N_UMTS, TM8471G, TM8531, TM8571-353G25Mn, TM8571-354G32N, TM8571-6033, TM8571-6465, TM8571-733G25Mn, TM8571-733G25N, TM8571-733G32Mn, TM8571-8181, TM8571-8537, TM8571-943G25Mn, TM8571-944G32Mn, TM8571-944G32N, TM8571-944G50N_UMTS, TM8571G, TM8571G-734G32Mn, eMachines E628, MS2272, Gateway EC34, EC38, EC54, EC5409u, EC5412u, EC58, EC5801u, EC5802u, EC5809u, EC5810u, EC5811u, NS40, NS40T, NS40TG, NS40TG, NV47H, NV49C, NV50A, NV51, NV51B, NV51M, NV52, NV53, NV53A, NV55C, NV55S, NV56, NV57H, NV59, NV59C, NV73A, NV79C, Packard Bell EasyNote BFS, BFM, SJM31, TSX62HR 11,1V original NEW
Acer Aspire TimeLine 3410 Acer Aspire TimeLine 3750 Acer Aspire TimeLine 3750G Acer Aspire TimeLine 3750Z Acer Aspire TimeLine 3750ZG Acer Aspire TimeLine 3810 Acer Aspire TimeLine 3810T Acer Aspire TimeLine 3810T-351G25 Acer Aspire TimeLine 3810T-351G25N Acer Aspire TimeLine 3810T-352G32na Acer Aspire TimeLine 3810T-354G32n Acer Aspire TimeLine 3810T-6376 Acer Aspire TimeLine 3810T-6415 Acer Aspire TimeLine 3810T-8737 Acer Aspire TimeLine 3810T-944G32n Acer Aspire TimeLine 3810TG Acer Aspire TimeLine 3810TG-944G32n Acer Aspire TimeLine 3810TG-944G50n Acer Aspire TimeLine 3810TGZ-414G32N Acer Aspire TimeLine 3810T-H22 Acer Aspire TimeLine 3810T-H22F Acer Aspire TimeLine 3810T-H22X Acer Aspire TimeLine 3810T-P22 Acer Aspire TimeLine 3810T-P22F Acer Aspire TimeLine 3810T-PH22X Acer Aspire TimeLine 3810T-S22 Acer Aspire TimeLine 3810T-S22F Acer Aspire TimeLine 3810T-XSH11 Acer Aspire TimeLine 3810T-XSH11DOM Acer Aspire TimeLine 3810TZ Acer Aspire TimeLine 3810TZ-413G32N Acer Aspire TimeLine 3810TZ-414G25N Acer Aspire TimeLine 3810TZ-414G32n Acer Aspire TimeLine 3810TZ-4806 Acer Aspire TimeLine 3810TZ-4880 Acer Aspire TimeLine 3810TZG Acer Aspire TimeLine 3810TZG-414G32n Acer Aspire TimeLine 3810TZG-414G50n Acer Aspire TimeLine 3811T Acer Aspire TimeLine 3811TG Acer Aspire TimeLine 3811TZ Acer Aspire TimeLine 3811TZG Acer Aspire TimeLine 4410 Acer Aspire TimeLine 4810 Acer Aspire TimeLine 4810-4439 Acer Aspire TimeLine 4810T Acer Aspire TimeLine 4810T-352G32Mn Acer Aspire TimeLine 4810T-353G25Mn Acer Aspire TimeLine 4810T-8480 Acer Aspire TimeLine 4810TG Acer Aspire TimeLine 4810TG-734G16Mn Acer Aspire TimeLine 4810TG-944G16Mn Acer Aspire TimeLine 4810TG-A23 Acer Aspire TimeLine 4810TG-O Acer Aspire TimeLine 4810TG-R23 Acer Aspire TimeLine 4810TG-R23F Acer Aspire TimeLine 4810T-O Acer Aspire TimeLine 4810TZ Acer Aspire TimeLine 4810TZ-4011 Acer Aspire TimeLine 4810TZ-413G25MN Acer Aspire TimeLine 4810TZ-4508 Acer Aspire TimeLine 4810TZG Acer Aspire TimeLine 4810TZG- Acer Aspire TimeLine 4810TZG-414G32MN Acer Aspire TimeLine 4810TZG-414G50Mn Acer Aspire TimeLine 4810TZ-O Acer Aspire TimeLine 5410 Acer Aspire TimeLine 5534 Acer Aspire TimeLine 5538G Acer Aspire TimeLine 5810 Acer Aspire TimeLine 5810T Acer Aspire TimeLine 5810T-354G32M Acer Aspire TimeLine 5810T-354G32Mn Acer Aspire TimeLine 5810T-8929 Acer Aspire TimeLine 5810T-8952 Acer Aspire TimeLine 5810T-944G32Mn Acer Aspire TimeLine 5810T-D34 Acer Aspire TimeLine 5810T-D34F Acer Aspire TimeLine 5810TG Acer Aspire TimeLine 5810TG-354G32MN Acer Aspire TimeLine 5810TG-734G50MN Acer Aspire TimeLine 5810TG-944G50MN Acer Aspire TimeLine 5810TG-D45 Acer Aspire TimeLine 5810TG-D45F Acer Aspire TimeLine 5810TZ Acer Aspire TimeLine 5810TZ-4112 Acer Aspire TimeLine 5810TZ-413G25MN Acer Aspire TimeLine 5810TZ-4238 Acer Aspire TimeLine 5810TZ-4274 Acer Aspire TimeLine 5810TZ-4433 Acer Aspire TimeLine 5810TZ-4657 Acer Aspire TimeLine 5810TZ-4761 Acer Aspire TimeLine 5810TZ-4784 Acer Aspire TimeLine 5810TZG Acer Aspire TimeLine 5810TZG-413G32MN Acer Aspire TimeLine 5810TZG-414G50MN Acer Aspire TimeLine 5810TZG-414G50N Acer TravelMate 8331 Acer TravelMate 8331G Acer TravelMate 8371 Acer TravelMate 8371-352G32n Acer TravelMate 8371-353G25n Acer TravelMate 8371-354G32n Acer TravelMate 8371-6457 Acer TravelMate 8371-733G32n Acer TravelMate 8371-733G32n_3G Acer TravelMate 8371-8391 Acer TravelMate 8371-944G08n Acer TravelMate 8371-944G16N_UMTS Acer TravelMate 8371-944G32n Acer TravelMate 8371-944G32N_UMTS Acer TravelMate 8371-944G50n Acer TravelMate 8371G Acer TravelMate 8371G-732G50nc Acer TravelMate 8371-P716 Acer TravelMate 8371-P716D Acer TravelMate 8371-P716DF Acer TravelMate 8371-P716F Acer TravelMate 8431 Acer TravelMate 8471 Acer TravelMate 8471-353G25Mn Acer TravelMate 8471-354G32N Acer TravelMate 8471-6096 Acer TravelMate 8471-6457 Acer TravelMate 8471-733G25Mn Acer TravelMate 8471-733G25N Acer TravelMate 8471-733G32Mn Acer TravelMate 8471-8422 Acer TravelMate 8471-8818 Acer TravelMate 8471-943G32Mn Acer TravelMate 8471-944G16N Acer TravelMate 8471-944G32Mn Acer TravelMate 8471-944G32N Acer TravelMate 8471-944G50Mn Acer TravelMate 8471-944G50N_UMTS Acer TravelMate 8471G Acer TravelMate 8531 Acer TravelMate 8571-353G25Mn Acer TravelMate 8571-354G32N Acer TravelMate 8571-6033 Acer TravelMate 8571-6465 Acer TravelMate 8571-733G25Mn Acer TravelMate 8571-733G25N Acer TravelMate 8571-733G32Mn Acer TravelMate 8571-8181 Acer TravelMate 8571-8537 Acer TravelMate 8571-943G25Mn Acer TravelMate 8571-944G32Mn Acer TravelMate 8571-944G32N Acer TravelMate 8571-944G50N_UMTS Acer TravelMate 8571G Acer TravelMate 8571G-734G32Mn eMachines E628 eMachines MS2272 Gateway EC34 Gateway EC38 Gateway EC54 Gateway EC5409u Gateway EC5412u Gateway EC58 Gateway EC5801u Gateway EC5802u Gateway EC5809u Gateway EC5810u Gateway EC5811u Gateway NS40 Gateway NS40T Gateway NS40TG Gateway NS40TG Gateway NV47H Gateway NV49C Gateway NV50A Gateway NV51 Gateway NV51B Gateway NV51M Gateway NV52 Gateway NV53 Gateway NV53A Gateway NV55C Gateway NV55S Gateway NV56 Gateway NV57H Gateway NV59 Gateway NV59C Gateway NV73A Gateway NV79C Packard Bell EasyNote BFS Packard Bell EasyNote BFM Packard Bell EasyNote SJM31 Packard Bell EasyNote TSX62HR Acer TravelMate TM8331 Acer TravelMate TM8331G Acer TravelMate TM8371 Acer TravelMate TM8371-352G32n Acer TravelMate TM8371-353G25n Acer TravelMate TM8371-354G32n Acer TravelMate TM8371-6457 Acer TravelMate TM8371-733G32n Acer TravelMate TM8371-733G32n_3G Acer TravelMate TM8371-8391 Acer TravelMate TM8371-944G08n Acer TravelMate TM8371-944G16N_UMTS Acer TravelMate TM8371-944G32n Acer TravelMate TM8371-944G32N_UMTS Acer TravelMate TM8371-944G50n Acer TravelMate TM8371G Acer TravelMate TM8371G-732G50nc Acer TravelMate TM8371-P716 Acer TravelMate TM8371-P716D Acer TravelMate TM8371-P716DF Acer TravelMate TM8371-P716F Acer TravelMate TM8431 Acer TravelMate TM8471 Acer TravelMate TM8471-353G25Mn Acer TravelMate TM8471-354G32N Acer TravelMate TM8471-6096 Acer TravelMate TM8471-6457 Acer TravelMate TM8471-733G25Mn Acer TravelMate TM8471-733G25N Acer TravelMate TM8471-733G32Mn Acer TravelMate TM8471-8422 Acer TravelMate TM8471-8818 Acer TravelMate TM8471-943G32Mn Acer TravelMate TM8471-944G16N Acer TravelMate TM8471-944G32Mn Acer TravelMate TM8471-944G32N Acer TravelMate TM8471-944G50Mn Acer TravelMate TM8471-944G50N_UMTS Acer TravelMate TM8471G Acer TravelMate TM8531 Acer TravelMate TM8571-353G25Mn Acer TravelMate TM8571-354G32N Acer TravelMate TM8571-6033 Acer TravelMate TM8571-6465 Acer TravelMate TM8571-733G25Mn Acer TravelMate TM8571-733G25N Acer TravelMate TM8571-733G32Mn Acer TravelMate TM8571-8181 Acer TravelMate TM8571-8537 Acer TravelMate TM8571-943G25Mn Acer TravelMate TM8571-944G32Mn Acer TravelMate TM8571-944G32N Acer TravelMate TM8571-944G50N_UMTS Acer TravelMate TM8571G Acer TravelMate TM8571G-734G32Mn
3UR18650-2-T0408 934T4070H AK.006BT.027 AS09D31 AS09D34 AS09D36 AS09D41 AS09D44 AS09D51 AS09D56 AS09D70 AS09D71 AS09D73 AS09D75 AS09D78 AS09D7C AS09D7D AS09F34 AS09F56 AS-2009D BT.00603.079 BATTERY.LI-ION.6C.5K2mAH BT.00603.080 BATTERY.LI-ION.6C.5K6mAH BT.00603.082 BATTERY.LI-ION.6C.4K4mAH BT.00603.090 BATTERY.LI-ION.6C.4K4mAH BT.00603.091 BATTERY.LI-ION.6C.5200mAH BT.00603.092 BATTERY.LI-ION.6C.5K6mAH BT.00603.099 BATTERY.LI-ION.6C.5k6mAH BT.00603.101 BATTERY.LI-ION.6C.4K4mAH BT.00604.039 BATTERY.LI-ION.6C.4K4mAH BT.00604.043 BATTERY.LI-ION.6C.4K4mAH BT.00605.038 BATTERY.LI-ION.6C.5K8mAH BT.00605.041 BATTERY.LI-ION.6C.4K4mAH BT.00605.048 BATTERY.LI-ION.6C.4K4mAH BT.00605.049 BATTERY.LI-ON.5k8mAH BT.00605.053 BATTERY.LI-ION.6C.5800mAH BT.00605.054 BATTERY.LI-ION.6C.4400mAH BT.00606.005 BATTERY.LI-ION.6C.5K6mAH BT.00606.006 BATTERY.LI-ION.6C.4k4mAH BT.00607.078 BATTERY.LI-ION.6C.4K4mAH BT.00607.079 BATTERY.LI-ION.6C.4K4mAH BT.00607.080 BATTERY.LI-ION.6C.4K4mAH BT.00607.082 BATTERY.LI-ION.6C.5K6mAH BT.00607.089 BATTERY.LI-ION.6C.5K2mAH BT.00607.090 BATTERY.LI-ION.6C.5K2mAH BT.00607.096 BATTERY.LI-ION.6C.4K4mAH BT.00607.097 BATTERY.LI-ION.6C.4K4mAH BT.00607.098 BATTERY.LI-ION.6C.4K4mAH BT.00607.099 BATTERY.LI-ION.6C.5K6mAH BT.00607.101 BT.00607.108 BATTERY.LI-ION.6C.5k6mAH BT.00607.109 BATTERY.LI-ION.6C.4K4mAH BT.00607.110 BATTERY.LI-ION.6C.4k4mAH BT.00905.005 BATTERY.Li-ION.8K4mAH.9C LC.BTP00.052 LC.BTP00.068
