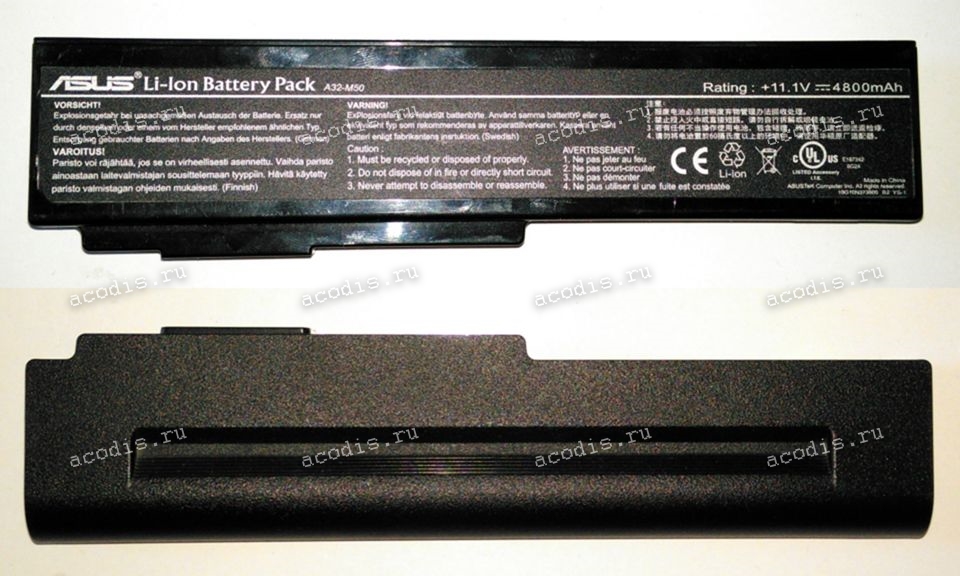

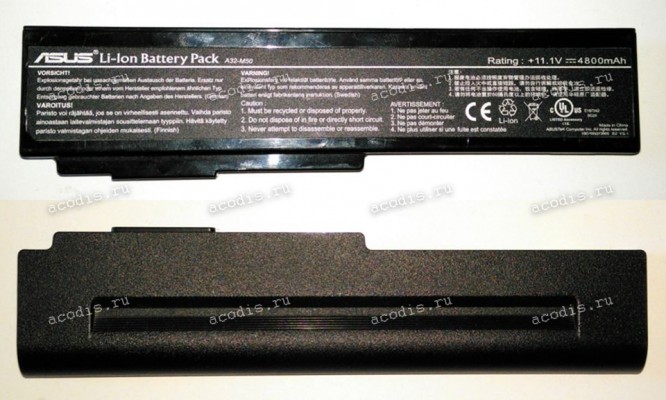

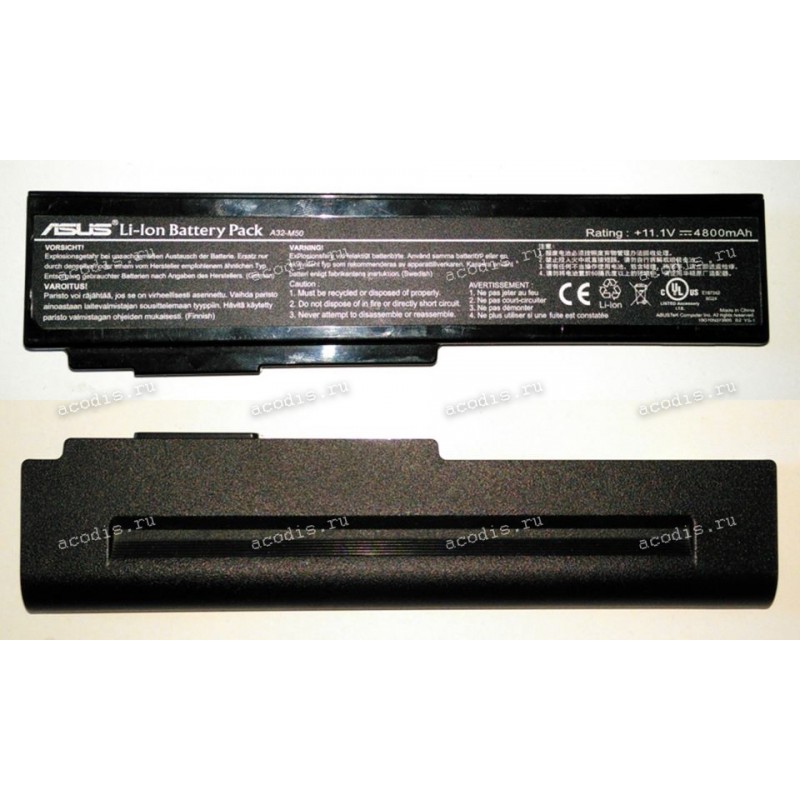

АКБ Asus G50, G51, G60, L50, M50, M51, M60, M70, N43, N53, N61, VX5, X55, X57, X64 (A32-M50, A32-N61, A32-X64, A33-M50) 11.1V разбор
- Производитель:
-
Артикул:00000010261
- 99999
Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Asus G50, G50E, G50T, G50V, G50VT, G51, G51J, G51J-3D, G51J-A1, G51JX, G51Jx-A1, G51Jx-X1, G51V, G51VX, G51Vx-X3A, G60, G60VX, G60VX-RBBX05, L50, L50Vc, L50Vm, L50Vn, M50, M50E, M50Q, M50S, M50Sa, M50Sr, M50Sv, M50V, M50VC, M50Vl, M50Vm, M50Vn, M51, M51E, M51Kr, M51Se, M51Sn, M51Sr, M51Va, M51Vr, M60, M60J, M60J-A1, M60JV, M60V, M60Vp, M60W, M70, M70Sa, M70Sr, N43, N43J, N43JF, N43JF-A1, N43JM, N43JQ, N53, N53D, N53DA, N53J, N53JF, N53JG, N53JL, N53JN, N53JQ, N61, N61-A1, N61D, N61J, N61Ja, N61JA-JX087X, N61JQ, N61JQ-160DV, N61JQ-A, N61JQ-A1, N61JQ-B1, N61JQ-JX0, N61JQ-JX001X, N61JQ-JX002V, N61JQ-JX007X, N61JQ-JX010V, N61JQ-JX014V, N61JQ-JX017V, N61JQ-JX017V, N61JQ-JX018D, N61JQ-JX021V, N61JQ-JX021X, N61JQ-JX050V, N61JQ-JX054V, N61JQ-JX058V, N61JQ-JX103V, N61JQ-JX107V, N61JQ-X1, N61JQ-X2, N61JQ-XV1, N61JQ-В2, N61Jv, N61JV-X2, N61V, N61VF, N61Vg, N61Vg-A1, N61VG-A2, N61VG-JX092V, N61Vn, N61Vn-A1, N61w, N6DA, VX5, VX5-A2B, X55, X55S, X55Sa, X55Sr, X55Sv, X57, X57Q, X57S, X57SR, X57V, X57VC, X64, X64J, X64JA, X64JQ, X64JV, X64JV-JX065V, X64JV-JX084V, X64V, X64VG, X64VG-JX008V, X64VG-JX138V, X64VG-JX156V (15G10N373800, 15G10N373830, 70-NED1B1000Z, 70-NED1B1200Z, 70-NED1B2000Z, 70-NED1B2100Z, 70-NED1B2200Z, 70-NTS1B2000Z, 70-NWF1B1000Z, 70-NWF1B2000Z, 70-NXP1B2000Z, 70-NXP2B1000Z, 70-NZT1B1000Z, 90-NED1B1000Y, 90-NED1B2100Y, 90-NWF1B2000Y, 90R-NED1B1000Y, 90R-NED2B1000Y, A32-M50, A32-N61, A32-X64, A33-M50, L062066, L072051, L0790C6) 11.1V разбор
Из разобранных аппаратов
Распиновка = pinout
RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)
1 = GND ("-", Ground, VSS) black
2 = GND ("-", Ground, VSS) black
3 =
4 = SMBD, SDA (DATA pin) orange
5 = SMBC, SLC (CLOCK pin) coffee/broun
6 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)
7 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)
8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
