АКБ Asus F301, F401, F501, S301, S401, S501, X301, X401, X501 (A32-X401) 14.8V Б/У < 50 %
- Производитель:
-
Артикул:00000009779
- 99999

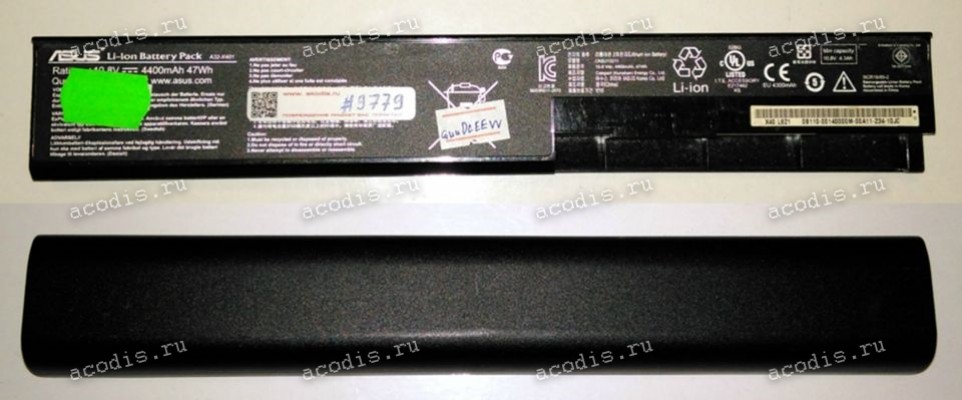

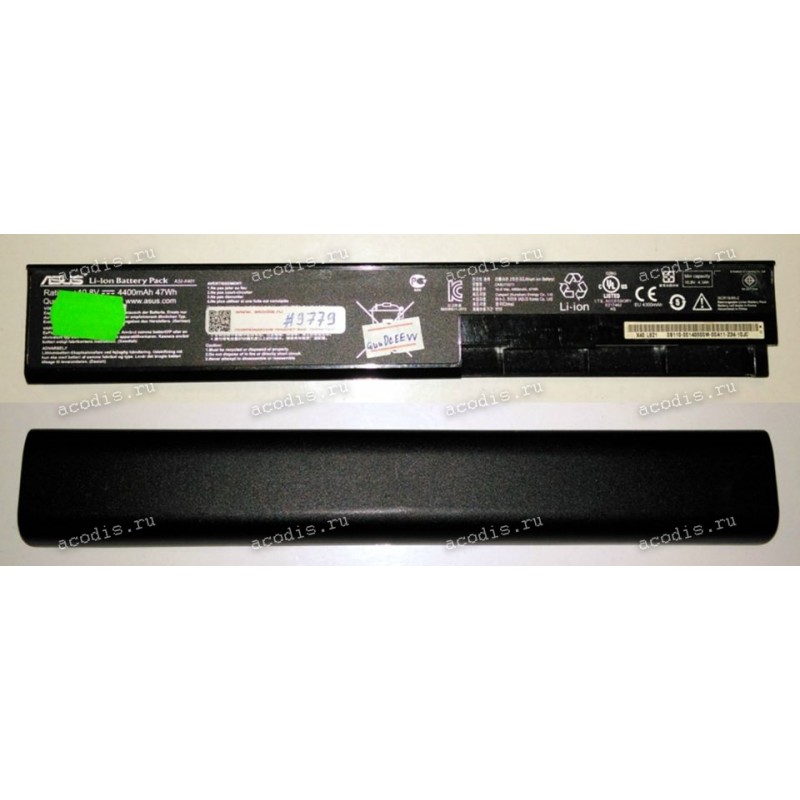

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Asus F301, F301A, F301A1, F301U, F401, F401A, F401A1, F401U, F501, F501A, F501A1, F501U, S301, S301A, S301A1, S301U, S401, S401A, S401A1, S401U, S501, S501A, S501A1, S501U, X301, X301A, X301A1, X301U, X401, X401A, X401A1, X401U, X501, X501A, X501A1, X501U (A32-X401) 14.8V Б/У < 50 %
Из разобранных аппаратов
Распиновка = pinout
RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)
1 = GND ("-", Ground, VSS) black
2 = GND ("-", Ground, VSS) black
3 =
4 = SMBD, SDA (DATA pin) orange
5 = SMBC, SLC (CLOCK pin) coffee/broun
6 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)
7 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)
8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
