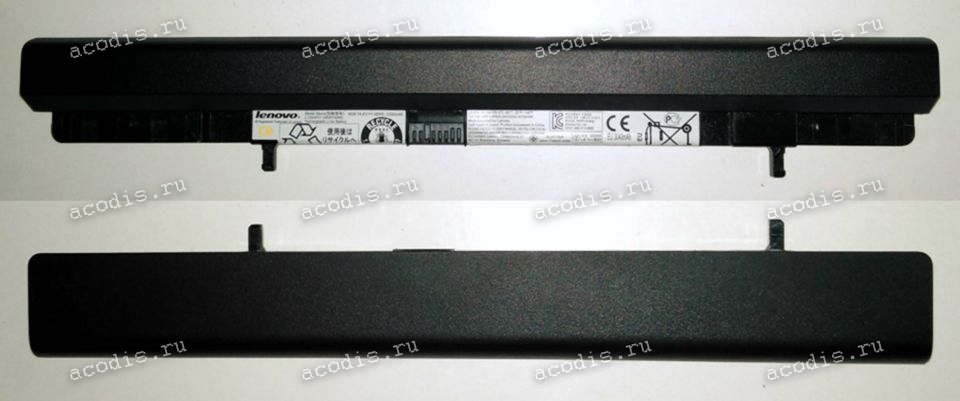

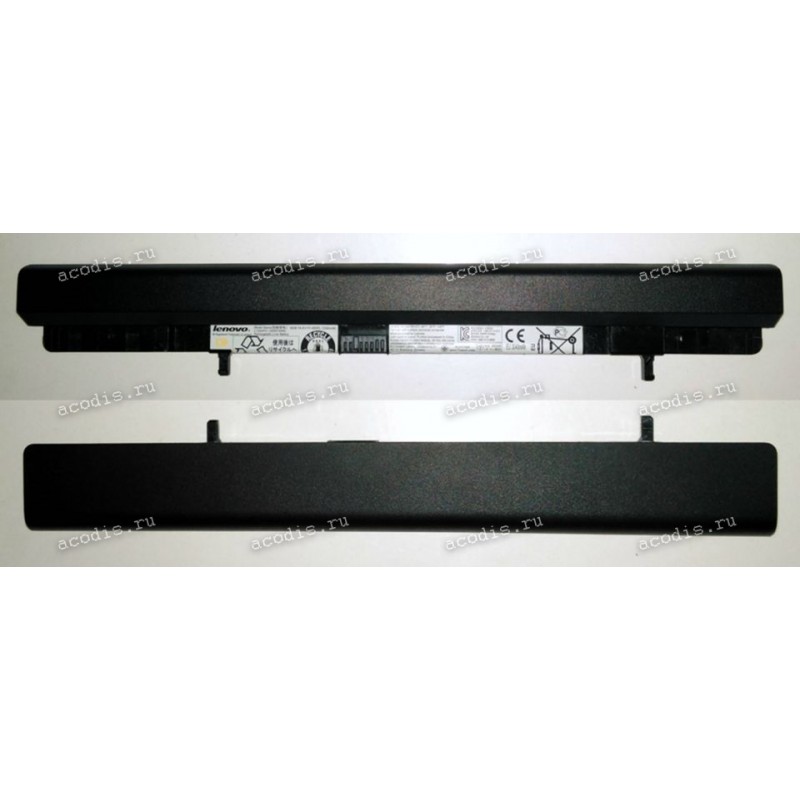

АКБ Lenovo IdeaPad Flex14, 14AD, 14AP, 14AT, 14D, 14M, 15AP, 15AT, 15D, 15M, S500 14.4V (L12S4F01, 121500165) разбор

Из разобранных аппаратов

Распиновка = pinout

RF-25-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (2) = ключ, пластиковый пин, перегородка

2 (3) =

3 (4) = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

4 (5) = BATT_TEMP, NTC, Termistor

5 (6) = SMBD, SDA (DATA pin) orange

6 (7) = SMBC, SLC (CLOCK pin) coffee/broun

7 (8) = GND ("-", Ground, VSS) black

Аналоги

L12S4F01 YU12001-13005 12150065 11S12150065Z L12S4A01 L12L4A01 L12L4K51 L12M4A01 L12M4E51 L12M4K51 L12S4A01 L12S4E51 L12S4F01 L12S4K51 888015451, 888015452, L12L4K51, L12M4A01, L12M4E51, L12M4K51, L12S4A01, L12S4E51, L12S4F01, L12S4K51, L12L4A01

Модели подходящих товаров

Lenovo IdeaPad Flex14 Lenovo IdeaPad Flex14AD Lenovo IdeaPad Flex14AP Lenovo IdeaPad Flex14AT Lenovo IdeaPad Flex14D Lenovo IdeaPad Flex14M Lenovo IdeaPad Flex15AP Lenovo IdeaPad Flex15AT Lenovo IdeaPad Flex15D Lenovo IdeaPad Flex15M Lenovo IdeaPad S500 Lenovo IdeaPad S500 Touch
