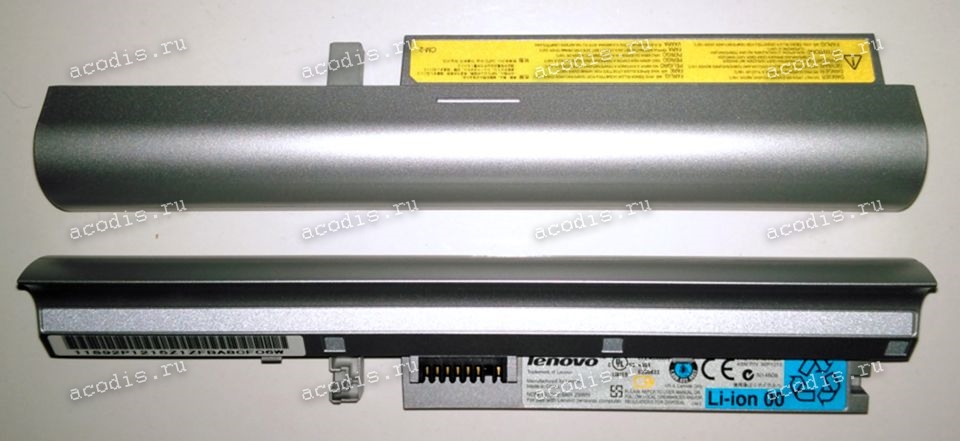

АКБ Lenovo 3000 series N220, N220G, V100, V200 (42T5220, 42T5221) 10.8V NEW original

Аналоги

11S92P1219Z 40Y8319 40Y8321 42T4508 42T4509 42T4638 42T5220 42T5221 42T5222 42T5223 92P1215 92P1216 92P1219 92P1220 ASM 92P1219 FRU 92P1216 FRU 92P1220

Модели подходящих товаров

Lenovo 3000 series N220 Lenovo 3000 series N220G Lenovo 3000 series V100 Lenovo 3000 series V200 Lenovo 0763 Lenovo 0764 Lenovo 3000 series V100 0763 Lenovo 3000 series V100 0764

NEW original

Распиновка = pinout

RF-25-8 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 (1) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 (2) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

3 (3) = BATT_TEMP, NTC, Termistor

4 (4) = SMBC, SLC (CLOCK pin) coffee/broun

5 (5) = SMBD, SDA (DATA pin) orange

6 (6) = GND ("-", Ground, VSS) black

!!! (7) = ключ, пластиковый пин, перегородка

7 (8) = GND ("-", Ground, VSS) black
