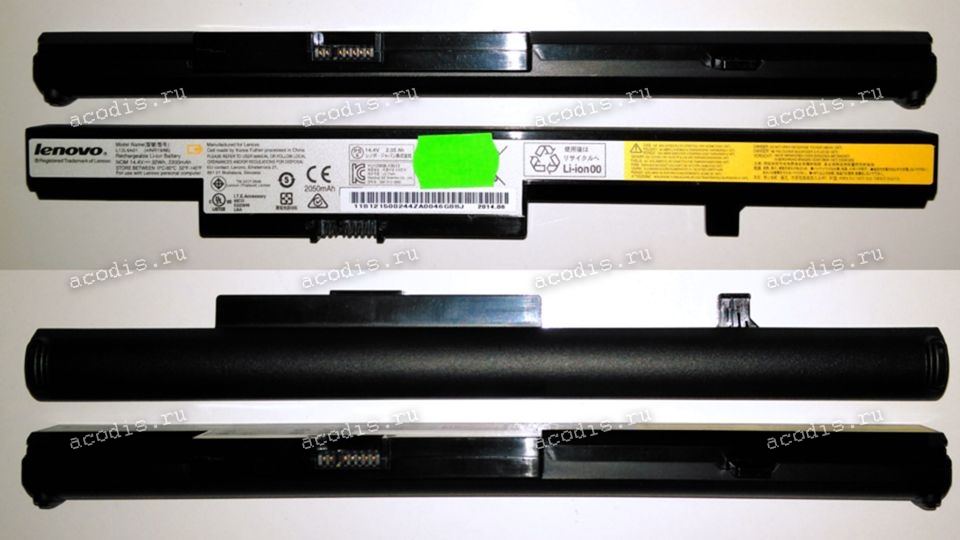

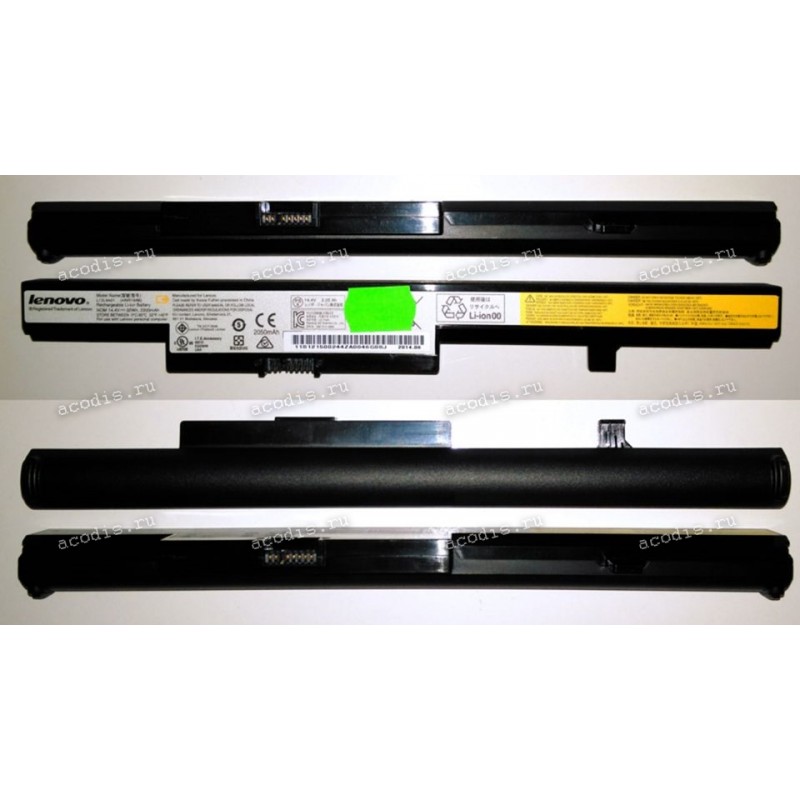

АКБ Lenovo IdeaPad B40-45, B40-70, B40-80, B50-30, B50-45, B50-70, B50-80, G550S, M4400, M4450 (L13L4A01, 121500244) 14,4V NEW original

NEW original

Распиновка = pinout

RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (3) = ключ, пластиковый пин, перегородка

3 (4) = SMBC, SLC (CLOCK pin) coffee/broun

4 (5) = SMBD, SDA (DATA pin) orange

5 (6) = BATT_TEMP, NTC, Termistor

6 (7) = GND ("-", Ground, VSS) black

7 (8) = GND ("-", Ground, VSS) black

Аналоги

45N1184 45N1185 L12L4E55 L12M4E55 L12S4E55 L13L4A01 L13M4A01 L13S4A01 11S121500244Z 121500244 LB121500244 8S5B10K10195X 5B10K10195

Модели подходящих товаров

Lenovo IdeaPad B40-45 (B4045), B40-70 (B4070), B40-80 (B4080), B50-30 (B5030), B50-45 (B5045), B50-70 (B5070), B50-80 (B5080) Lenovo IdeaPad M4400 Lenovo IdeaPad M4450 Lenovo IdeaPad G550S Lenovo IdeaPad B40-70 Lenovo IdeaPad B50-30
