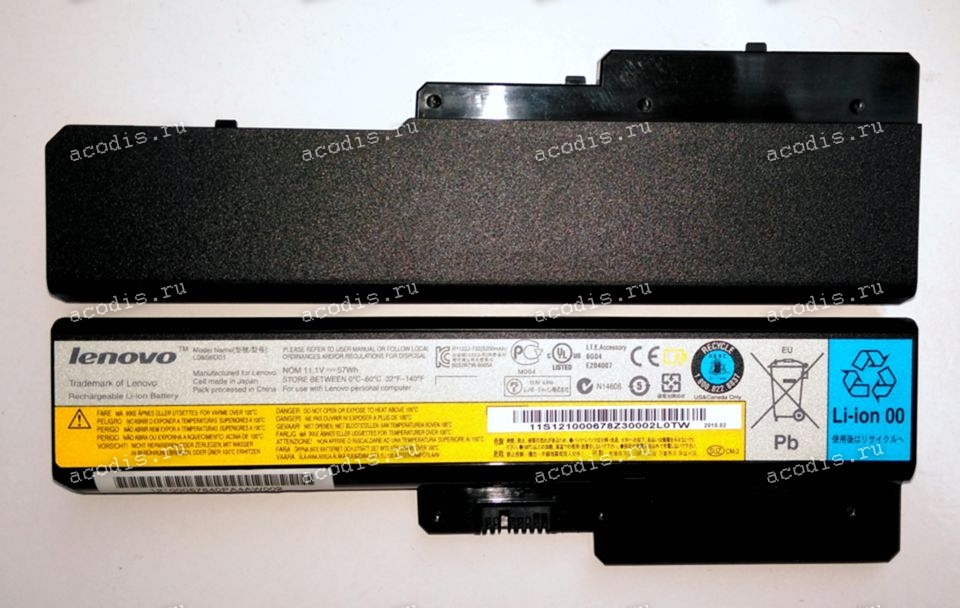

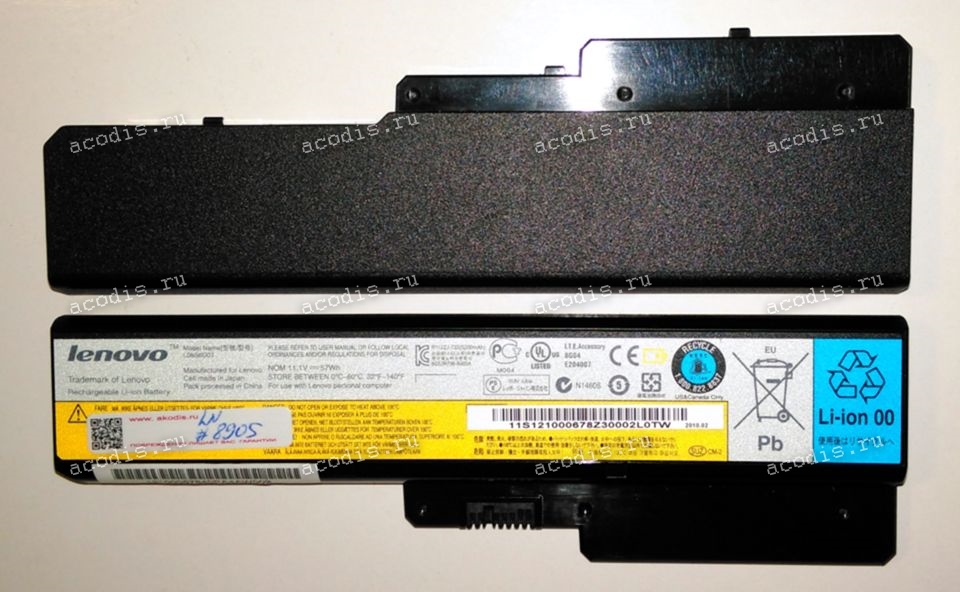

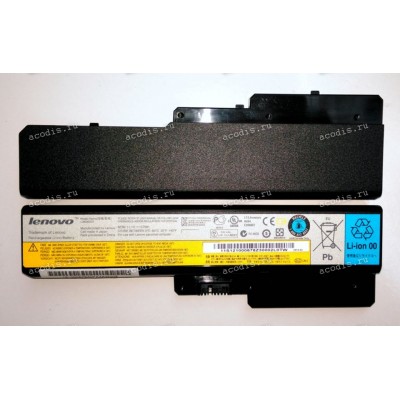

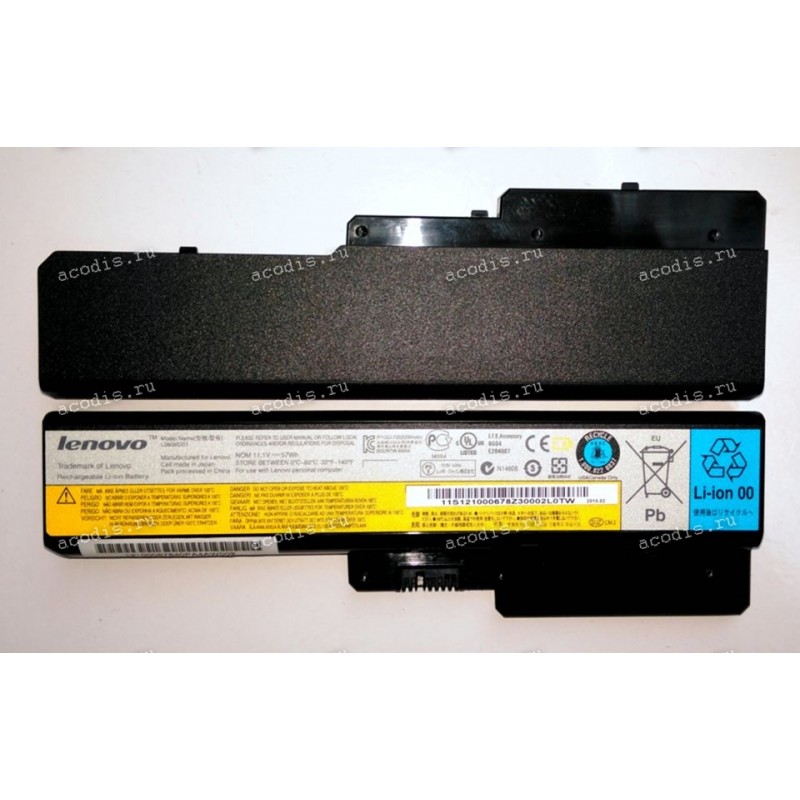

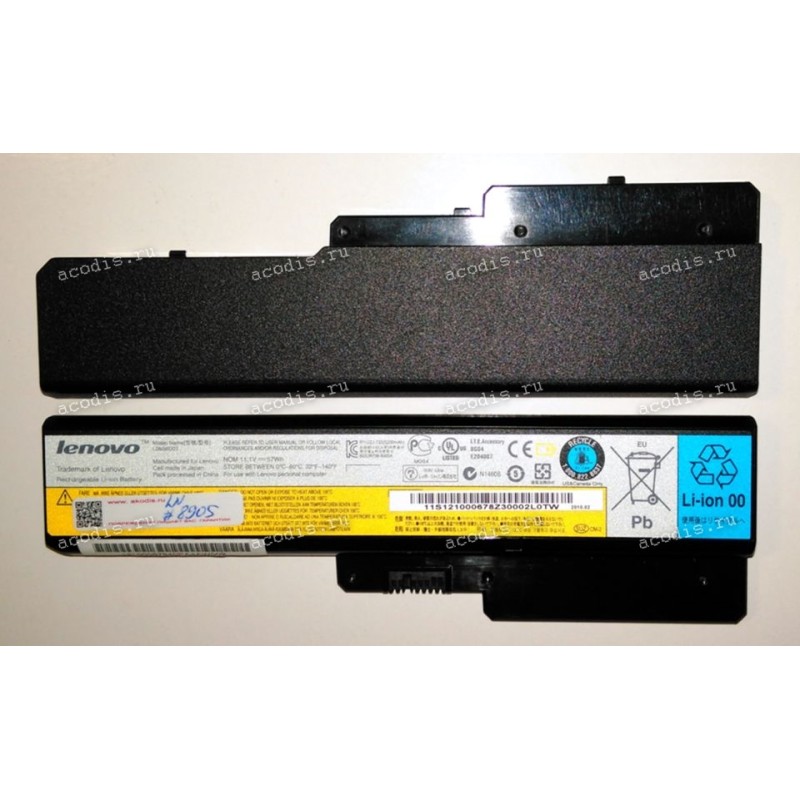

АКБ Lenovo IdeaPad V430, V430A, V450, V450A, Y420, Y430, Y430A, Y430G (L08S6D01, 121000678) 14,4V NEW original

Аналоги

L08S6D01 L08O6D01 L08O6D02 121000678 LB121000678 11S121000678Z 45K2221

Модели подходящих товаров

Lenovo IdeaPad V430 Lenovo IdeaPad V430A Lenovo IdeaPad V450 Lenovo IdeaPad V450A Lenovo IdeaPad Y430 Lenovo IdeaPad Y430A Lenovo IdeaPad Y430G Lenovo IdeaPad Y420 Lenovo IdeaPad 20005 Lenovo IdeaPad 2781 Lenovo IdeaPad Y430 2781

NEW original

Распиновка = pinout

RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (3) = ключ, пластиковый пин, перегородка

3 (4) = SMBC, SLC (CLOCK pin) coffee/broun

4 (5) = SMBD, SDA (DATA pin) orange

5 (6) = BATT_TEMP, NTC, Termistor

6 (7) = GND ("-", Ground, VSS) black

7 (8) = GND ("-", Ground, VSS) black
