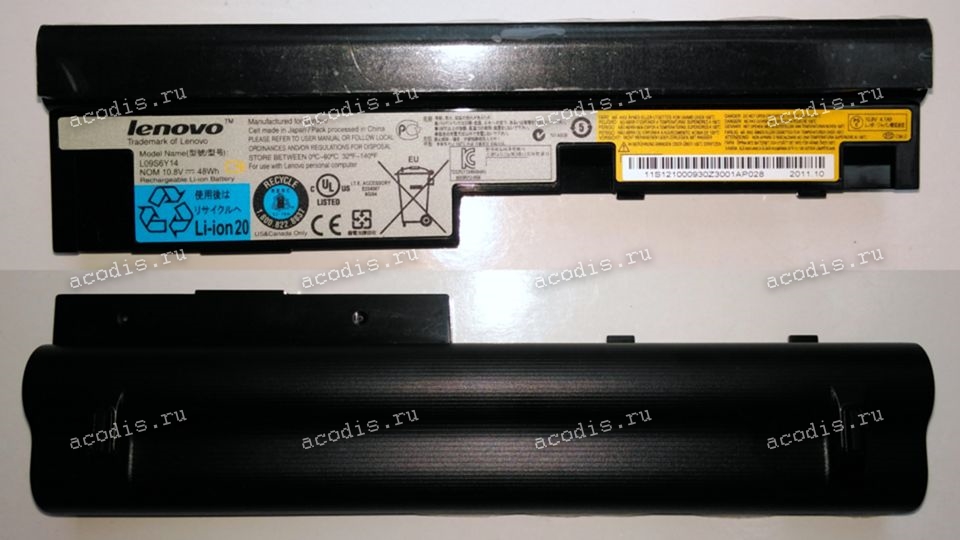

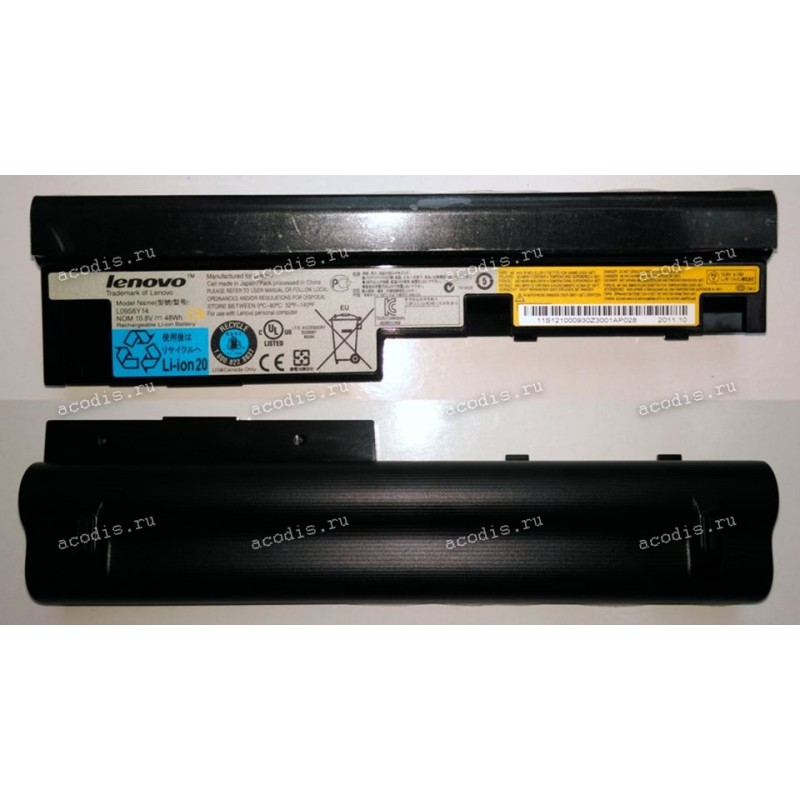

АКБ Lenovo IdeaPad S100, S110, S10-3, S205, U160, U165 усиленная 10,8-11,1V NEW original

Артикул:

00000008904

Базовая цена

По запросу

В корзину!

Цена от 5 штук:

Наличие нет

Характеристики АКБ Lenovo IdeaPad S100, S110, S10-3, S205, U160, U165 усиленная 10,8-11,1V NEW original

NEW original

Распиновка = pinout

RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (3) = ключ, пластиковый пин, перегородка

3 (4) = SMBC, SLC (CLOCK pin) coffee/broun

4 (5) = SMBD, SDA (DATA pin) orange

5 (6) = BATT_TEMP, Termistor

6 (7) = GND ("-", Ground, VSS) black

7 (8) = GND ("-", Ground, VSS) black

Описание: АКБ Lenovo IdeaPad S100, S110, S10-3, S205, U160, U165 усиленная 10,8-11,1V NEW original

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo IdeaPad S100, S110, S10-3, S205, U160, U165 усиленная 10,8-11,1V NEW original

Lenovo IdeaPad S100 Lenovo IdeaPad S100c Lenovo IdeaPad S110 Lenovo IdeaPad S10-3 Lenovo IdeaPad S10-3 0647 Lenovo IdeaPad S10-3 0647-29U Lenovo IdeaPad S10-3 0647-29U Lenovo IdeaPad S10-3 0647-2AU Lenovo IdeaPad S10-3 0647-2BU Lenovo IdeaPad S10-3 0647-2BU Lenovo IdeaPad S10-3 064735U Lenovo IdeaPad S10-3 064737U Lenovo IdeaPad S10-3 064738U Lenovo IdeaPad S10-3 064746U Lenovo IdeaPad S10-3 06474CU Lenovo IdeaPad S10-3 064752M Lenovo IdeaPad S10-3 064757M Lenovo IdeaPad S10-3 064759M Lenovo IdeaPad S10-3 0647EBV Lenovo IdeaPad S10-3 0647EFV Lenovo IdeaPad S10-3 20039 Lenovo IdeaPad S10-3 59-045096 Lenovo IdeaPad S10-3 M33D3UK Lenovo IdeaPad S10-3c Lenovo IdeaPad S205 Lenovo IdeaPad S205s Lenovo IdeaPad U160 Lenovo IdeaPad U160-08945KU Lenovo IdeaPad U160-08945LU Lenovo IdeaPad U160-08945MU Lenovo IdeaPad U165 Lenovo IdeaPad U165-AON Lenovo IdeaPad U165-AT Lenovo IdeaPad U165-ATH Lenovo IdeaPad S10-3s

121000919 121000920 121000921 121000922 121000925 121000926 121000927 121000928 121000929 121000930 121000931 121000932 121001117 121001118 121001119 121001138 121001139 121001141 3ICR19/65-2 3ICR19/66 57Y6442 57Y6446 57Y6448 57Y6517 57Y6519 57Y6522 57Y6524 57Y6631 57Y6632 57Y6633 57Y6634 57Y6652 57Y6653 57Y6654 57Y6655 57Y6656 57Y6657 57Y6658 57Y6659 L09C3B14 L09C3Z14 L09C6Y14 L09M3Z14 L09M6Y14 L09M6Z14 L09S3Z14 L09S6Y1 L09S6Y14 L10M3Z11 L10M6Y12
