АКБ Lenovo/IBM ThinkPad 59+ T400s, T410s, T410si, X200s. X201 = №59+ (42T4832, 42T4689, 11S42T4689Z) 11,1V NEW original

АКБ Lenovo/IBM ThinkPad 59+ T400s, T410s, T410si, X200s. X201 = №59+ (42T4832, 42T4689, 11S42T4689Z) 11,1V NEW original
  • Производитель:
    Lenovo=IBM
  • Артикул:
    00000008889
2 170 руб.
Клубная цена: 2 100 руб.
Наличие: ДА

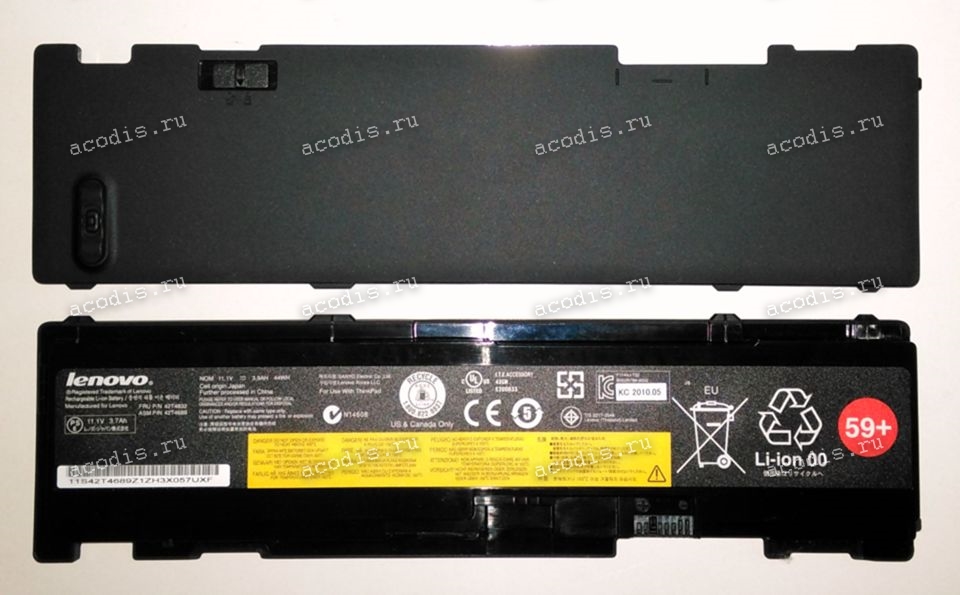

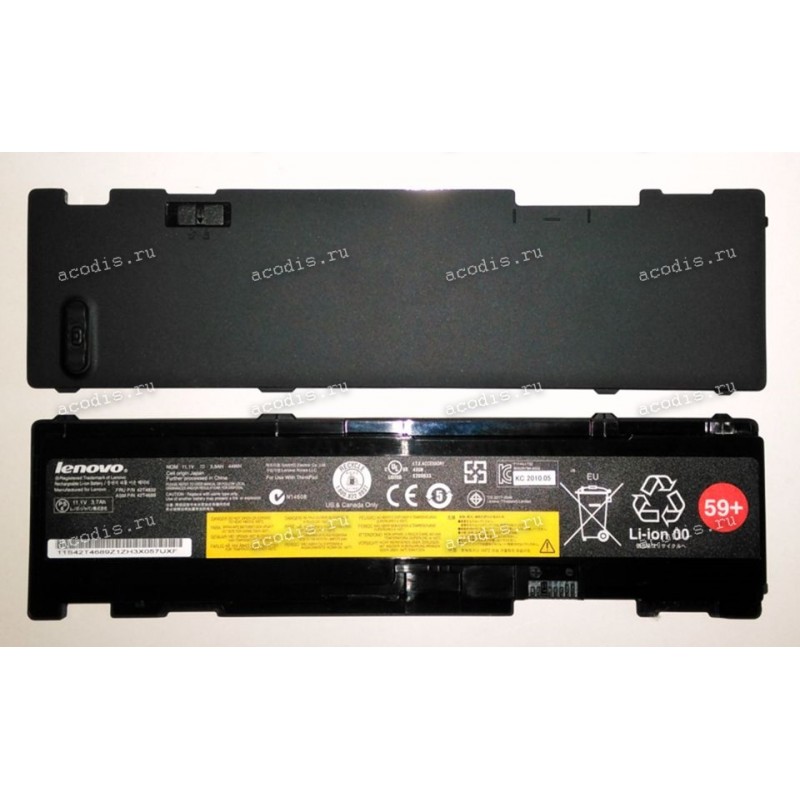

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo/IBM ThinkPad T400s, T410s, T410si, X200s. X201 = №59+ (42T4832, 42T4689, 11S42T4689Z) 11,1V NEW original

Аналоги

42T4832 42T4689 11S42T4689Z 42T4688 42T4690 42T4691 42T4832 42T4833 51J0497 42T4689

Модели подходящих товаров

Lenovo ThinkPad T410s Lenovo ThinkPad X200s Lenovo ThinkPad X201 Lenovo ThinkPad T400s 2801 Lenovo ThinkPad T400s 2808 Lenovo ThinkPad T400s 2809 Lenovo ThinkPad T400s 2815 Lenovo ThinkPad T400s 2823 Lenovo ThinkPad T400s 2824 Lenovo ThinkPad T400s 2825 Lenovo ThinkPad T410si

NEW original

Распиновка = pinout

RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

X (3) = ключ, пластиковый пин, перегородка

3 (4) = SMBC, SLC (CLOCK pin) coffee/broun

4 (5) = SMBD, SDA (DATA pin) orange

5 (6) = BATT_TEMP, NTC, Termistor

6 (7) = GND ("-", Ground, VSS) black

7 (8) = GND ("-", Ground, VSS) black
