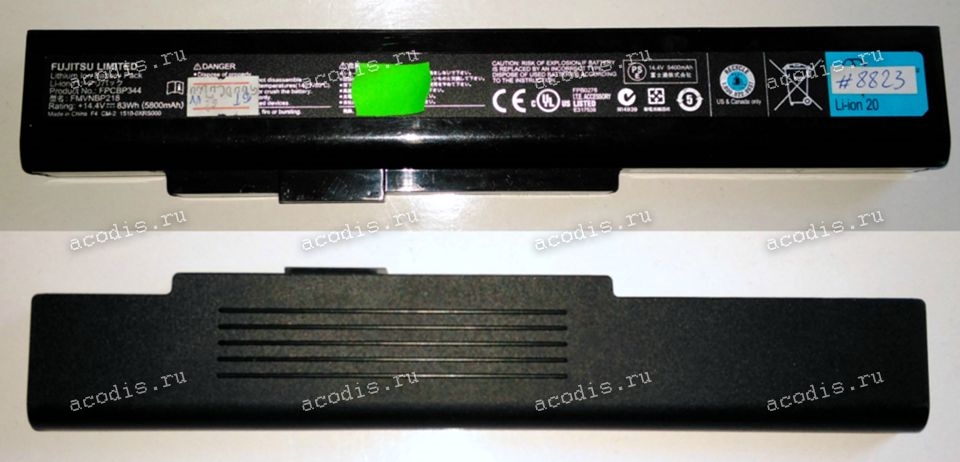

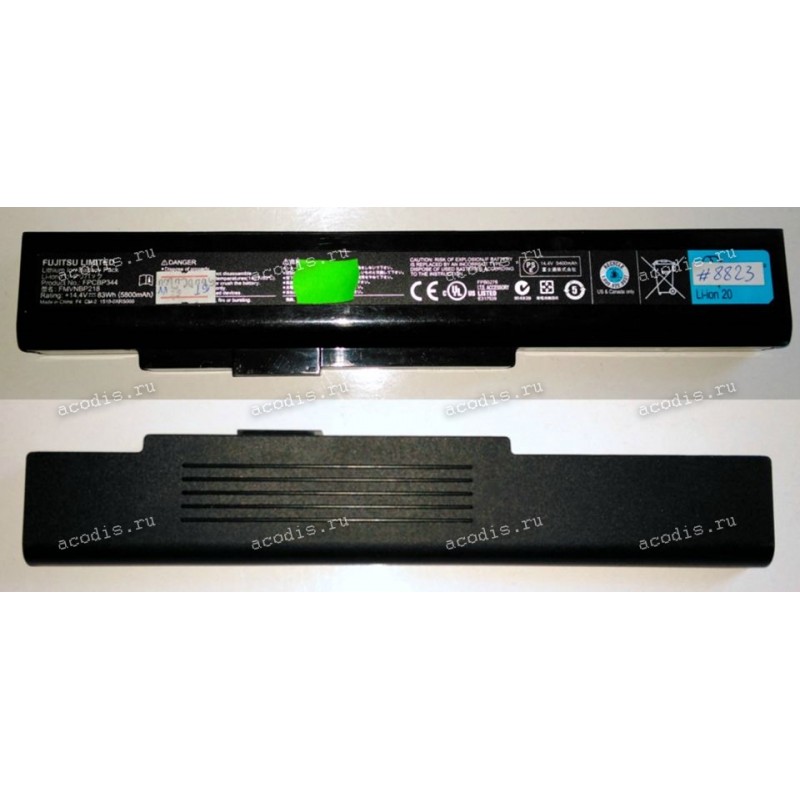

АКБ Fujitsu Siemens LifeBook G52, N532, N532/E, NH532 (A42-A15 = FPCBP344, FMVNBP218, CP569292-01) 14,8V разбор 38019866 FUJ:CP569292-XX -BT-1ST BATTERY (8 CELLS) 5800MAH
- Производитель:
-
Артикул:00000008823
- 99999
Аналоги
FPCBP344
FMVNBP218
CM-2
1510-0XRS000
CP569292-01
A15LB4H
0B20-014T000M-0B0BC-221-037D
FMVNBP217
FPCBP343
FPCBP343AP
FPCBP344AP
FUJ:CP569292-XX
38019866
A32-A15
A41-A15
A42-A15
A42-H36
2ZR10-01307-P20S
A15L626
0B20-00X3000M-00A1A
Модели подходящих товаров
Fujitsu Siemens LifeBook G52 Fujitsu Siemens LifeBook N532 Fujitsu Siemens LifeBook N532/E Fujitsu Siemens LifeBook NH532 Medion Akoya E6222/E7219(MD97874/MD97877/MD97879)/E6228(MD98980/MD99050)/E7220/P6816/P7816/P7818/X6816 Series Gigabyte Q2532N Series Pegatron A35YA/A35FB/A35FE Series DNS 0158172 Series DNS A17FD Fujitsu Lifebook N532/NH532 Series MSI A6400 CR640 CR640DX CR640MX CR640X CX640 CX640DX CX640MX Medion Akoya E6221 (MD97744/MD97768)/E6222/E6227/E6228 E7219 (MD98980/MD99050 MD98930)/E6234 (MD99090)/E7201/E7219/E7220 (MD97874)/E7221/E7222 (MD98109) серии Medion Akoya P6631/P6634/P6815/P7621/P7815/P7816 (MD97886/MD97889/MD98383) серии Medion Erazer X6815/ERAZER X6816 (MD97888) серии Для MSI A6400/CX640 (MS-16Y1)/CR640 серии A6400-Ci507 S, CR640, CR640-32312G32SX, CR640-72632G50SX, CX640, CX640-013US, CX640-018UK, CX640-028AU, CX640-035US, CX640-043XCN, CX640-046XPL, CX640-053NE, CX640-071US, CX640-72632G50SX, CX640-i547W7P, CX640MX DNS 142750/153734/157296/157908/158636 серии Gigabyte серии Q2532N DNS 142750/153734/157296/157908/158636 DNS 0133807 DNS A15HE
восстановленный с новыми элементами
Возможно потребуется предоставить старый АКБ для замены элементов
Распиновка = pinout
RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)
1 = GND ("-", Ground, VSS) black
2 = GND ("-", Ground, VSS) black
3 =
4 = SMBD, SDA (DATA pin) orange
5 = SMBC, SLC (CLOCK pin) coffee/broun
6 =
7 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)
8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
