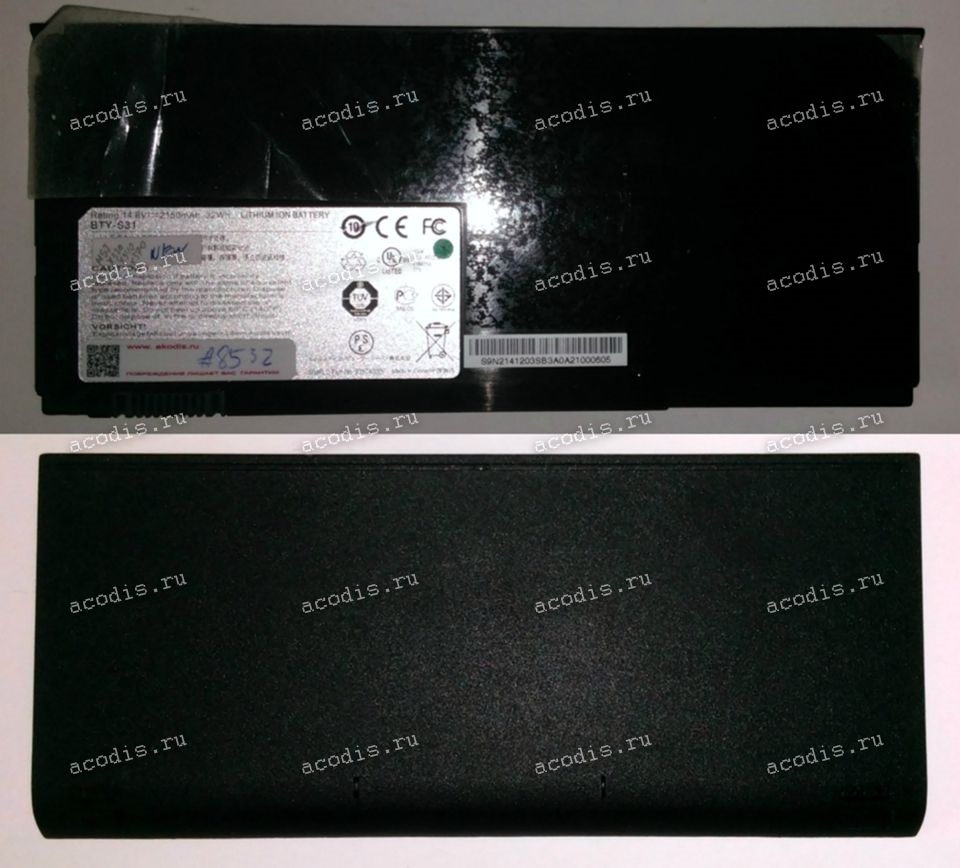

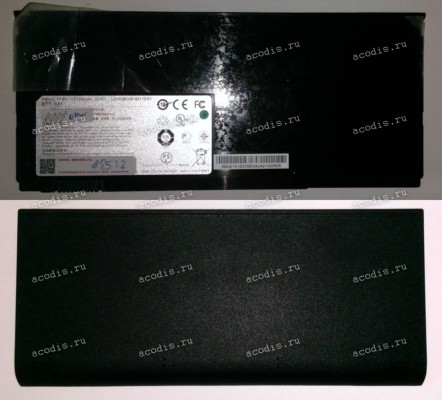

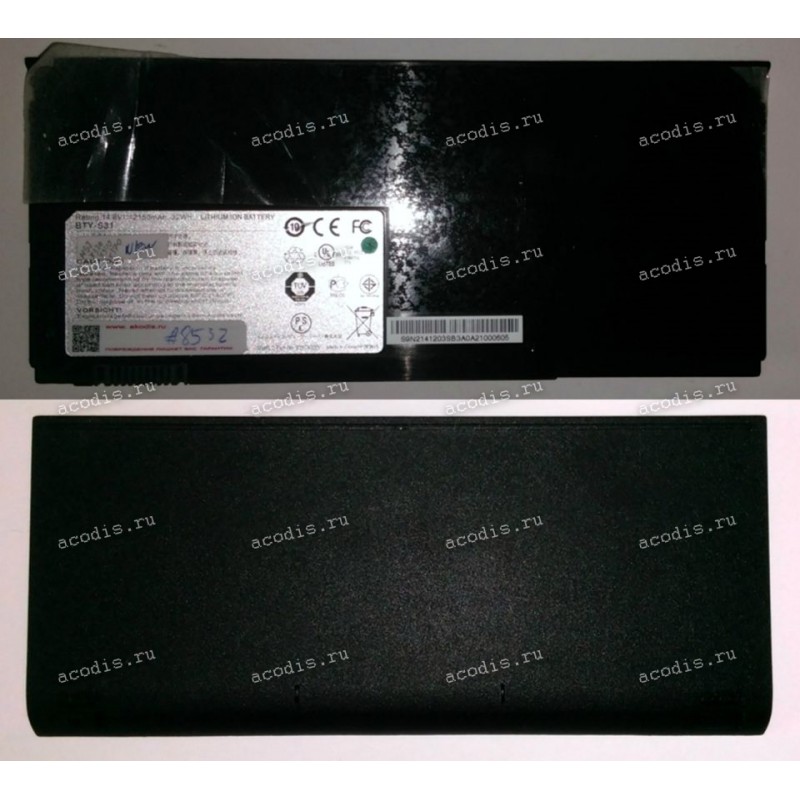

АКБ MSI X320, X340, X350, X360, X370, X400, X410, X420, X430, X620 (BTY-S31) 14.8V NEW original

Аналоги

BTY-S31 BTY-S32 925TA022F S9N2141203SB3A0A21000605 S9N-2141203-SB3

Модели подходящих товаров

MSI X320 MSI X340 MSI X350 MSI X360 MSI X370 MSI X400 MSI X400X MSI X410 MSI X410X MSI X420 MSI X430 MSI X620

NEW

Распиновка = pinout

RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = GND ("-", Ground, VSS) black

2 =

3 =

4 = SMBD, SDA (DATA pin) orange

5 = SMBC, SLC (CLOCK pin) coffee/broun

6 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

7 =

8 =

9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
