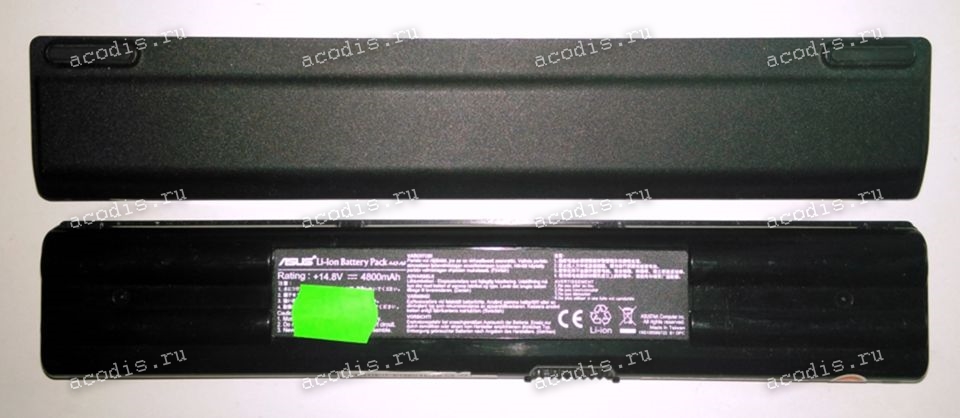

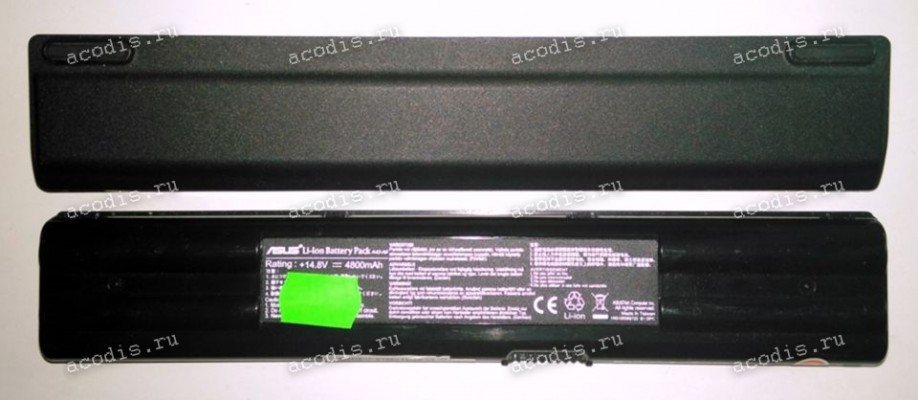

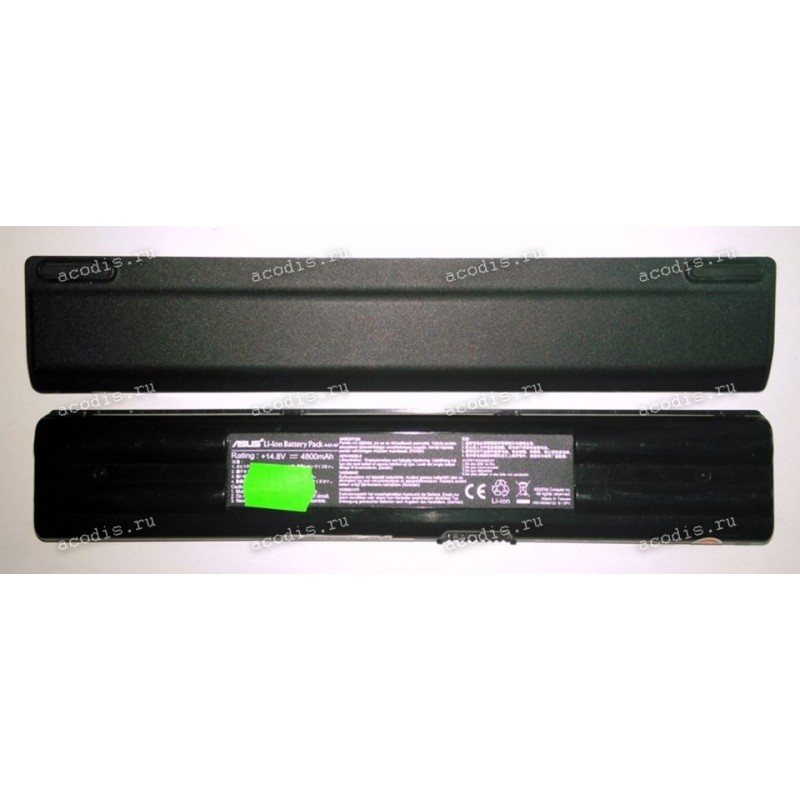

АКБ Asus A3*, A3000*, A3500L, A6*, A6000*, A7*, G1*, Z9000*, Z91*, Z9100*, Z92*, Z9200* (A42-A6) 14.8V разбор
- Производитель:
-
Артикул:00000008479
- 99998
Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Asus A3, A3000, A3000E, A3000G, A3000L, A3000N, A3500L, A38N, A3Ac, A3E, A3Fc, A3Fp, A3G, A3H, A3Hf, A3L, A3N, A3Vc, A3Vp, A6, A6000, A6000E, A6000Ga, A6000J, A6000Ja, A6000K, A6000L, A6000N, A6000Ne, A6000R, A6000U, A6000V, A6000Va, A6000Vc, A6000Vm, A6B, A6E, A6F, A6G, A6Ga, A6J, A6Ja, A6Jc, A6Je, A6Jm, A6K, A6Km, A6Kt, A6L, A6M, A6N, A6Ne, A6Q00v, A6R, A6Rp, A6T, A6Tc, A6U, A6V, A6Va, A6Vc, A6Vm, A7, A7C, A7Cd, A7D, A7Db, A7Dc, A7F, A7G, A7Gb, A7Gc, A7J, A7Jb, A7Jc, A7K, A7M, A7Mb, A7Mc, A7S, A7SV, A7T, A7Tb, A7Tc, A7U, A7V, A7Vb, A7Vc, G1, G1S, G1S , G2, G2K, G2P, G2Pb, G2Pc, G2S, G2Sg, Z9000, Z91, Z9100, Z9100E, Z9100ER, Z9100G, Z9100L, Z9100N, Z91E, Z91ER, Z91G, Z91L, Z91N, Z92, Z9200Vc, Z92J, Z92Jc, Z92R, Z92T, Z92V, Z92Vc, Z92Vm (A42-A6) 14.8V разбор
Из разобранных аппаратов
Распиновка = pinout
RF-25-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)
1 = GND ("-", Ground, VSS) black
X (2) = ключ, пластиковый пин, перегородка
2 (3) = GND ("-", Ground, VSS) black
3 (4) = BATT_TEMP, NTC, Termistor
4 (5) = SMBC, SLC (CLOCK pin) coffee/broun
5 (6) = SMBD, SDA (DATA pin) orange
6 (7) = NC (not connected)
7 (8) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
8 (9) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
