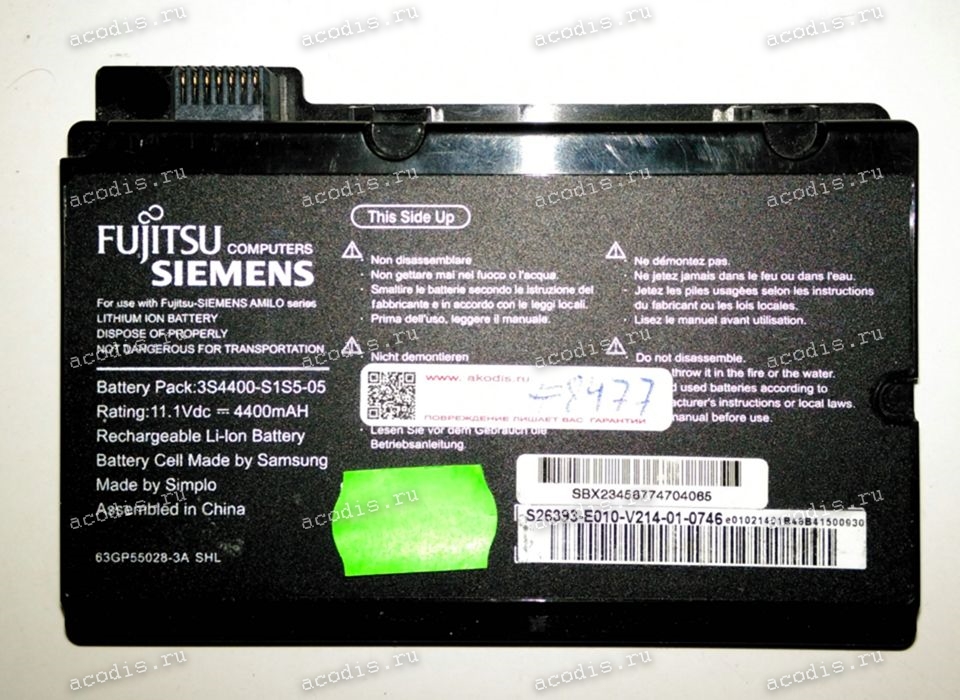

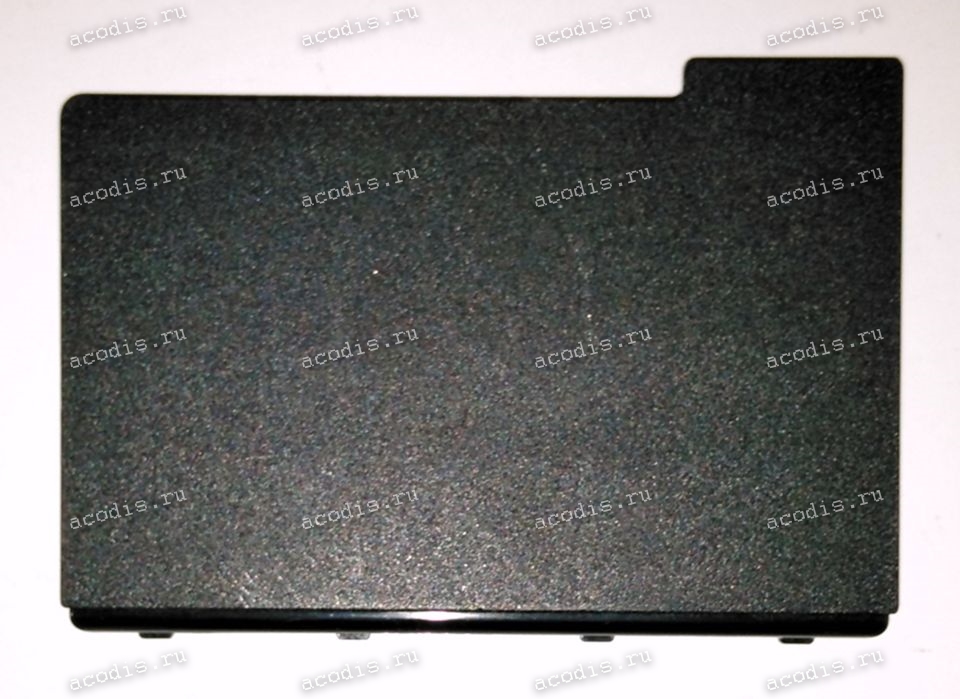

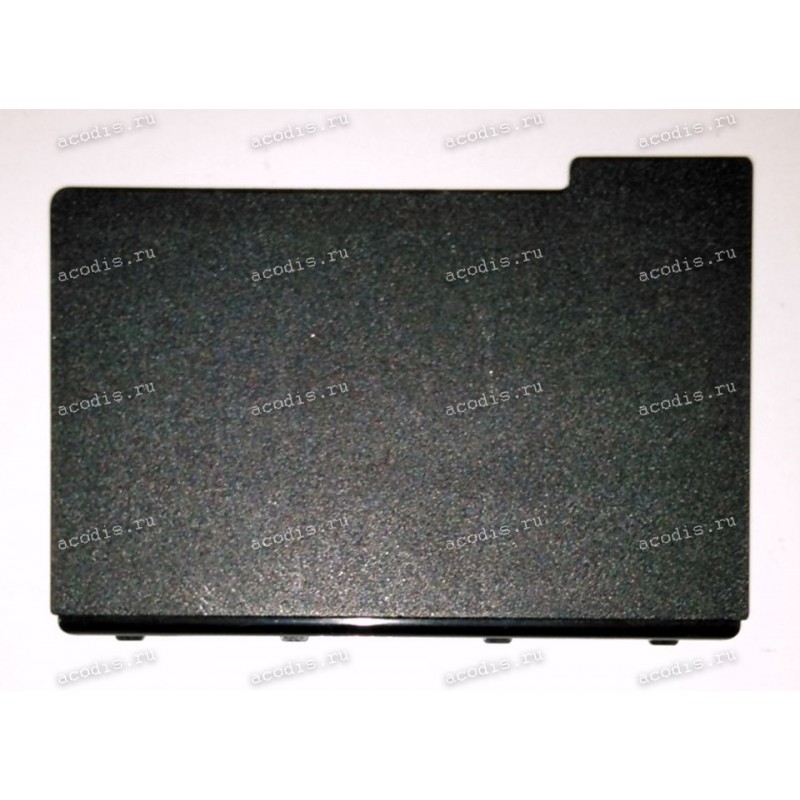

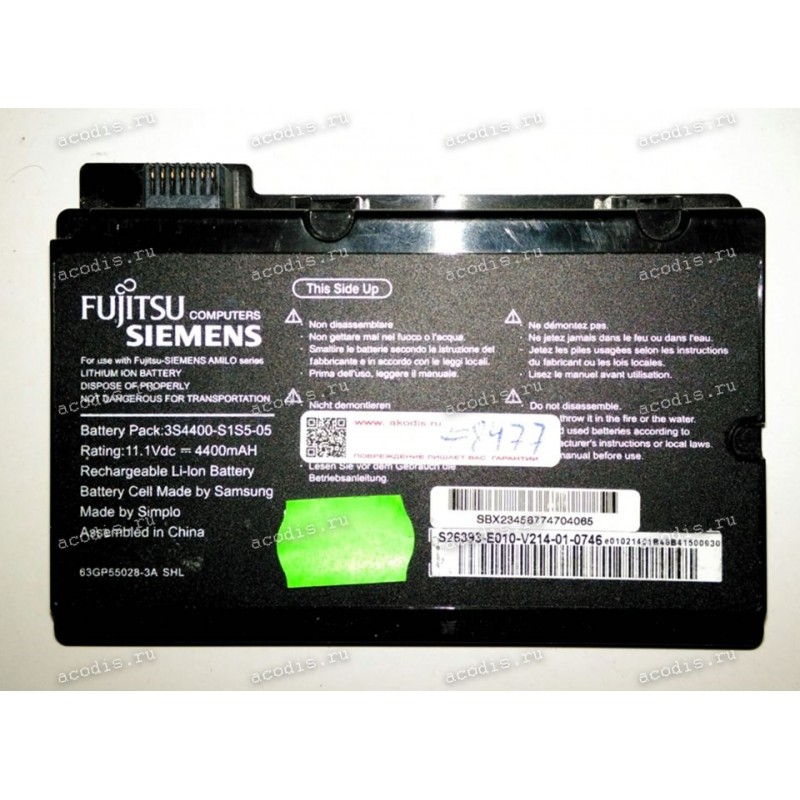

АКБ Fujitsu Siemens Amilo Pi2450, Pi2530, Pi2540, Pi2550, Pi3525, Pi3540, Xi2428, Xi2528, Xi2548, Xi2550, Xi3450, One C7000, C7002, C7010, UNIWILL P55IM, P75IM0, GERICOM Supersonic P55IM HD (3S4400-S3S6-07, 3S4400-S1S5-05) чёрный 11,1V Б/У < 50 %

Аналоги

23GF50G1F-KA 23GP55A1F-9A 23GUG5A1F-8A 26393-E010-V214 3S3600-S1A1-07 3S4400-C1S1-07 3S4400-C1S5-07 3S4400-C1S5-087 3S4400-G1L3-05 3S4400-G1S2-05 3S4400-S1S5-05 3S4400-S1S5-07 3S4400-S3S6-07 3S4400-S1P3-02 63GP55026-7A 63gp55026-7а 63GP550280-3A 63gp550280-3а P55-3S4400-S1S5 P55-4S4400-S1S5 S26393-E010-V214 S26393-E010-V214-01-0746 S26393-E010-V214-01-0747 S26393-E010-V224-01-0803 S26393-E030-V274-01-0831

Модели подходящих товаров

Fujitsu Siemens Amilo Pi2450 Fujitsu Siemens Amilo Pi2530 Fujitsu Siemens Amilo Pi2540 Fujitsu Siemens Amilo Pi2550 Fujitsu Siemens Amilo Pi3525 Fujitsu Siemens Amilo Pi3540 Fujitsu Siemens Amilo Xi2428 Fujitsu Siemens Amilo Xi2528 Fujitsu Siemens Amilo Xi2548 Fujitsu Siemens Amilo Xi2550 Fujitsu Siemens Amilo Xi3450 Fujitsu Siemens Amilo One C7000 Fujitsu Siemens Amilo One C7002 Fujitsu Siemens Amilo One C7010 UNIWILL P55IM UNIWILL P75IM0 GERICOM Supersonic P55IM HD

Из разобранных аппаратов

Распиновка = pinout

RF-20-7 (RFNT3) = CON20 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = GND ("-", Ground, VSS) black

2 = GND ("-", Ground, VSS) black

3 =

4 =

5 = SMBD, SDA (DATA pin) orange

6 = SMBC, SLC (CLOCK pin) coffee/broun

7 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
