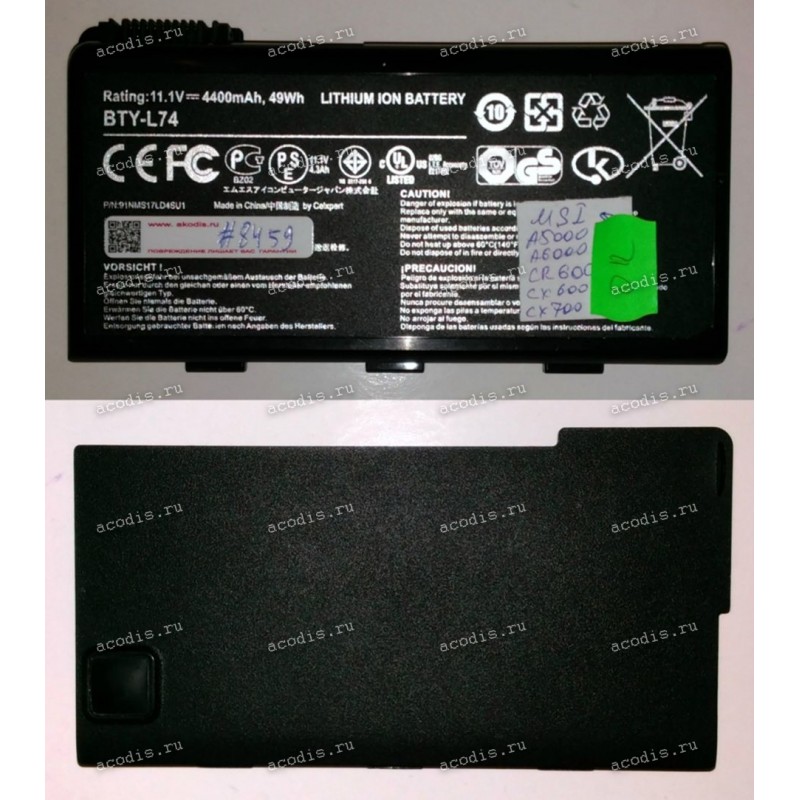

АКБ MSI A5000, A6000, A6200, CR500, CR600, CR610, CR620, CR630, CR700, CX500, CX600, CX610, CX620, CX700, GE700 (BTY-L74) 11.1V разбор

АКБ MSI A5000, A6000, A6200, CR500, CR600, CR610, CR620, CR630, CR700, CX500, CX600, CX610, CX620, CX700, GE700 (BTY-L74) 11.1V разбор

Артикул:
00000008459
Базовая цена
1 100 р.
-
+
В корзину!
Цена от 5 штук:
1000
Наличие мало

Характеристики АКБ MSI A5000, A6000, A6200, CR500, CR600, CR610, CR620, CR630, CR700, CX500, CX600, CX610, CX620, CX700, GE700 (BTY-L74) 11.1V разбор

Из разобранных аппаратов

Распиновка = pinout

RF-20-9 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо)

1 = GND ("-", Ground, VSS) black

2 = GND ("-", Ground, VSS) black

3 =

4 = SMBD, SDA (DATA pin) orange

5 = SMBC, SLC (CLOCK pin) coffee/broun

6 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

7 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

Описание: АКБ MSI A5000, A6000, A6200, CR500, CR600, CR610, CR620, CR630, CR700, CX500, CX600, CX610, CX620, CX700, GE700 (BTY-L74) 11.1V разбор

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) MSI A5000, A6000, A6200, CR500-019L, CR600, CR600-001ru, CR600-013US, CR600-017US, CR600-234US, CR610, CR610-001NL, CR610-003HU, CR610-005, CR610-006, CR610-006NE, CR610-007PL, CR610-009PL, CR610-011IT, CR610-013, CR610-013UK, CR610-016UK, CR610-026XCZ, CR610-027XSK, CR610-028X, CR610-028XHU, CR610-031LRU, CR610-033, CR610-050BE, CR610-051, CR610-058PL, CR610-059PL, CR610-060XPL, CR610-061XPL, CR610-062NL, CR610-063BE, CR610-070X, CR610-070XEU, CR610-075AR, CR610-081XHU, CR610-091XBL, CR610-092XAR, CR610-097RU, CR610-0W1XBL, CR610-0W2XEU, CR610-M1005Q, CR610-M1023W7P, CR610-M1025W7P, CR610-M1226W7P, CR610-M320, CR610-M3243W7P, CR620, CR620-203L, CR620-204, CR620-845X, CR620-871X, CR630-009, CR630-010X, CR700, CR700 MS-1734, CR700-012US, CR700-013NL, CR700-017CA, CR700-024, CR700-034, CR700-038PL, CR700-047US, CR700-060X, CR700-063X, CR700-068XEU, CR700-070XSK, CR700-071XHU, CR700-075, CR700-085FR, CR700-099NL, CR700-200BE, CR700-202XEU, CR700-204BE, CR700-205NE, CR700-206RU, CR700-211, CR700-211FR, CR700-220XCZ, CR700-221XSK, CR700-2226, CR700-223L, CR700-223LRU, CR700-231, CR700-T3035FD, CR700-T6600, CR700X-029EU, CX500-034, CX500-473, CX500-644, CX600, CX600-049US, CX600-064UK, CX-600-T4343W7P, CX610-050BE, CX620, CX620-039, CX620-049, CX620-274, CX620-282, CX620-423, CX620MX-208, CX623-080, CX623-201, CX623-241, CX623-264, CX623-283, CX623-401, CX623-407X, CX623-408, CX623-409, CX700, CX700-056, CX720-088, GE700-018, MS-3801, MS-6890, MS-6891 (BTY-L74) 11.1V разбор
MS-3801 MS-6890 MS-6891 MSI A5000 MSI A6000 MSI A6200 MSI CR500-019L MSI CR600 MSI CR600-001ru MSI CR600-013US MSI CR600-017US MSI CR600-234US MSI CR610 MSI CR610-001NL MSI CR610-003HU MSI CR610-005 MSI CR610-006 MSI CR610-006NE MSI CR610-007PL MSI CR610-009PL MSI CR610-011IT MSI CR610-013 MSI CR610-013UK MSI CR610-016UK MSI CR610-026XCZ MSI CR610-027XSK MSI CR610-028X MSI CR610-028XHU MSI CR610-031LRU MSI CR610-033 MSI CR610-050BE MSI CR610-051 MSI CR610-058PL MSI CR610-059PL MSI CR610-060XPL MSI CR610-061XPL MSI CR610-062NL MSI CR610-063BE MSI CR610-070X MSI CR610-070XEU MSI CR610-075AR MSI CR610-081XHU MSI CR610-091XBL MSI CR610-092XAR MSI CR610-097RU MSI CR610-0W1XBL MSI CR610-0W2XEU MSI CR610-M1005Q MSI CR610-M1023W7P MSI CR610-M1025W7P MSI CR610-M1226W7P MSI CR610-M320 MSI CR610-M3243W7P MSI CR620 MSI CR620-203L MSI CR620-204 MSI CR620-845X MSI CR620-871X MSI CR630-009 MSI CR630-010X MSI CR700 MSI CR700 MS-1734 г. MSI CR700-012US MSI CR700-013NL MSI CR700-017CA MSI CR700-024 MSI CR700-034 MSI CR700-038PL MSI CR700-047US MSI CR700-060X MSI CR700-063X MSI CR700-068XEU MSI CR700-070XSK MSI CR700-071XHU MSI CR700-075 MSI CR700-085FR MSI CR700-099NL MSI CR700-200BE MSI CR700-202XEU MSI CR700-204BE MSI CR700-205NE MSI CR700-206RU MSI CR700-211 MSI CR700-211FR MSI CR700-220XCZ MSI CR700-221XSK MSI CR700-2226 MSI CR700-223L MSI CR700-223LRU MSI CR700-231 MSI CR700-T3035FD MSI CR700-T6600 MSI CR700X-029EU MSI CX500-034 MSI CX500-473 MSI CX500-644 MSI CX600 MSI CX600-049US MSI CX600-064UK MSI CX-600-T4343W7P MSI CX610-050BE MSI CX620 MSI CX620-039 MSI CX620-049 MSI CX620-274 MSI CX620-282 MSI CX620-423 MSI CX620MX-208 MSI CX623-080 MSI CX623-201 MSI CX623-241 MSI CX623-264 MSI CX623-283 MSI CX623-401 MSI CX623-407X MSI CX623-408 MSI CX623-409 MSI CX700 MSI CX700-056 MSI CX720-088 MSI GE700-018
91NMS17LD4SU1 91NMS17LF6SU1 957-173XXP-101 957-173XXP-102 BTY-L74 BTY-L75 MS-1682 S9N-2062210-M47
