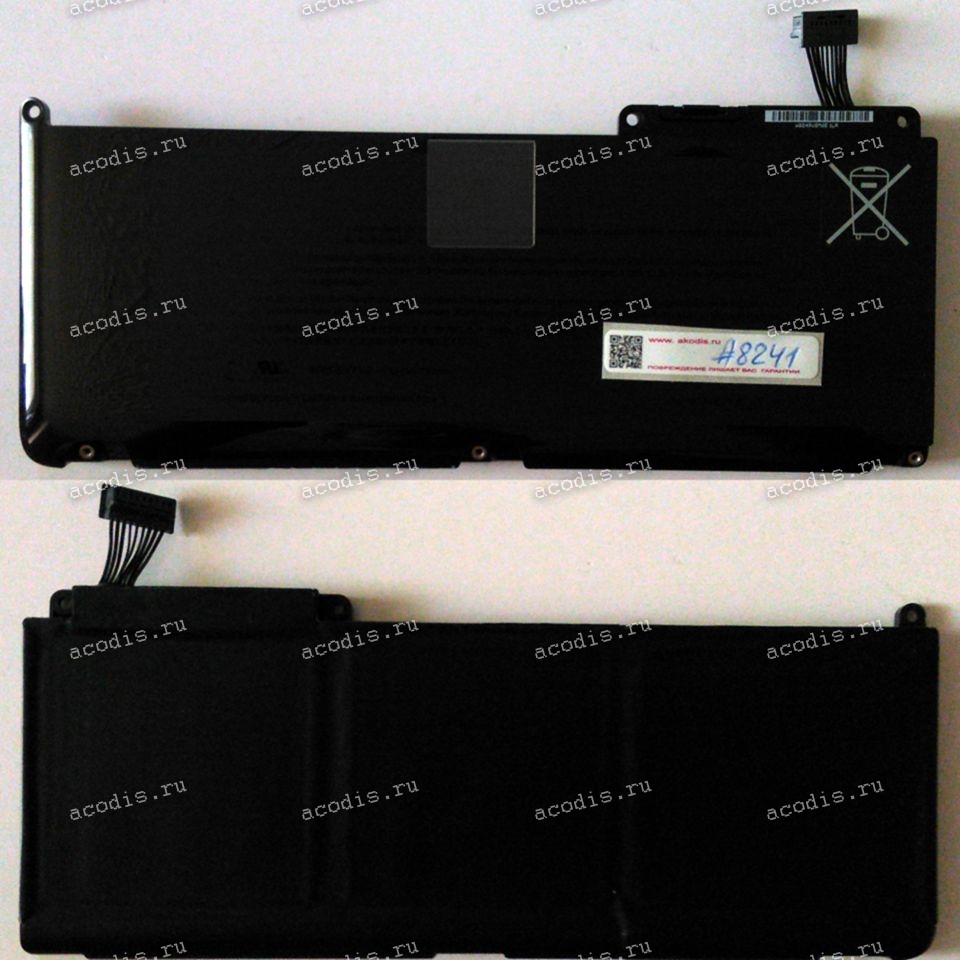

АКБ Apple MacBook Pro Unibody 13" A1331, A1342 (Late 2009 - Mid 2010)

Аналоги

A1331 3ICP5/69/71-2 020-6580-A 020-6582-A 020-6809-A 020-6810-A 661-5391 A1342

Модели подходящих товаров

MacBook Pro Unibody 13" A1342 MacBook Pro Unibody 13" MC207 MacBook Pro Unibody 13" MC516 MacBook Pro Unibody 13" A1331 Apple MacBook Pro MC371/A 15-inch Apple MacBook Pro MC371CH/A 15-inch Apple MacBook Pro MC371J/A 15-inch Apple MacBook Pro MC371LL/A 15-inch Apple MacBook Pro MC371TA/A 15-inch Apple MacBook Pro MC371X/A 15-inch Apple MacBook Pro MC371ZP/A 15-inch Apple MacBook Pro MC372/A 15-inch Apple MacBook Pro MC372CH/A 15-inch Apple MacBook Pro MC372J/A 15-inch Apple MacBook Pro MC372LL/A 15-inch Apple MacBook Pro MC372TA/A 15-inch Apple MacBook Pro MC372X/A 15-inch Apple MacBook Pro MC372ZP/A 15-inch Apple MacBook Pro MC373/A 15-inch Apple MacBook Pro MC373J/A 15-inch Apple MacBook Pro MC373LL/A 15-inch Apple MacBook Pro MC373TA/A 15-inch Apple MacBook Pro MC373X/A 15-inch Apple MacBook Pro MC373ZP/A 15-inch

Из разобранных аппаратов

Распиновка = pinout

Разъём контактами вниз, кабелем к себе, слева направо

1 = GND ("-", Ground, VSS) black

2 = GND ("-", Ground, VSS) black

3 = GND ("-", Ground, VSS) black

4 = SMBC, SLC (CLOCK pin) coffee/broun

5 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

6 = SMBD, SDA (DATA pin) orange

7 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
