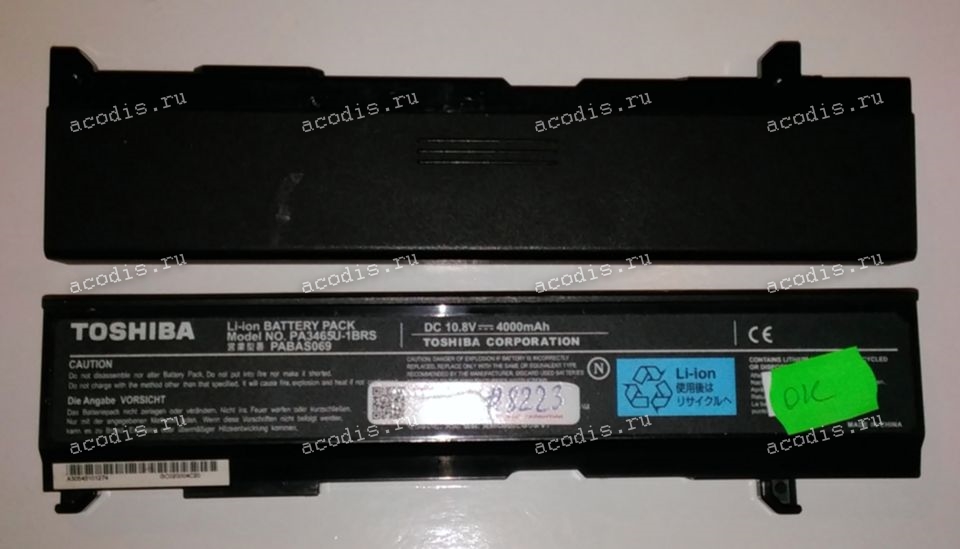

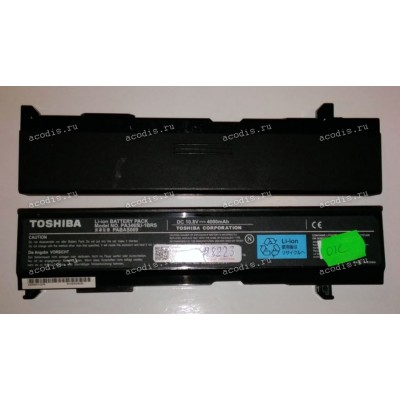

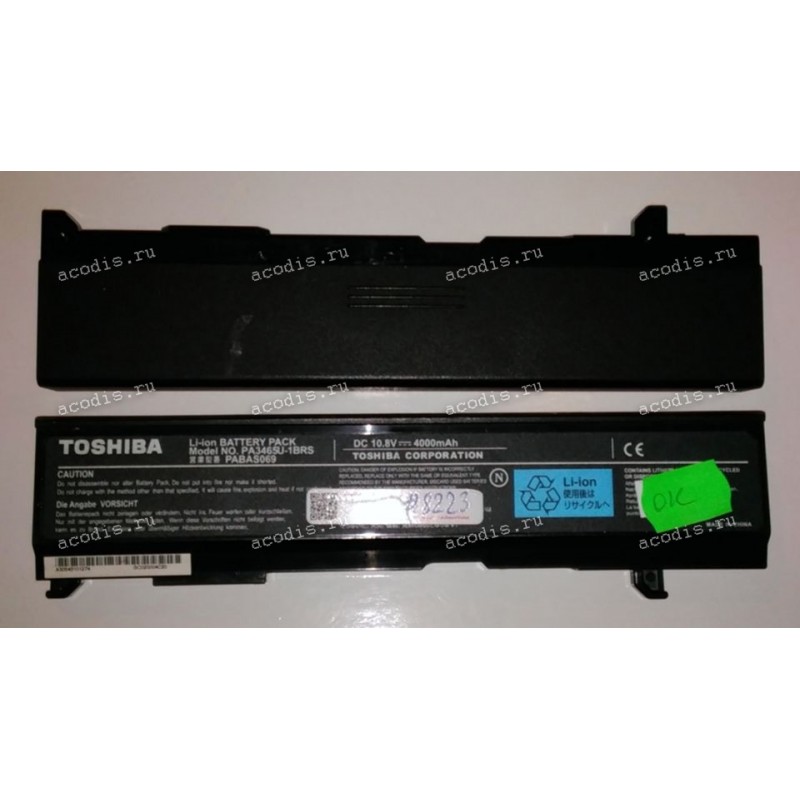

АКБ Toshiba Equium A100, M50, M70, Satellite A100, A105, A110, A135, A80, A85, M105, M115, M40, M45, M50, M55, M70 (PA3465U-1BRS, PABAS069) 10,8V разбор
Артикул:
00000008223
Базовая цена
| - |
|
+ |
Цена от 5 штук:
900
Наличие мало
Характеристики АКБ Toshiba Equium A100, M50, M70, Satellite A100, A105, A110, A135, A80, A85, M105, M115, M40, M45, M50, M55, M70 (PA3465U-1BRS, PABAS069) 10,8V разбор
Из разобранных аппаратов
Распиновка = pinout RF-25-8 (RFNT3) (схема - разрезами контактов вверх и к себе - слева направо) 1 (1) = GND ("-", Ground, VSS) black 2 (2) = SMBC, SLC (CLOCK pin) coffee/broun 3 (3) = SMBD, SDA (DATA pin) orange 4 (4) = BATT_TEMP, Termistor 5 (5) = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active) 6 (6) = !!! (7) = ключ, пластиковый пин, перегородка 7 (8) = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red |
Описание: АКБ Toshiba Equium A100, M50, M70, Satellite A100, A105, A110, A135, A80, A85, M105, M115, M40, M45, M50, M55, M70 (PA3465U-1BRS, PABAS069) 10,8V разбор
Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Toshiba Equium A100, M50, M70, Satellite A100, A105, A110, A135, A80, A85, M105, M115, M40, M45, M50, M55, M70, Satellite Pro A100, M40, M50, M70, Dynabook AX/530LL, AX/550LS, AX/55A, AX/57A, AX/630LL, AX/650LS, AX/730LS, AX/740LS, AX/745LS, AX/840LS, AX/940LS, CX/835LS, CX/935LS, TW/750LS, TX/745LS, TX/760LS, TX/770LS, TX/850LS, TX/860LS, TX/950LS, TX/960LS, (PA3465U-1BRS, PABAS069) 10,8V разбор
Toshiba Dynabook AX/530LL
Toshiba Dynabook AX/550LS
Toshiba Dynabook AX/55A
Toshiba Dynabook AX/57A
Toshiba Dynabook AX/630LL
Toshiba Dynabook AX/650LS
Toshiba Dynabook AX/730LS
Toshiba Dynabook AX/740LS
Toshiba Dynabook AX/745LS
Toshiba Dynabook AX/840LS
Toshiba Dynabook AX/940LS
Toshiba Dynabook CX/835LS
Toshiba Dynabook CX/935LS
Toshiba Dynabook TW/750LS
Toshiba Dynabook TX/745LS
Toshiba Dynabook TX/760LS
Toshiba Dynabook TX/770LS
Toshiba Dynabook TX/850LS
Toshiba Dynabook TX/860LS
Toshiba Dynabook TX/950LS
Toshiba Dynabook TX/960LS
Toshiba Equium A100-549
Toshiba Equium A110-233
Toshiba Equium A110-252
Toshiba Equium A110-276
Toshiba Equium M50-192
Toshiba Equium M50-244
Toshiba Equium M70-173
Toshiba Equium M70-337
Toshiba Equium M70-339
Toshiba Equium M70-364
Toshiba Satellite A100-204
Toshiba Satellite A100-209
Toshiba Satellite A100-259
Toshiba Satellite A100-295
Toshiba Satellite A100-500
Toshiba Satellite A100-507
Toshiba Satellite A100-508
Toshiba Satellite A100-525
Toshiba Satellite A100-528
Toshiba Satellite A100-533
Toshiba Satellite A100-551
Toshiba Satellite A100-570
Toshiba Satellite A100-649
Toshiba Satellite A100-LE1
Toshiba Satellite A100-LE4
Toshiba Satellite A100-LE6
Toshiba Satellite A100-S2211TD
Toshiba Satellite A100-S2311TD
Toshiba Satellite A100-S3211TD
Toshiba Satellite A100-S8111TD
Toshiba Satellite A100-S8111TD(with Celeron Processors)
Toshiba Satellite A100-S8111TD(with Intel Celeron Processors)
Toshiba Satellite A100-ST1041
Toshiba Satellite A100-ST2311
Toshiba Satellite A100-ST3211
Toshiba Satellite A100-TA1
Toshiba Satellite A105-S101
Toshiba Satellite A105-S101X
Toshiba Satellite A105-S171
Toshiba Satellite A105-S171X
Toshiba Satellite A105-S2021
Toshiba Satellite A105-S2071
Toshiba Satellite A105-S2131
Toshiba Satellite A105-S2201
Toshiba Satellite A105-S2231
Toshiba Satellite A105-S2236
Toshiba Satellite A105-S271
Toshiba Satellite A105-S2712
Toshiba Satellite A105-S2716
Toshiba Satellite A105-S2717
Toshiba Satellite A105-S271X
Toshiba Satellite A105-S2xxx
Toshiba Satellite A105-S361
Toshiba Satellite A105-S3611
Toshiba Satellite A105-S361X
Toshiba Satellite A110-101
Toshiba Satellite A110-142
Toshiba Satellite A110-162
Toshiba Satellite A110-177
Toshiba Satellite A110-178
Toshiba Satellite A110-198
Toshiba Satellite A110-203
Toshiba Satellite A110-212
Toshiba Satellite A110-260
Toshiba Satellite A110-274
Toshiba Satellite A110-275
Toshiba Satellite A110-277
Toshiba Satellite A110-289
Toshiba Satellite A110-294
Toshiba Satellite A110-334
Toshiba Satellite A110-339
Toshiba Satellite A110-358
Toshiba Satellite A110-370
Toshiba Satellite A110-ST1111
Toshiba Satellite A135-S2246
Toshiba Satellite A135-S2256
Toshiba Satellite A135-S2266
Toshiba Satellite A135-S2276
Toshiba Satellite A135-S2286
Toshiba Satellite A135-S2296
Toshiba Satellite A135-S2306
Toshiba Satellite A135-S2326
Toshiba Satellite A135-S2336
Toshiba Satellite A135-S2346
Toshiba Satellite A135-S2356
Toshiba Satellite A135-S2376
Toshiba Satellite A135-S2386
Toshiba Satellite A135-S2396
Toshiba Satellite A135-S4407
Toshiba Satellite A135-S4417
Toshiba Satellite A135-S4427
Toshiba Satellite A135-S4437
Toshiba Satellite A135-S4447
Toshiba Satellite A135-S4457
Toshiba Satellite A135-S4467
Toshiba Satellite A135-S4477
Toshiba Satellite A135-S4478
Toshiba Satellite A135-S4487
Toshiba Satellite A135-S4488
Toshiba Satellite A135-S4499
Toshiba Satellite A135-S4517
Toshiba Satellite A135-S4527
Toshiba Satellite A135-S4637
Toshiba Satellite A80
Toshiba Satellite A80-144
Toshiba Satellite A80-S178TD
Toshiba Satellite A80-SP107
Toshiba Satellite A85
Toshiba Satellite A85-S107
Toshiba Satellite A85-S1071
Toshiba Satellite A85-S1072
Toshiba Satellite M105-S1011
Toshiba Satellite M105-S1021
Toshiba Satellite M105-S10xx
Toshiba Satellite M115-S1061
Toshiba Satellite M115-S1064
Toshiba Satellite M115-S1071
Toshiba Satellite M40-276
Toshiba Satellite M45-S165
Toshiba Satellite M45-S165X
Toshiba Satellite M45-S169
Toshiba Satellite M45-S169X
Toshiba Satellite M50-180
Toshiba Satellite M50-227
Toshiba Satellite M50-228
Toshiba Satellite M50-MX2
Toshiba Satellite M55-S139
Toshiba Satellite M55-S1391
Toshiba Satellite M55-S139X
Toshiba Satellite M55-S1xxx
Toshiba Satellite M70-122
Toshiba Satellite M70-144
Toshiba Satellite M70-147
Toshiba Satellite M70-148
Toshiba Satellite M70-151
Toshiba Satellite M70-152
Toshiba Satellite M70-168
Toshiba Satellite M70-169
Toshiba Satellite M70-175
Toshiba Satellite M70-181
Toshiba Satellite M70-183
Toshiba Satellite M70-186
Toshiba Satellite M70-187
Toshiba Satellite M70-189
Toshiba Satellite M70-194
Toshiba Satellite M70-196
Toshiba Satellite M70-200
Toshiba Satellite M70-204
Toshiba Satellite M70-207
Toshiba Satellite M70-208
Toshiba Satellite M70-212
Toshiba Satellite M70-217
Toshiba Satellite M70-226
Toshiba Satellite M70-236
Toshiba Satellite M70-238
Toshiba Satellite M70-239
Toshiba Satellite M70-258
Toshiba Satellite M70-267
Toshiba Satellite M70-340
Toshiba Satellite M70-343
Toshiba Satellite M70-347
Toshiba Satellite M70-348
Toshiba Satellite M70-354
Toshiba Satellite M70-356
Toshiba Satellite M70-376
Toshiba Satellite M70-394
Toshiba Satellite M70-395
Toshiba Satellite M70-396
Toshiba Satellite M70-396
Toshiba Satellite Pro A100
Toshiba Satellite Pro A100-229
Toshiba Satellite Pro A100-240
Toshiba Satellite Pro A100-262
Toshiba Satellite Pro A100-263
Toshiba Satellite Pro A100-264
Toshiba Satellite Pro A100-518
Toshiba Satellite Pro A100-532
Toshiba Satellite Pro A100-536
Toshiba Satellite Pro A100-545
Toshiba Satellite Pro M40-301
Toshiba Satellite Pro M50-238
Toshiba Satellite Pro M50-240
Toshiba Satellite Pro M50-241
Toshiba Satellite Pro M50-242
Toshiba Satellite Pro M70
Toshiba Satellite Pro M70-125
Toshiba Satellite Pro M70-126
Toshiba Satellite Pro M70-13
Toshiba Satellite Pro M70-134
Toshiba Satellite Pro M70-137
Toshiba Satellite Pro M70-237
Toshiba Satellite Pro M70-325
Toshiba Satellite Pro M70-326
Toshiba Satellite Pro M70-327
Toshiba Satellite Pro M70-331
Toshiba Satellite Pro M70-332
Toshiba Satellite Pro M70-333
K000031910
PA3365U
PA3451U-1BRS
PA3451U-1BRS
PA3457U-1BRS
PA3465U-1BRS
PABAS067
PABAS069
WK543K
