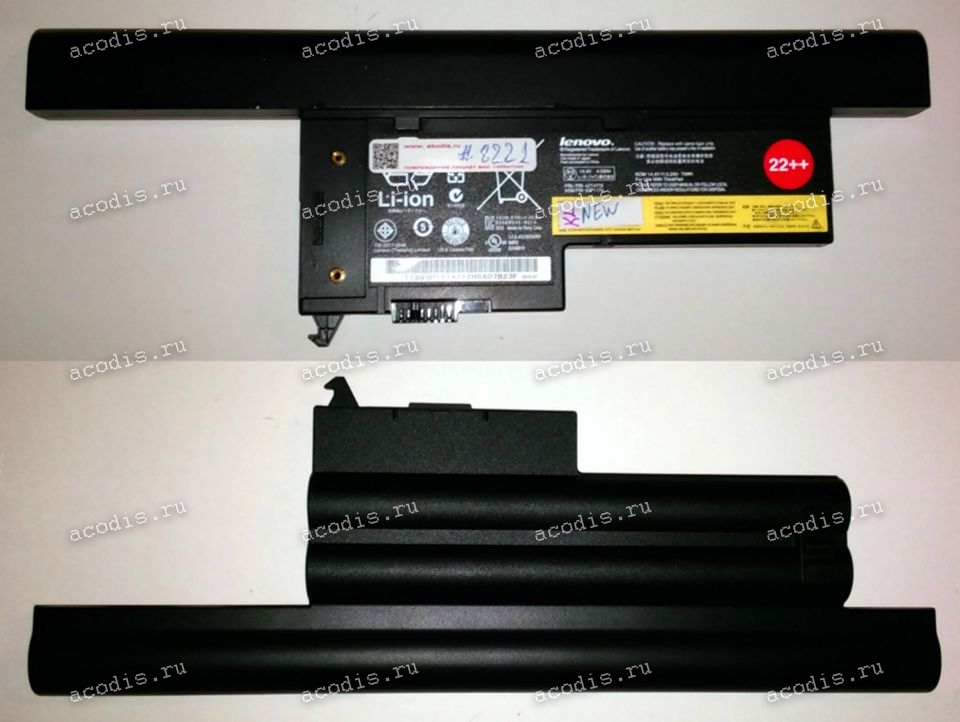

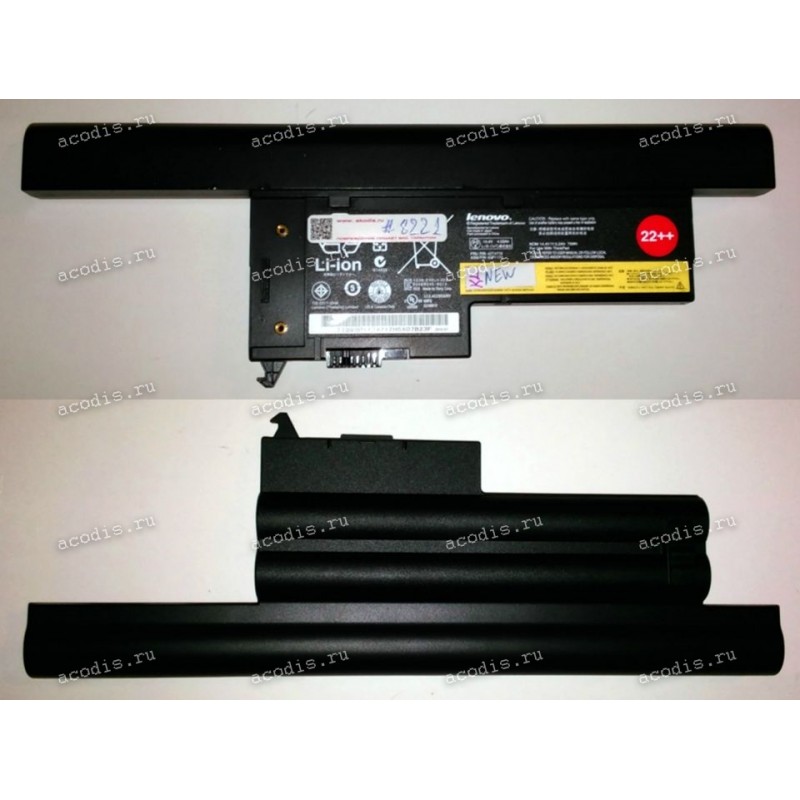

АКБ Lenovo/IBM ThinkPad 22++ R61, R61i, X60, X60s, X61, X61p, X61s (42T4776, 92P1174) 14,8V original NEW
- Производитель:
-
Артикул:00000008221
- 99998
Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) Lenovo/IBM ThinkPad R61, R61i, X60, X60 1706, X60 1707, X60 1708, X60 1709, X60 2509, X60 2510, X60s, X60s 1702, X60s 1703, X60s 1704, X60s 1705, X60s 2507, X60s 2508, X60s 2522, X60s 2524, X60s 2533, X61, X61 7673, X61 7674, X61 7675, X61 7676, X61 7678, X61 7679, X61p, X61s, X61s 15th Anniversary Edition, X61s 7666, X61s 7667, X61s 7668, X61s 7669, X61s 7670, X61s 7671 (42T4776, 92P1174) 14,8V original NEW
NEW original
Распиновка = pinout
RF-20-8 (RFNT3) = CON17 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)
1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
X (3) = ключ, пластиковый пин, перегородка
3 (4) = SMBC, SLC (CLOCK pin) coffee/broun
4 (5) = SMBD, SDA (DATA pin) orange
5 (6) = BATT_TEMP, NTC, Termistor
6 (7) = GND ("-", Ground, VSS) black
7 (8) = GND ("-", Ground, VSS) black
