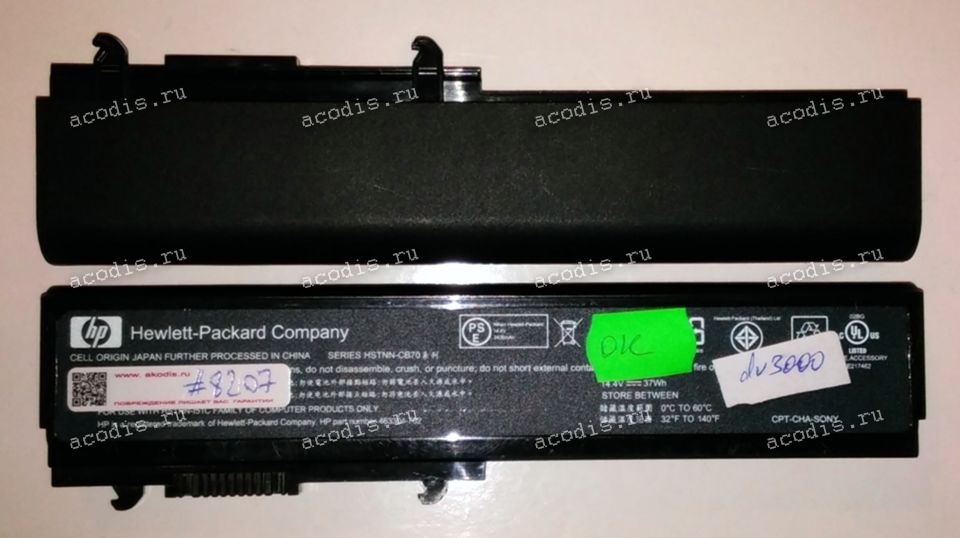

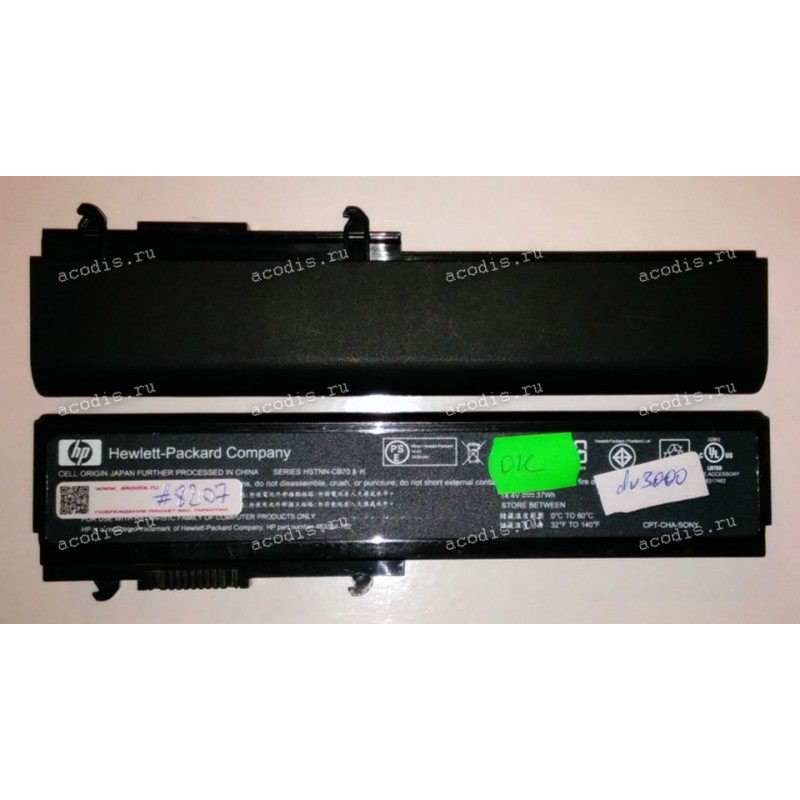

АКБ HP Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 10,8-11,1V Б/У < 50 %

АКБ HP Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 10,8-11,1V Б/У < 50 %

Артикул:
00000008207
Базовая цена
700 р.
-
+
В корзину!
Цена от 5 штук:
600
Наличие мало

Характеристики АКБ HP Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 10,8-11,1V Б/У < 50 %

Из разобранных аппаратов

Распиновка = pinout

RF-20-8 (RFNT3) = CON8 (HWG-BTS-10A = HWG FBS-1000) (схема - разрезами контактов вверх и к себе - слева направо)

1 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

2 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

3 = SMBD, SDA (DATA pin) orange

4 = SMBC, SLC (CLOCK pin) coffee/broun

5 = BAT_ID, BIN

6 = BATT_TEMP, Termistor

7 = GND ("-", Ground, VSS) black

8 = GND ("-", Ground, VSS) black

Описание: АКБ HP Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 10,8-11,1V Б/У < 50 %

Аккумуляторная перезаряжаемая батарея (Main replacement rechargeable Battery) HP Pavilion dv3000, dv3100, dv3500, dv3600, dv3700 (463305-341, 463305-361, 463305-751, 468816-001, HSTNN-151C, HSTNN-CB70, HSTNN-CB71, HSTNN-i51C, HSTNN-OB71, HSTNN-XB70, HSTNN-XB71) 10,8-11,1V Б/У < 50 %
HP Pavilion dv3000/CT HP Pavilion dv3000 Series HP Pavilion dv3001TX HP Pavilion dv3002TX HP Pavilion dv3003TX HP Pavilion dv3004TX HP Pavilion dv3005TX HP Pavilion dv3006TX HP Pavilion dv3007TX HP Pavilion dv3008TX HP Pavilion dv3009TX HP Pavilion dv3010TX HP Pavilion dv3011TX HP Pavilion dv3012TX HP Pavilion dv3013TX HP Pavilion dv3014TX HP Pavilion dv3015TX HP Pavilion dv3016TX HP Pavilion dv3017TX HP Pavilion dv3018TX HP Pavilion dv3019TX HP Pavilion dv3020TX HP Pavilion dv3021TX HP Pavilion dv3022TX HP Pavilion dv3023TX HP Pavilion dv3024TX HP Pavilion dv3025TX HP Pavilion dv3026TX HP Pavilion dv3027TX HP Pavilion dv3028TX HP Pavilion dv3029TX HP Pavilion dv3030TX HP Pavilion dv3100 HP Pavilion dv3101tx HP Pavilion dv3102tx HP Pavilion dv3103tx HP Pavilion dv3104tx HP Pavilion dv3105tx HP Pavilion dv3106tx HP Pavilion dv3107tx HP Pavilion dv3108tx HP Pavilion dv3109tx HP Pavilion dv3110tx HP Pavilion dv3111tx HP Pavilion dv3112tx HP Pavilion dv3113tx HP Pavilion dv3114tx HP Pavilion dv3115tx HP Pavilion dv3116tx HP Pavilion dv3117tx HP Pavilion dv3118tx HP Pavilion dv3119tx HP Pavilion dv3120tx HP Pavilion dv3500ea HP Pavilion dv3500en HP Pavilion dv3500er HP Pavilion dv3500 HP Pavilion dv3500t HP Pavilion dv3501tx HP Pavilion dv3502tx HP Pavilion dv3503tx HP Pavilion dv3504tx HP Pavilion dv3505ea HP Pavilion dv3505tx HP Pavilion dv3505xx HP Pavilion dv3506la HP Pavilion dv3506tx HP Pavilion dv3507ea HP Pavilion dv3507tx HP Pavilion dv3508br HP Pavilion dv3508tx HP Pavilion dv3509tx HP Pavilion dv3510er HP Pavilion dv3510nr HP Pavilion dv3510tx HP Pavilion dv3511tx HP Pavilion dv3512tx HP Pavilion dv3513tx HP Pavilion dv3514tx HP Pavilion dv3515ee HP Pavilion dv3515ef HP Pavilion dv3515ei HP Pavilion dv3515tx HP Pavilion dv3516tx HP Pavilion dv3517tx HP Pavilion dv3518tx HP Pavilion dv3519tx HP Pavilion dv3520ea HP Pavilion dv3520er HP Pavilion dv3520tx HP Pavilion dv3521tx HP Pavilion dv3522tx HP Pavilion dv3523tx HP Pavilion dv3524tx HP Pavilion dv3525ef HP Pavilion dv3525tx HP Pavilion dv3526tx HP Pavilion dv3527tx HP Pavilion dv3528tx HP Pavilion dv3529tx HP Pavilion dv3530es HP Pavilion dv3530et HP Pavilion dv3530tx HP Pavilion dv3531tx HP Pavilion dv3532tx HP Pavilion dv3533tx HP Pavilion dv3534tx HP Pavilion dv3535tx HP Pavilion dv3536tx HP Pavilion dv3537tx HP Pavilion dv3538tx HP Pavilion dv3539tx HP Pavilion dv3540es HP Pavilion dv3540tx HP Pavilion dv3541tx HP Pavilion dv3542tx HP Pavilion dv3543tx HP Pavilion dv3544tx HP Pavilion dv3545ei HP Pavilion dv3545tx HP Pavilion dv3550ee HP Pavilion dv3550eg HP Pavilion dv3550el HP Pavilion dv3550eo HP Pavilion dv3550ep HP Pavilion dv3550es HP Pavilion dv3550ez HP Pavilion dv3560ep HP Pavilion dv3560ev HP Pavilion dv3570ei HP Pavilion dv3600 HP Pavilion dv3600eg HP Pavilion dv3600t CTO HP Pavilion dv3601tx HP Pavilion dv3603tx HP Pavilion dv3604tx HP Pavilion dv3606tx HP Pavilion dv3608tx HP Pavilion dv3610ea HP Pavilion dv3610tx HP Pavilion dv3611tx HP Pavilion dv3613tx HP Pavilion dv3617tx HP Pavilion dv3618tx HP Pavilion dv3620ef HP Pavilion dv3625ei HP Pavilion dv3627tx HP Pavilion dv3628tx HP Pavilion dv3629tx HP Pavilion dv3630eg HP Pavilion dv3630tx HP Pavilion dv3631tx HP Pavilion dv3632tx HP Pavilion dv3633tx HP Pavilion dv3634tx HP Pavilion dv3635tx HP Pavilion dv3650eg HP Pavilion dv3699ef HP Pavilion dv3700
463305-341 463305-361 463305-751 468816-001 HSTNN-151C HSTNN-CB70 HSTNN-CB71 HSTNN-i51C HSTNN-OB71 HSTNN-XB70 HSTNN-XB71 KG297AA NBP6A93B1
