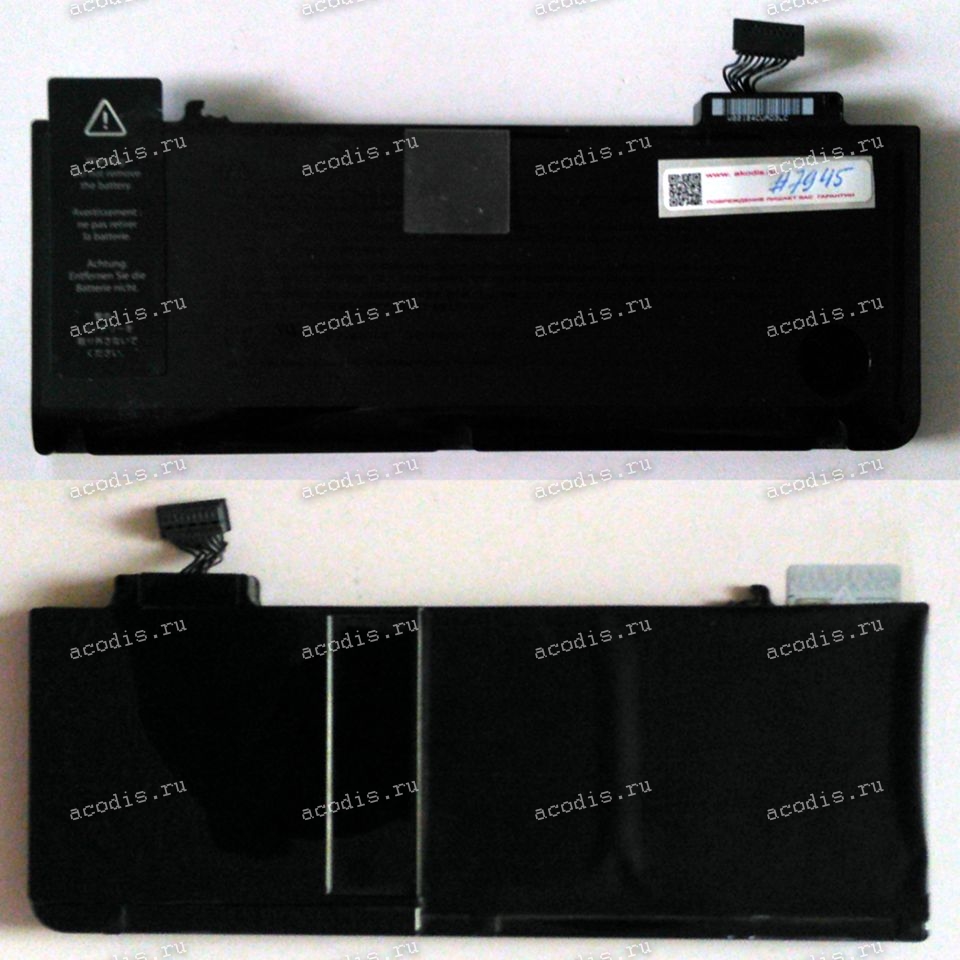

АКБ Apple MacBook Pro 13" A1278, A1322 (Mid 2009 - Mid 2012)

Аналоги

020-6764-A 661-5229 661-5557 MC700LL/A MC724LL/A 3ICP5/69/71-2 020-6547-A, 661-5229, 661-5557, A1278, A1322, MB990LL/A, MB991LL/A

Модели подходящих товаров

Apple MacBook Pro 13 A1278 Mid 2009 - Mid 2012 Apple MacBook Pro 13 A1322 Mid 2009 - Mid 2012 Apple MacBook Pro 13 MB990LL/ Apple MacBook Pro 13 MB991LL/A Apple MacBook Pro 13 MC374LL/A Apple MacBook Pro 13 MC375LL/A Apple MacBook Pro 13 MC700 Apple MacBook Pro 13 MC700B/ Apple MacBook Pro 13 MC700E/ Apple MacBook Pro 13 MC700J/ Apple MacBook Pro 13 MC700LL/A Apple MacBook Pro 13 MC700TA/ Apple MacBook Pro 13 MC700X/ Apple MacBook Pro 13 MC700ZP/ Apple MacBook Pro 13 MC724 Apple MacBook Pro 13 MC724B/ Apple MacBook Pro 13 MC724E/ Apple MacBook Pro 13 MC724J/ Apple MacBook Pro 13 MC724LL/A Apple MacBook Pro 13 MC724TA/ Apple MacBook Pro 13 MC724X/ Apple MacBook Pro 13 MC724ZP/ Apple MacBook Pro 13 MD313LL/ Apple MacBook Pro: MB990LLA 13-inch, MB991LLA 13-inch, MC024/A 17-inch, MC024CH/A 17-inch, MC024J/A 17-inch, MC024LL/A 17-inch, MC024TA/A 17-inch, MC024X/A 17-inch, MC024ZP/A 17-inch

Из разобранных аппаратов

Распиновка = pinout

Разъём контактами вниз, кабелем к себе, слева направо

1 = GND ("-", Ground, VSS) black

2 = GND ("-", Ground, VSS) black

3 = GND ("-", Ground, VSS) black

4 = SMBC, SLC (CLOCK pin) coffee/broun

5 = SP, SYS PRES, SysPres, BI, EN (Enable, System present pin, low active)

6 = SMBD, SDA (DATA pin) orange

7 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

8 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red

9 = VIN ("+", Vin, VIM, VBAT, VBATT, VCC, VDD) red
